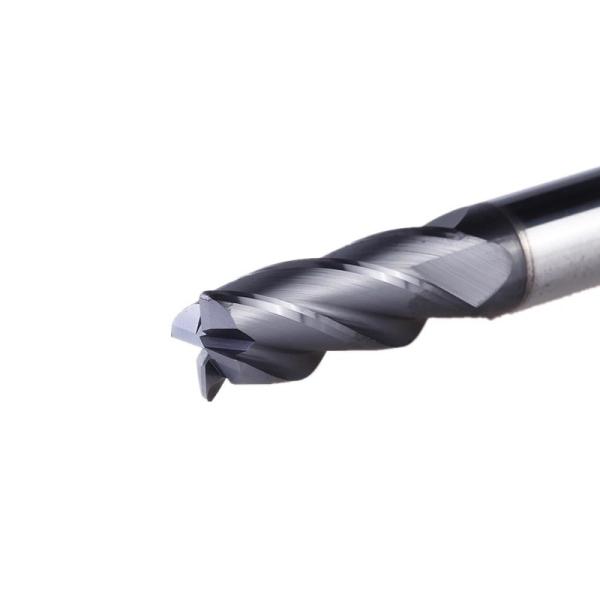

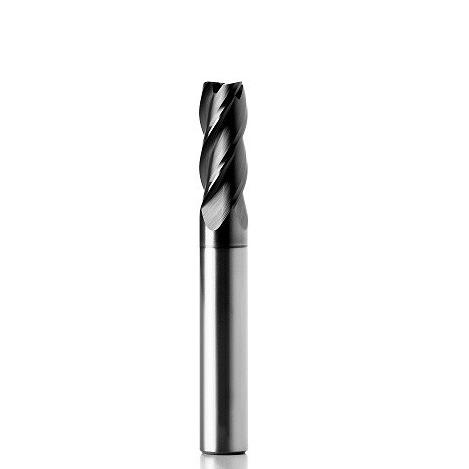

4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank
Specifications
Brand Name :
BABOS
Model Number :
BBS6008020080604F
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Packaging Details :
Plastic Box
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Supply Ability :
20,000PCS per month
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Helix Angle :
35 Degrees
Flute Number :
4
Coating/Finish Type :
AITiN
Shank Diameter :
8mm
Cut Length :
20mm
Cut Diameter :
8mm
Machine Type :
Finish Machining, Roughing Machining
Overall Length :
60mm
Description

4 Flute 35 Degree Helix Angle AITiN Coated Speed Steel End Mill 8mm Shank

4 Flute Steel End Mill 35 Degree Helix Angle AITiN Coated End Mills For Steel 8mm Shank

Product Description:

Featuring four flutes and a cut length of 20mm, our Carbide End Mill is designed to handle a variety of materials with ease. The end mill is made from tungsten carbide, providing the durability and reliability you need for even the toughest jobs.

Features:

  • Product Name: Carbide End Mill
  • Shank Diameter: 8mm
  • Coating/Finish Type: AITiN
  • Machine Type: Finish Machining, Roughing Machining
  • Overall Length: 60mm

Technical Parameters:

Machine Type Finish Machining, Roughing Machining
Flute Number 4
Helix Angle 35 Degrees
Shank Diameter 8mm
Overall Length 60mm
Customize Available
Sample Order Accepted
Coating/Finish Type AITiN

Applications:

The tool is versatile and can be used for a variety of purposes such as side milling, slot milling, step milling, drilling and more. This makes it a great tool to have in your arsenal for various machining needs.

Whether you need to create slots, drill precise holes, or complete some other machining task, this tool is up for the challenge. Its flexibility and reliability make it a great choice for machinists at all skill levels.

Products Specifications

HRC60 Carbide 4 Flutes Flat End Mill
Standard Length Coating:AlTiN
HRC 60°
Cut Dia.
(mm)		 Cut Length.
(mm)		 Shank Dia.
(mm)		 Overall Length.
(mm)		 Flutes Helix
Angle		 Order No.
D Lc d L
3 8 3 50 4 35° BBS6003008030504 F
1 3 4 50 4 35° BBS6001003040504 F
1.5 4 4 50 4 35° BBS6001504040504 F
2 6 4 50 4 35° BBS6002006040504 F
2.5 7 4 50 4 35° BBS6002507040504 F
3 8 4 50 4 35° BBS6003008040504 F
4 10 4 50 4 35° BBS6004010040504 F
5 13 5 50 4 35° BBS6005013050504 F
5 13 6 50 4 35° BBS6005013060504 F
6 15 6 50 4 35° BBS6006015060504 F
7 18 8 60 4 35° BBS6007018080604 F
8 20 8 60 4 35° BBS6008020080604 F
10 25 10 75 4 35° BBS6010025100754 F
12 30 12 75 4 35° BBS6012030120754 F
14 35 14 80 4 35° BBS6014035140804 F
14 45 14 100 4 35° BBS6014045141004 F
16 45 16 100 4 35° BBS6016045161004 F
18 45 18 100 4 35° BBS6018045181004 F
20 45 20 100 4 35° BBS6020045201004 F
Extended Length
HRC 60°
Cut Dia.
(mm)		 Cut Length.
(mm)		 Shank Dia.
(mm)		 Overall Length.
(mm)		 Flutes Helix
Angle		 Order No.
D Lc d L
4 16 4 75 4 35° BBS6004016040754 F
4 20 4 100 4 35° BBS6004020041004 F
5 20 5 75 4 35° BBS6005020050754 F
5 25 5 100 4 35° BBS6005025051004 F
6 20 6 75 4 35° BBS6006020060754 F
6 30 6 100 4 35° BBS6006030061004 F
6 40 6 150 4 35° BBS6006040061504 F
8 25 8 75 4 35° BBS6008025080754 F
8 35 8 100 4 35° BBS6008035081004 F
8 50 8 150 4 35° BBS6008050081504 F
10 40 10 100 4 35° BBS6010040101004 F
10 50 10 150 4 35° BBS6010050101504 F
12 45 12 100 4 35° BBS6012045121004 F
12 55 12 150 4 35° BBS6012055121504 F
14 60 14 150 4 35° BBS6014060141504 F
16 60 16 150 4 35° BBS6016060161504 F
18 60 18 150 4 35° BBS6018060181504 F
20 70 20 150 4 35° BBS6020070201504 F
