SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4 Shank
Specifications
Brand Name :
BABOS
Model Number :
SL-4
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
2-4 weeks
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Taper Shape With Radius End
Cut Diameter :
1/2 inch
Cut Length :
1-1/8 inch
Shank Diameter :
1/4 inch
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1
Max Rpm :
50,000
Description

SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4" Shank

Description:

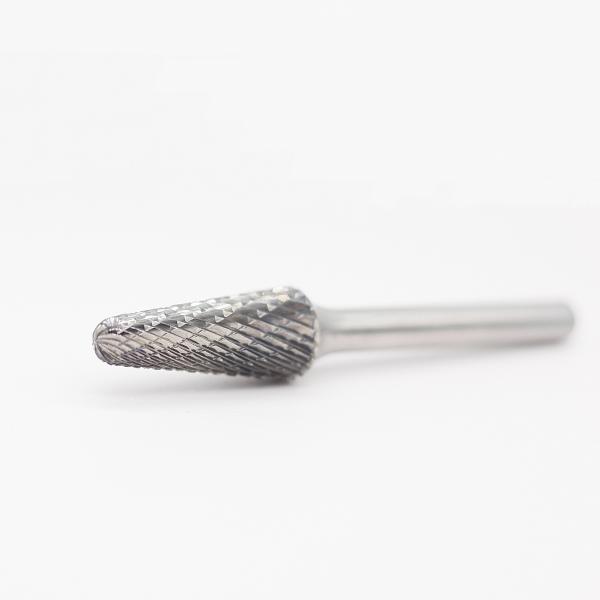

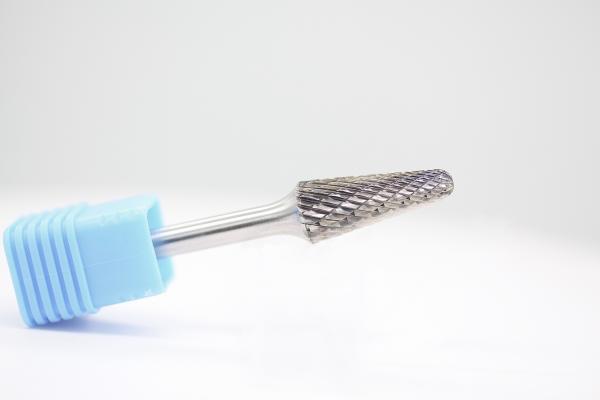

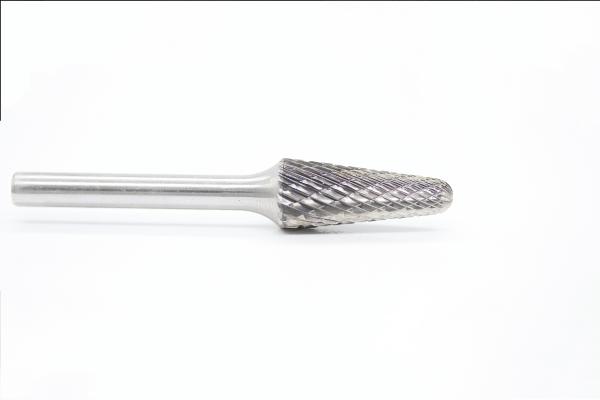

The SL-4 tungsten carbide burr is a taper-shaped rotary tool with a radius end, designed for precision work such as grinding, deburring, and shaping in tight spaces or along curved surfaces. The tapered body with a rounded tip makes it versatile for detailed work, particularly on materials like metals, wood, plastics, and ceramics.

The SL-4 tungsten carbide burr is commonly used in industries like metalworking, woodworking, automotive, and aerospace. It works with high-speed die grinders and rotary tools, offering a balance of precision and power for detailed work on tough materials.

SL-4 Tungsten Carbide Burr Taper Shape With Radius End

SL-4 Tungsten Carbide Burr Taper Shape With Radius End Double Cut With 1/4

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:1/2"

Length of Flute: 1-1/8"

Shank Diameter: 1/4"

OAL: 3"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type L Carbide Burrs Both in Metric and Inch Standard:

Metric Standard
Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 3 13 38 8° L0313 Solid
5 13 38 10° L0513 Brazed
6 13 48 10° L0613 Brazed
6 6 16 51 14° L0616 Brazed
8 22 70 14° L08254 Brazed
10 25 70 14° L1025 Brazed
12 28 73 14° L1228 Brazed
16 33 78 14° L1633 Brazed
19 38 83 14° L1938 Brazed
8 12 28 73 14° L1228 Brazed
16 33 78 14° L1633 Brazed
19 38 83 14° L1938 Brazed
Inch Standard
Shank Dia. (inch) Cutter Dia. (inch) Length of Cut (inch) Overall Length (inch) Included Angle Tool No. The Combination of Head and Shank
d2 d1 l2 l1
1/8'' 1/8'' 1/2'' 1-1/2" 8° SL-42 Solid
1/4'' 1/4'' 5/8" 2" 14° SL-1 Brazed
5/16" 7/8" 2-3/4" 14° SL-2 Brazed
3/8'' 1-1/16" 2-15/16 14° SL-3 Brazed
5/8'' 1-5/16" 3-1/16" 14° SL-5 Brazed
5/8'' 1-7/16" 3-1/5" 14° SL-6 Brazed
3/4'' 1-5/8" 3-3/8" 14° SL-7 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type L burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
