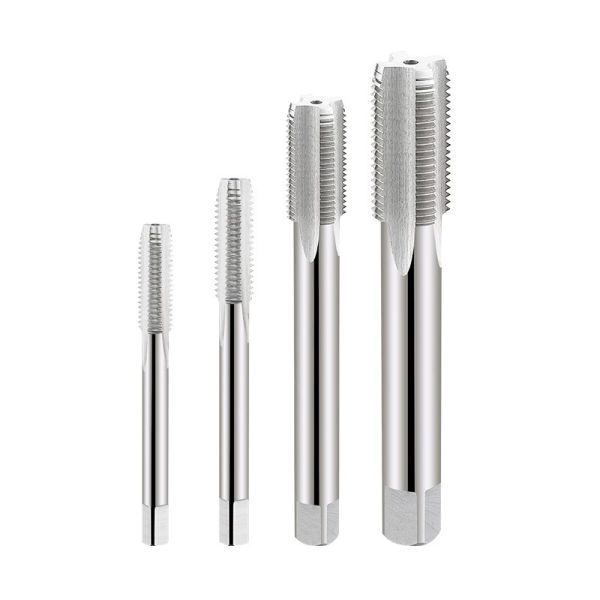

Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Steel Machine Tap M12x1 5 Tap High Speed Straight Fluted Tap 4 Flutes
Specifications
Brand Name :
BABOS
Model Number :
STM12*1.510022-HSS
Place of Origin :
China
MOQ :
50pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000pcs per month
Delivery Time :
6-8 weeks
Packaging Details :
Plastic Box
Thread Size :
12mm
Thread Pitch :
1.5mm
Overal Length :
100mm
Thread Length :
22mm
Shank Diameter :
9mm
Square Length :
10mm
Square Width :
7mm
Number Of Flutes :
4
Shank Type :
Square End
Surface Treatment :
Bright Finish
Flute Type :
Straight Fluted
Material :
High Speed Steel
Description

M12x 1.5 Straight Fluted Tap High Speed Steel With 4 Flutes For Through Hole And Blind Hole

Product Description:

M12 x 1.5 Thread Tap

The thread size is M12 x 1.5, which refers to the diameter and pitch of the thread. The design of the tap features a spiral flute, which helps with upward chip removal during the tapping process. This is a right-hand thread cutting tap with clear threads that have no burrs, ensuring a smooth and clean finish.

Efficient and Precise Tapping

The fast and accurate tapping achieved by this tap is due to its spiral flute design, which allows for efficient chip removal. This tap is ideal for use in various applications, such as in machine shops, automotive repair, and other mechanical tasks that require precision and speed.

Reliable and Durable

In summary, the M12 x 1.5 thread tap boasts a spiral flute design and right-hand threading for clear and burr-free results. Its fast and accurate tapping makes it a reliable tool for various applications.

Features:

  • Thread Size: M12 * 1.5
  • Thread Length: 22mm
  • Overal Length:100mm
  • Shank Dia.: 9mm
  • Square Length: 10mm
  • Square Width:7mm
  • Material: High Speed Steel
  • Package: 1pcs x Spiral Flute Tap

Technical Parameters:

Product Name: HSS Machine Tap
Thread Pitch: 1.5mm
Shank Type: Square End
Number Of Flutes: 4
Flute Type: Straight Flute
Surface Treatment: Bright Finish
Material: High Speed Steel

Applications:

This versatile tool is perfect for process blind holes and hard to manage materials. The design allows for easy drilling and tapping of various materials, including aluminum, die steel, stainless steel, bronze, and even hard plastics.

Its unique features make it an excellent choice for those who need a reliable tool that can handle various jobs. Whether you need to drill a hole in a hard-to-reach place or tap out a thread in a sticky material, this tool is perfect for you.

Specifications:

Thread Size
(mm)		 TPI
(mm)		 Overal Length
(mm)		 Thread Length
(mm)		 Shank Diameter
(mm)		 Square Length
(mm)		 Square Width
(mm)		 No. of Flutes
M4 0.5 63 10 2.8 5 2.1 3
M4.5 0.5 70 12 3.5 6 2.7 3
M5 0.5 70 12 3.5 6 2.7 3
M6 0.75 80 14 4.5 6 3.4 3
M8 1 90 22 6 8 4.9 4
M10 0.75 90 20 7 8 5.5 4
M10 1 90 20 7 8 5.5 4
M10 1.25 100 24 7 8 5.5 4
M12 1 100 22 9 10 7 4
M12 1.25 100 22 9 10 7 4
M12 1.5 100 22 9 10 7 4
M14 1 100 22 11 12 9 4
M14 1.25 100 22 11 12 9 4
M14 1.5 100 22 11 12 9 4
M16 1 100 22 12 12 9 4
M16 1.5 100 22 12 12 9 4
M18 1 110 25 14 14 11 4
M18 1.5 110 25 14 14 11 4
