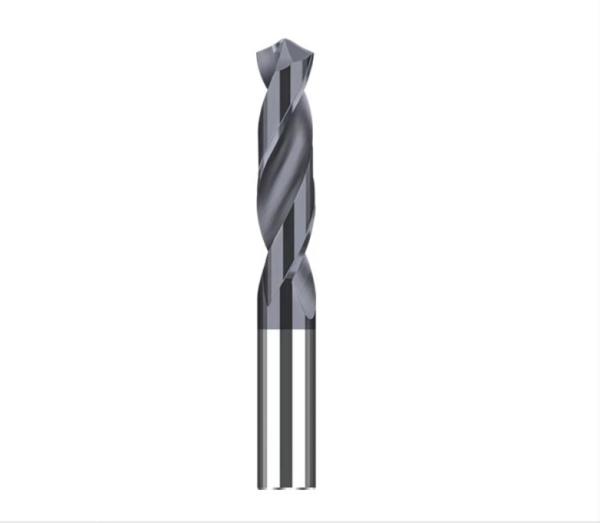

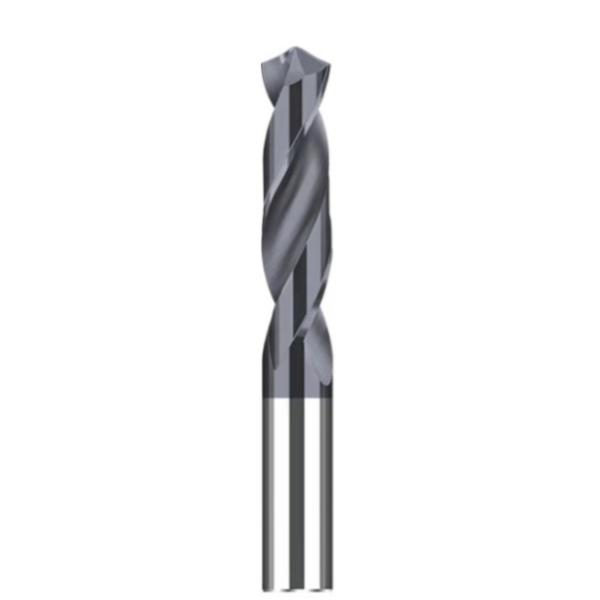

HRC45 3D Solid Carbide Drill Bit Metal 6mm Drilling Hardened Steel With Carbide
HRC45 3D Solid Carbide Drill Bit Metal 6mm Drilling Hardened Steel With Carbide
HRC45 3D Solid Carbide Drill Bit Metal 6mm Drilling Hardened Steel With Carbide
HRC45 3D Solid Carbide Drill Bit Metal 6mm Drilling Hardened Steel With Carbide
Specifications
Brand Name :
BABOS
Model Number :
BBSTD3D45060
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,000PCS per month
Delivery Time :
6-8 Weeks
Packaging Details :
Plastic Box
Cut Diameter :
6mm
Cut Length :
28mm
Shank Diameter :
6mm
Overall Length :
66mm
Material :
Solid Carbide
Coating/Finish Type :
AITiN
Machine Type :
CNC machines
Grade of Coating :
YG10X with 10% Co content and 0.8um grain size
Application :
centering and countersinking on CNC machines
Tolerance :
0.000mm~-0.050mm
Customize :
Available
Number of Flutes :
2
Description

HRC45 3D Solid Carbide Twist Drill For Metal 6mm*28mm*6mm With 66mm Overal Length

Product Description:

HRC45 3D Solid Carbide Twist Drill is a high-performance drilling tool known for its versatility and precision and used for gray cast iron, ductile iron, stainless steel,alloy steel, and other common materials processing.

Features:

  • Product Name:HRC45 3D Solid Carbide Twist Drill
  • Material: Tungsten Carbide
  • Application/Usage: Metal drilling
  • Applicable Materials: gray cast iron, ductile iron, stainless steel,alloy steel, and other common materials

Technical Parameters:

Product Material Tungsten Carbide
Flute Number 2
Coating/Finish Type AITiN
Tolerance 0.000mm~-0.050mm
Machine Type CNC machines
Customize Available
OEM Available
Sample Order Accepted

Product Specifications:

HRC45 3D Solid Carbide Drill Bit Metal 6mm Drilling Hardened Steel With Carbide

HRC45 Solid Carbide Twist Drill(3D)
HRC 45°:Raw Material: Use YG10X with 10% Co content and 0.8um grain size；
Standard Length Coating:AItiN
HRC 45°		 Standard Length Coating:AItiN
HRC 45°
Cut Dia. Cut Length. Shank Dia. Overal Length. Flutes Order No. Cut Dia. Cut Length. Shank Dia. Overal Length. Flutes Order No.
D(mm) Lc(mm) d(mm) L(mm) D(mm) Lc(mm) d(mm) L(mm)
1 12 3 42 2 BBSTD3D45010 10.1 51 11 95 2 BBSTD3D45101
1.1 2 BBSTD3D45011 10.2 2 BBSTD3D45102
1.2 2 BBSTD3D45012 10.3 2 BBSTD3D45103
1.3 2 BBSTD3D45013 10.4 2 BBSTD3D45104
1.4 2 BBSTD3D45014 10.5 2 BBSTD3D45105
1.5 2 BBSTD3D45015 10.6 2 BBSTD3D45106
1.6 2 BBSTD3D45016 10.7 2 BBSTD3D45107
1.7 2 BBSTD3D45017 10.8 2 BBSTD3D45108
1.8 2 BBSTD3D45018 10.9 2 BBSTD3D45109
1.9 2 BBSTD3D45019 11 2 BBSTD3D45110
2 2 BBSTD3D45020 11.1 54 12 102 2 BBSTD3D45111
2.1 14 3 50 2 BBSTD3D45021 11.2 2 BBSTD3D45112
2.2 2 BBSTD3D45022 11.3 2 BBSTD3D45113
2.3 2 BBSTD3D45023 11.4 2 BBSTD3D45114
2.4 2 BBSTD3D45024 11.5 2 BBSTD3D45115
2.5 2 BBSTD3D45025 11.6 2 BBSTD3D45116
2.6 2 BBSTD3D45026 11.7 2 BBSTD3D45117
2.7 2 BBSTD3D45027 11.8 2 BBSTD3D45118
2.8 2 BBSTD3D45028 11.9 2 BBSTD3D45119
2.9 2 BBSTD3D45029 12 2 BBSTD3D45120
3 2 BBSTD3D45030 12.1 57 13 102 2 BBSTD3D45121
3.1 20 4 60 2 BBSTD3D45031 12.2 2 BBSTD3D45122
3.2 2 BBSTD3D45032 12.3 2 BBSTD3D45123
3.3 2 BBSTD3D45033 12.4 2 BBSTD3D45124
3.4 2 BBSTD3D45034 12.5 2 BBSTD3D45125
3.5 2 BBSTD3D45035 12.6 2 BBSTD3D45126
3.6 2 BBSTD3D45036 12.7 2 BBSTD3D45127
3.7 2 BBSTD3D45037 12.8 2 BBSTD3D45128
3.8 2 BBSTD3D45038 12.9 2 BBSTD3D45129
3.9 2 BBSTD3D45039 13 2 BBSTD3D45130
4 2 BBSTD3D45040 13.1 60 14 107 2 BBSTD3D45131
4.1 24 5 62 2 BBSTD3D45041 13.2 2 BBSTD3D45132
4.2 2 BBSTD3D45042 13.3 2 BBSTD3D45133
4.3 2 BBSTD3D45043 13.4 2 BBSTD3D45134
4.4 2 BBSTD3D45044 13.5 2 BBSTD3D45135
4.5 2 BBSTD3D45045 13.6 2 BBSTD3D45136
4.6 2 BBSTD3D45046 13.7 2 BBSTD3D45137
4.7 2 BBSTD3D45047 13.8 2 BBSTD3D45138
4.8 2 BBSTD3D45048 13.9 2 BBSTD3D45139
4.9 2 BBSTD3D45049 14 2 BBSTD3D45140
5 2 BBSTD3D45050 14.1 62 15 111 2 BBSTD3D45141
5.1 28 6 66 2 BBSTD3D45051 14.2 2 BBSTD3D45142
5.2 2 BBSTD3D45052 14.3 2 BBSTD3D45143
5.3 2 BBSTD3D45053 14.4 2 BBSTD3D45144
5.4 2 BBSTD3D45054 14.5 2 BBSTD3D45145
5.5 2 BBSTD3D45055 14.6 2 BBSTD3D45146
5.6 2 BBSTD3D45056 14.7 2 BBSTD3D45147
5.7 2 BBSTD3D45057 14.8 2 BBSTD3D45148
5.8 2 BBSTD3D45058 14.9 2 BBSTD3D45149
5.9 2 BBSTD3D45059 15 2 BBSTD3D45150
6 2 BBSTD3D45060 15.1 64 16 115 2 BBSTD3D45151
6.1 34 7 74 2 BBSTD3D45061 15.2 2 BBSTD3D45152
6.2 2 BBSTD3D45062 15.3 2 BBSTD3D45153
6.3 2 BBSTD3D45063 15.4 2 BBSTD3D45154
6.4 2 BBSTD3D45064 15.5 2 BBSTD3D45155
6.5 2 BBSTD3D45065 15.6 2 BBSTD3D45156
6.6 2 BBSTD3D45066 15.7 2 BBSTD3D45157
6.7 2 BBSTD3D45067 15.8 2 BBSTD3D45158
6.8 2 BBSTD3D45068 15.9 2 BBSTD3D45159
6.9 2 BBSTD3D45069 16 2 BBSTD3D45160
7 2 BBSTD3D45070 16.1 66 17 119 2 BBSTD3D45161
7.1 40 8 79 2 BBSTD3D45071 16.2 2 BBSTD3D45162
7.2 2 BBSTD3D45072 16.3 2 BBSTD3D45163
7.3 2 BBSTD3D45073 16.4 2 BBSTD3D45164
7.4 2 BBSTD3D45074 16.5 2 BBSTD3D45165
7.5 2 BBSTD3D45075 16.6 2 BBSTD3D45166
7.6 2 BBSTD3D45076 16.7 2 BBSTD3D45167
7.7 2 BBSTD3D45077 16.8 2 BBSTD3D45168
7.8 2 BBSTD3D45078 16.9 2 BBSTD3D45169
7.9 2 BBSTD3D45079 17 2 BBSTD3D45170
8 2 BBSTD3D45080 17.1 66 18 123 2 BBSTD3D45171
8.1 43 9 84 2 BBSTD3D45081 17.2 2 BBSTD3D45172
8.2 2 BBSTD3D45082 17.3 2 BBSTD3D45173
8.3 2 BBSTD3D45083 17.4 2 BBSTD3D45174
8.4 2 BBSTD3D45084 17.5 2 BBSTD3D45175
8.5 2 BBSTD3D45085 17.6 2 BBSTD3D45176
8.6 2 BBSTD3D45086 17.7 2 BBSTD3D45177
8.7 2 BBSTD3D45087 17.8 2 BBSTD3D45178
8.8 2 BBSTD3D45088 17.9 2 BBSTD3D45179
8.9 2 BBSTD3D45089 18 2 BBSTD3D45180
9 2 BBSTD3D45090 18.1 70 19 127 2 BBSTD3D45181
9.1 47 10 89 2 BBSTD3D45091 18.2 2 BBSTD3D45182
9.2 2 BBSTD3D45092 18.5 2 BBSTD3D45185
9.3 2 BBSTD3D45093 19 2 BBSTD3D45190
9.4 2 BBSTD3D45094
9.5 2 BBSTD3D45095 19.1 70 20 131 2 BBSTD3D45191
9.6 2 BBSTD3D45096 19.2 BBSTD3D45192
9.7 2 BBSTD3D45097 19.5 BBSTD3D45195
9.8 2 BBSTD3D45098 19.7 BBSTD3D45197
9.9 2 BBSTD3D45099 20 BBSTD3D45120
10 2 BBSTD3D45100
