Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Shaping Cylindrical Burr Radius End 3/8 × 3/4 Tool Die Grinder Tungsten Carbide Bits
Specifications
Brand Name :
BABOS
Model Number :
SC-3
Place of Origin :
China
MOQ :
20pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10,0000pcs per month
Delivery Time :
2-4 weeks
Packaging Details :
Plastic Box
Material :
Tungsten Carbide
Shape :
Ball Nosed Cylinder
Cut Diameter :
3/8 inch
Cut Length :
3/4 inch
Shank Diameter :
1/4 inch
Overall Length :
2-1/2 inch
Flute Type :
Standard Double Cut
Suitable For :
Machining Surface Profile of Workpiece
Application :
Deburring, Shaping, and Finishing
Package Quantity :
1 Piece
Max Rpm :
50,000
Description

Carbide Bur SC-3 Cylindrical Radius End 3/8" × 3/4" Tool Die Grinder Bit On 1/4″ Shank

Description:

The SC-3 cylindrical radius end carbide burr is a medium-sized tool in the SC series, featuring a cylindrical shape with a rounded end (radius end). This design makes it particularly effective for grinding, shaping, and contouring tasks where smooth transitions and rounded edges are needed. Like other SC burrs, it is constructed from tungsten carbide, which provides excellent durability and resistance to wear.

Carbide Bur SC-3 Cylindrical Radius End​

Shaping Cylindrical Burr Radius End 3/8

Brand: BABOS

Material: Tungsten Carbide

Cut Diameter:3/8"

Length of Flute: 3/4"

Shank Diameter: 1/4”

OAL: 2-1/2"

Cut Type: Standard Double Cut

Other Available Sizes Related to Type C Carbide Burrs Both in Metric and Inch Standard:

Metric Standard

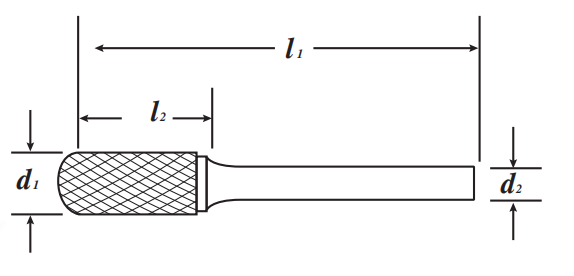

Shank Dia. (mm) Cutter Dia. (mm) Length of Cut (mm) Overall Length (mm) Tool No. The Combination of Head and Shank
d2 d1 l2 l1
3 2 11 38 C0211 Solid
2.5 11 38 C2511 Solid
3 13 38 C0313 Solid
5 13 38 C0513 Brazed
6 13 45 C0613 Brazed
6 6 16 63 C0616 Brazed
6 25 65 C0625 Solid
8 20 65 C0820 Brazed
10 20 70 C1020 Brazed
11 25 70 C1125 Brazed
12 25 70 C1225 Brazed
16 25 70 C1625 Brazed
19 25 70 C1925 Brazed
25 25 70 C2525 Brazed
8 12 25 70 C1225 Brazed
16 25 70 C1625 Brazed
19 25 70 C1925 Brazed
25 25 70 C2525 Brazed
Inch Standard
1/8'' 1/8" 1/2" 1-1/2" SC-42 Solid
1/4" 1/2" 2" SC-51 Brazed
1/4'' 3/16" 9/32" 2'' SC-14 Solid
1/4" 5/8" 2'' SC-1 Solid
1/4" 1" 2'' SC-1L Solid
5/16" 3/4'' 2-1/2" SC-2 Brazed
7/16" 1" 2-3/4" SC-4 Brazed
1/2" 1" 2-3/4" SC-5 Brazed
5/8" 1" 2-3/4" SC-6 Brazed
3/4" 1" 2-3/4" SC-7 Brazed
7/8" 1" 2-3/4" SC-8 Brazed
3/8'' 1" 1" 2-3/4" SC-9 Brazed

Customization:

  1. Please send us the drawings or other important information if you need non-standard carbide burrs.
  2. Please contact us if you need more information about type C burrs or other shapes of burrs.
  3. OEM is avaliable.

Cut Selection Guide:

STANDARD CUT(M)

STANDARD DOUBLE

CUT (X)

 WIDE CUT (C)

FINE CUT

(F)

ALUMINUM

CUT(W)

 DIAMOND CUT(D)
Shaping Cylindrical Burr Radius End 3/8 Shaping Cylindrical Burr Radius End 3/8 Shaping Cylindrical Burr Radius End 3/8 Shaping Cylindrical Burr Radius End 3/8 Shaping Cylindrical Burr Radius End 3/8 Shaping Cylindrical Burr Radius End 3/8
