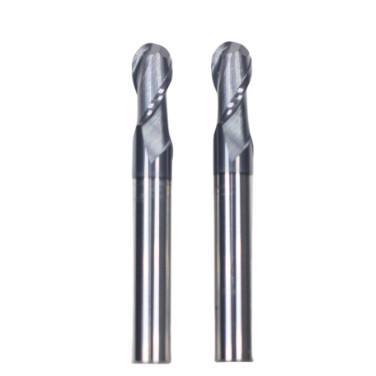

AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron
Specifications
Brand Name :
BABOS
Model Number :
R5*10*20*10*75-2F
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Cut Diameter :
10mm
Overall Length :
20mm
Shank Diameter :
10mm
Coating/Finish Type :
AITiN
Machine Type :
Finish Machining, Roughing Machining
Application :
Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance :
-0.020mm~-0.050mm
Customize :
Available
Description

10mm AITiN Coated Ball End Mill R5*10*20*10*75 2 Flutes For Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron

Product Description:

The 10mm Ball End Mill with AITiN (Aluminum Titanium Nitride) coating is designed for high-performance 3D machining, surface contouring, and finishing tasks across a variety of tough materials. Its ball nose geometry allows for smooth contour milling and excellent surface finishes, while the AITiN coating delivers superior heat and wear resistance.

Key Specifications:

  • Cutting Diameter (Ball Nose): 10mm (R5 radius)
  • Flute Length: 10mm
  • Cutting Length: 20mm
  • Shank Diameter: 10mm
  • Overall Length: 75mm
  • Flutes: 2

Coating:

The AITiN (Aluminum Titanium Nitride) coating enhances the tool’s performance by offering exceptional heat resistance, extended tool life, and excellent wear protection, even under high-speed and dry machining conditions.

AITiN Coated 10mm R5*10*20*10*75 2 Flutes Ball End Mill for Machining Carbon Steel Alloy Steel Stainless Steel Cast Iron

2 Flutes Ball Nose End Mill Specifications
(Carbon Steel, Alloy Steel, Stainless Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2


Applications:

  • Carbon Steel
  • Alloy Steel
  • ool Steel
  • Cast Iron
  • Stainless Steel (general grades)



Ideal Industries:

  • Mold & Die Making
  • Aerospace Component Machining
  • Automotive Part Production
  • General Engineering Applications
  • 3D Surface Finishing Tasks
