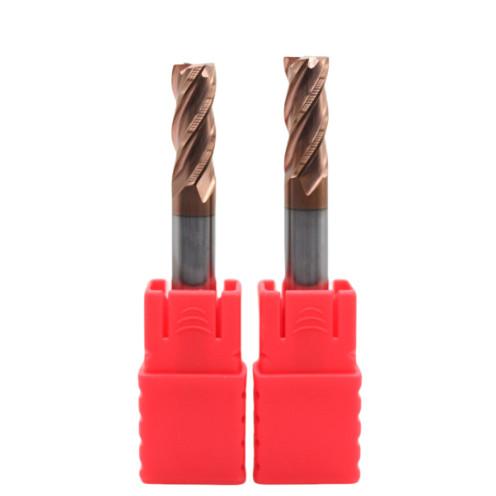

8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
Specifications
Brand Name :
BABOS
Model Number :
8*20*8*60-4F
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Cut Diameter :
8mm
Cut Length :
20mm
Overall Length :
8mm
Flute Number :
4
Coating/Finish Type :
TiAISiN
Sample Order :
Accepted
Customize :
Available
Description

8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron

Product Description:

The 8mm 4-Flute Square End Mill is engineered for precise and efficient machining of tough materials like carbon steel, alloy steel, and cast iron. The TiAlSiN coating provides high hardness, thermal stability, and reduced friction, making it ideal for high-speed dry or semi-dry machining environments.


Specifications:


Product Name 8mm Dia TiAlSiN Coated 4-Flute Carbide Square End Mill
Cutting Diameter (D1) 8mm
Cutting Length (L1) 20mm
Shank Diameter (D2) 8mm
Overall Length (L2) 60mm
Flutes 4 Flutes
Coating TiAlSiN (Titanium Aluminum Silicon Nitride)
Material Ultra-Fine Solid Carbide
Hardness HRC55 Grade
End Type Square End (Flat End)

Features:


  • Sharp square end for 90° corner milling
  • TiAlSiN coating for heat and wear resistance
  • Suitable for both roughing and finishing applications
  • High rigidity and excellent surface finish performance


8mm Dia 8*20*8*60 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron


2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*8*3*50 3 8 3 50 2 / 4
3*12*3*75 3 12 3 75 2 / 4
3*15*3*100 3 15 3 100 2 / 4
1*3*4*50 1 3 4 50 2 / 4
1*3*4*75 1 3 4 75 4
1.5*4*4*50 1.5 4 4 50 2 / 4
1.5*4*4*75 1.5 4 4 75 4
2*5*4*50 2 5 4 50 2 / 4
2*5*4*75 2 5 4 75 4
2.5*7*4*50 2.5 7 4 50 2 / 4
2.5*7*4*75 2.5 7 4 75 4
3*8*4*50 3 8 4 50 2 / 4
3*8*4*75 3 8 4 75 4
3.5*10*4*50 3.5 10 4 50 2 / 4
4*10*4*50 4 10 4 50 2 / 4
4*16*4*75 4 16 4 75 2 / 4
4*20*4*100 4 20 4 100 2 / 4
5*13*5*50 5 13 5 50 2 / 4
5*20*5*75 5 20 5 75 2 / 4
5*25*5*100 5 25 5 100 2 / 4
1*3*6*50 1 3 6 50 2 / 4
1.5*4*6*50 1.5 4 6 50 2 / 4
2*5*6*50 2 5 6 50 2 / 4
2.5*7*6*50 2.5 7 6 50 2 / 4
3*8*6*50 3 8 6 50 2 / 4
3.5*10*6*50 3.5 10 6 50 2 / 4
4*10*6*50 4 10 6 50 2 / 4
4*12*4*50 4 12 4 50 4
4.5*12*6*50 4.5 12 6 50 2 / 4
5*13*6*50 5 13 6 50 2 / 4
5.5*15*6*50 5.5 15 6 50 2 / 4
6*15*6*50 6 15 6 50 2 / 4
6*18*6*50 6 18 6 50 4
6*25*6*75 6 25 6 75 2 / 4
6*30*6*100 6 30 6 100 2 / 4
6*40*6*150 6 40 6 150 2 / 4
7*18*8*60 7 18 8 60 2 / 4
8*20*8*60 8 20 8 60 2 / 4
8*24*8*60 8 24 8 60 4
8*28*8*75 8 28 8 75 2 / 4
8*35*8*100 8 35 8 100 2 / 4
8*50*8*150 8 50 8 150 2 / 4
9*23*10*75 9 23 10 75 2 / 4
10*25*10*75 10 25 10 75 2 / 4
10*30*10*75 10 30 10 75 4
10*40*10*100 10 40 10 100 2 / 4
10*50*10*100 10 50 10 100 4
10*50*10*150 10 50 10 150 2 / 4
11*28*12*75 11 28 12 75 2 / 4
12*30*12*75 12 30 12 75 2 / 4
12*36*12*75 12 36 12 75 4
12*45*12*100 12 45 12 100 2 / 4
12*50*10*100 12 50 12 100 4
12*60*12*150 12 60 12 150 2 / 4
14*35*14*80 14 35 14 80 2 / 4
13*45*14*100 13 45 14 100 2 / 4
14*45*14*100 14 45 14 100 2 / 4
14*60*14*150 14 60 14 150 2 / 4
15*45*16*100 15 45 16 100 2 / 4
16*45*16*100 16 45 16 100 2 / 4
16*60*16*150 16 60 16 150 2 / 4
18*45*18*100 18 45 18 100 2 / 4
18*70*18*150 18 70 18 150 2 / 4
20*45*20*100 20 45 20 100 2 / 4
20*70*20*150 20 70 20 150 2 / 4


Packaging and Shipping:


• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.

• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.

• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.


Notes:


• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.

• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
