8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron
Specifications
Brand Name :
BABOS
Model Number :
R4*8*16*8*150L-2F
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Cut Diameter :
8mm
Cut Length :
16mm
Shank Diameter :
8mm
Overall Length :
150mm
Coating/Finish Type :
TiAISiN
Machine Type :
Finish Machining, Roughing Machining
Application :
Milling And Cutting Of Carbon Steel, Malleable Cast Iron, Alloy Steel, Stainless Steel, Etc.
Tolerance :
-0.015mm~-0.040mm
Customize :
Available
Description

8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron


Product Description:

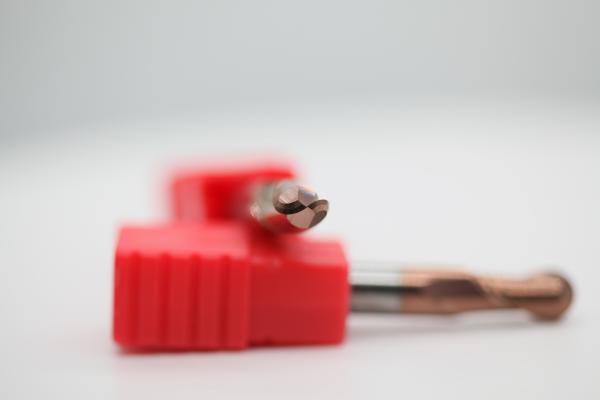

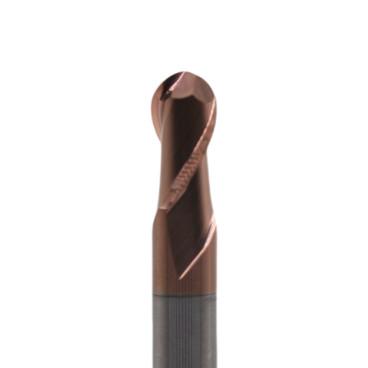

This 8mm Ball Nose End Mill features an extra-long 150mm overall length, making it ideal for deep cavity milling, 3D contouring, and mold & die work where extended reach is required. Crafted from high-quality carbide and finished with a durable TiAlSiN (Titanium Aluminum Silicon Nitride) coating, it ensures exceptional performance and tool life even under high-speed and dry machining conditions.

Specifications:

  • Cutting Diameter (Ball Nose): 8mm (R4 radius)
  • Flute Length: 8mm
  • Cutting Length: 16mm
  • Shank Diameter: 8mm
  • Overall Length: 150mm
  • Flutes: 2

Coating:

The TiAlSiN coating provides superior heat resistance, oxidation protection, and wear resistance—perfect for machining hard materials at high speeds.

Features:

  • Fine-grain carbide construction for toughness and stability
  • TiAlSiN coating for enhanced tool life and cutting performance
  • Ball nose geometry designed for fine surface finishing and complex 3D profiling
  • Extra-long design (150mm) for deep pocket and cavity milling
  • 2-flute configuration optimizes chip removal and reduces cutting resistance

Applications:

  • Mold and die manufacturing
  • Deep cavity and pocket machining
  • Precision machining on carbon steel, alloy steel, cast iron, and other hard metals





8mm Dia R4*8*16*8*150L 2Flutes TiAISiN Carbide Ball Nose End Mill For Carbon Steel Alloy Steel Cast Iron

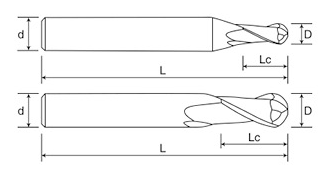

2 Flutes Ball Nose End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
R1.5*6*3*50 3 6 3 50 2
R1.5*6*3*75 3 6 3 75 2
R1.5*6*3*100 3 6 3 100 2
R0.5*2*4*50 1 2 4 50 2
R0.75*3*4*50 1.5 3 4 50 2
R1*4*4*50 2 4 4 50 2
R1.25*5*4*50 2.5 5 4 50 2
R1.5*6*4*50 3 6 4 50 2
R1.75*7*4*50 3.5 7 4 50 2
R2*8*4*50 4 8 4 50 2
R2*8*4*75 4 8 4 75 2
R2*8*4*100 4 8 4 100 2
R0.5*2*4*75 1 2 4 75 2
R0.75*3*4*75 1.5 3 4 75 2
R1*4*4*75 2 4 4 75 2
R1.25*5*4*75 2.5 5 4 75 2
R1.5*6*4*75 3 6 4 75 2
R2.5*10*5*50 5 10 5 50 2
R2.5*10*5*75 5 10 5 75 2
R2.5*10*5*100 5 10 5 100 2
R0.5*2*6*50 1 2 6 50 2
R0.75*3*6*50 1.5 3 6 50 2
R1*4*6*50 2 4 6 50 2
R1.25*5*6*50 2.5 5 6 50 2
R1.5*6*6*50 3 6 6 50 2
R2*8*6*50 4 8 6 50 2
R2.5*10*6*50 5 10 6 50 2
R3*12*6*50 6 12 6 50 2
R3*12*6*75 6 12 6 75 2
R3*12*6*100 6 12 6 100 2
R3*12*6*150 6 12 6 150 2
R3.5*14*8*60 7 14 8 60 2
R4*16*8*60 8 16 8 60 2
R4*16*8*75 8 16 8 75 2
R4*16*8*100 8 16 8 100 2
R4*16*8*150 8 16 8 150 2
R4.5*18*10*75 9 18 10 75 2
R5*20*10*75 10 20 10 75 2
R5*20*10*100 10 20 10 100 2
R5*20*10*150 10 20 10 150 2
R5.5*22*12*75 11 22 12 75 2
R6*24*12*75 12 24 12 75 2
R6*24*12*100 12 24 12 100 2
R6*24*12*150 12 24 12 150 2
R7*28*14*80 14 28 14 80 2
R7*28*14*100 14 28 14 100 2
R7*28*14*150 14 28 14 150 2
R8*32*16*100 16 32 16 100 2
R8*32*16*150 16 32 16 150 2
R9*36*18*100 18 36 18 100 2
R9*36*18*150 18 36 18 150 2
R10*40*20*100 20 40 20 100 2
R10*40*20*150 20 40 20 150 2
