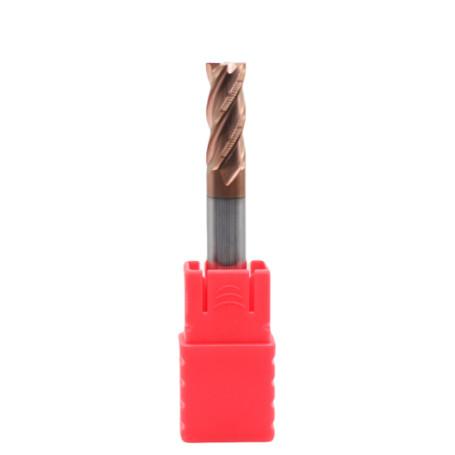

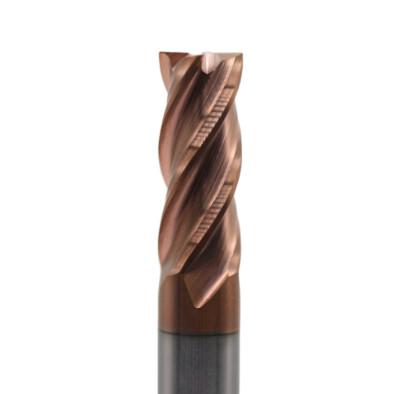

4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron
Specifications
Brand Name :
BABOS
Model Number :
4*10*4*50-4F
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
20,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Cut Diameter :
4mm
Cut Length :
10mm
Overall Length :
4mm
Flute Number :
4
Coating/Finish Type :
TiAISiN
Sample Order :
Accepted
Customize :
Available
Description

4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron

Product Description:

The AITiSiN Coated Flat 4 Flutes Carbide End Mill is a high-performance cutting tool designed for various milling applications.It features a solid carbide construction,providing excellent durability and strength.The 4-flute design allows for efficient chip removal and smooth cutting,making it suitable for high-speed machining.The TiSiN coating enhances the tool's wear resistance and thermal stability,enabling it to perform well in demanding cutting conditions.


Specifications:

  • Cutting Diameter: 4mm
  • Flute Length: 10mm
  • Shank Diameter: 4mm
  • Overall Length: 50mm
  • Flutes: 4
  • Geometry: Square End (Flat End)

Features:

  • Premium carbide material ensures excellent toughness and rigidity
  • TiAlSiN coating extends tool life and enhances performance in demanding cutting conditions
  • 4-flute design offers a balance between strength, chip evacuation, and surface finish
  • Square end geometry for clean slotting, profiling, and face milling
  • Optimized for both roughing and finishing


4mm Dia 4*10*4*50 TiAISiN Coated 4 Flat Flutes Carbide Square End Mill For Carbon Steel Alloy Steel Cast Iron


2/4 Flutes Flat End Mill Specifications
(For Carbon Steel, Alloy Steel, Cast Iron)
Sizes Cut Diameter
D		 Cut Length
Lc		 Shank Diameter
d		 Overall Length
L		 Flutes No.
3*8*3*50 3 8 3 50 2 / 4
3*12*3*75 3 12 3 75 2 / 4
3*15*3*100 3 15 3 100 2 / 4
1*3*4*50 1 3 4 50 2 / 4
1*3*4*75 1 3 4 75 4
1.5*4*4*50 1.5 4 4 50 2 / 4
1.5*4*4*75 1.5 4 4 75 4
2*5*4*50 2 5 4 50 2 / 4
2*5*4*75 2 5 4 75 4
2.5*7*4*50 2.5 7 4 50 2 / 4
2.5*7*4*75 2.5 7 4 75 4
3*8*4*50 3 8 4 50 2 / 4
3*8*4*75 3 8 4 75 4
3.5*10*4*50 3.5 10 4 50 2 / 4
4*10*4*50 4 10 4 50 2 / 4
4*16*4*75 4 16 4 75 2 / 4
4*20*4*100 4 20 4 100 2 / 4
5*13*5*50 5 13 5 50 2 / 4
5*20*5*75 5 20 5 75 2 / 4
5*25*5*100 5 25 5 100 2 / 4
1*3*6*50 1 3 6 50 2 / 4
1.5*4*6*50 1.5 4 6 50 2 / 4
2*5*6*50 2 5 6 50 2 / 4
2.5*7*6*50 2.5 7 6 50 2 / 4
3*8*6*50 3 8 6 50 2 / 4
3.5*10*6*50 3.5 10 6 50 2 / 4
4*10*6*50 4 10 6 50 2 / 4
4*12*4*50 4 12 4 50 4
4.5*12*6*50 4.5 12 6 50 2 / 4
5*13*6*50 5 13 6 50 2 / 4
5.5*15*6*50 5.5 15 6 50 2 / 4
6*15*6*50 6 15 6 50 2 / 4
6*18*6*50 6 18 6 50 4
6*25*6*75 6 25 6 75 2 / 4
6*30*6*100 6 30 6 100 2 / 4
6*40*6*150 6 40 6 150 2 / 4
7*18*8*60 7 18 8 60 2 / 4
8*20*8*60 8 20 8 60 2 / 4
8*24*8*60 8 24 8 60 4
8*28*8*75 8 28 8 75 2 / 4
8*35*8*100 8 35 8 100 2 / 4
8*50*8*150 8 50 8 150 2 / 4
9*23*10*75 9 23 10 75 2 / 4
10*25*10*75 10 25 10 75 2 / 4
10*30*10*75 10 30 10 75 4
10*40*10*100 10 40 10 100 2 / 4
10*50*10*100 10 50 10 100 4
10*50*10*150 10 50 10 150 2 / 4
11*28*12*75 11 28 12 75 2 / 4
12*30*12*75 12 30 12 75 2 / 4
12*36*12*75 12 36 12 75 4
12*45*12*100 12 45 12 100 2 / 4
12*50*10*100 12 50 12 100 4
12*60*12*150 12 60 12 150 2 / 4
14*35*14*80 14 35 14 80 2 / 4
13*45*14*100 13 45 14 100 2 / 4
14*45*14*100 14 45 14 100 2 / 4
14*60*14*150 14 60 14 150 2 / 4
15*45*16*100 15 45 16 100 2 / 4
16*45*16*100 16 45 16 100 2 / 4
16*60*16*150 16 60 16 150 2 / 4
18*45*18*100 18 45 18 100 2 / 4
18*70*18*150 18 70 18 150 2 / 4
20*45*20*100 20 45 20 100 2 / 4
20*70*20*150 20 70 20 150 2 / 4


Packaging and Shipping:


• Packaging:Typically packaged in plastic pipes or boxes to ensure protection during transit.

• Minimum Order Quantity:Varies by supplier,but generally starts from 10 pieces.

• Delivery Time:Usually within 3-5 days for standard sizes after order confirmation.


Notes:


• Before using the carbide end mill,it is recommended to measure the tool deflection and correct it if the accuracy exceeds 0.01mm.

• The tool's performance can be optimized by adjusting cutting parameters such as speed,feed rate,and cutting depth based on the material being machined.
