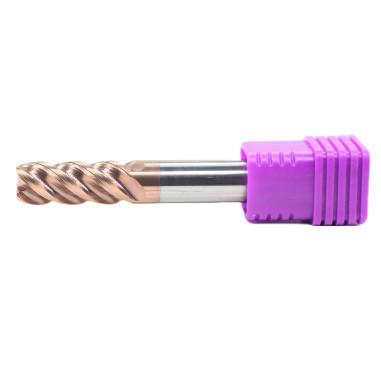

10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron
Specifications
Brand Name :
BABOS
Model Number :
10*25*10*75-4T SP
Place of Origin :
China
MOQ :
10pcs
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
20,000PCS per month
Delivery Time :
3 days for standard products, 1-2weeks for custom products.
Packaging Details :
Plastic Box
Cut Diameter :
10mm
Cut Length :
25mm
Shank Diameter :
10mm
Coating/Finish Type :
SP Bronze
Machine Type :
Finish Machining, Roughing Machining
Application :
Carbon steel alloy steel (<35HRC),Alloy Steel (35-48HRC),Stainless Steels,Gray Cast iron, Ductile Cast Iron (<32HRC)
Tolerance :
0.010mm~0.030mm
Customize :
Available
Description

10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron


Product Description:

This high-performance 4-flute solid carbide milling cutter is engineered for reliable and efficient machining of alloy steel, hardened steel, as well as gray cast iron and ductile cast iron. The advanced SP Bronze coating provides excellent heat resistance and wear protection, making it ideal for demanding cutting environments.


Key Features:

  • Large Chip Flute: U-shaped design with large chip space ensures smooth and efficient chip evacuation.
  • Powerful Anti-Vibration: Unequal pitch and variable helix design effectively reduce vibrations, ensuring smoother machining and providing greater advantages in deep and heavy cutting operations.
  • Hard and Tough Rod Material:Made from ultra-fine tungsten carbide particles, the rod material offers an excellent balance of hardness and toughness, making it suitable for a wide range of applications with outstanding wear resistance.
  • Stable and Wear-Resistant Coating:The coating features high wear resistance, excellent oxidation resistance, low friction coefficient, and thermal stability. With high hardness and low friction, it ensures reliable performance in demanding machining environments.

Product Specifications:

Tool Type Solid Carbide End Mill
Material
Cobalt content 12%, grain size 0.4 μ m, HRA92.5
Coating SP Bronze
Number of Flutes 4
Cutting Diameter (D) 10 mm
Flute Length (L1) 25mm
Shank Diameter 10 mm
Overall Length (L) 75 mm
Helix Angle 44°-45°
Application Carbon steel alloy steel (<35HRC),Alloy Steel (35-48HRC),Stainless Steels,Gray Cast iron, Ductile Cast Iron (<32HRC)
Cooling Method Air Cooling



10*25*10*75*4T 4flutes Milling Cutter For Alloy Steel, Hardened Steel,Gray Cast iron, Ductile Cast Iron

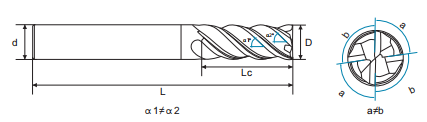

Model		 Specifications
(OEM and customization is acceptable.)
Flutes
Spiral Angle
Groove Profile
Coating
Cut Dia
D		 Cut Length
Lc		 Shank Dia
d		 Overall Length L
3*8*3*50*4T 3 8 3 50 4 44°-45° U slot SP Bronze
3*12*3*50*4T 3 12 3 50 4 44°-45° U slot SP Bronze
3*15*3*50*4T 3 15 3 50 4 44°-45° U slot SP Bronze
4*10*4*50*4T 4 10 4 50 4 44°-45° U slot SP Bronze
4*16*4*50*4T 4 16 4 50 4 44°-45° U slot SP Bronze
4*20*4*75*4T 4 20 4 75 4 44°-45° U slot SP Bronze
6*15*6*50*4T 6 15 6 50 4 44°-45° U slot SP Bronze
6*24*6*75*4T 6 24 6 75 4 44°-45° U slot SP Bronze
6*30*6*75*4T 6 30 6 75 4 44°-45° U slot SP Bronze
8*20*8*60*4T 8 20 8 60 4 44°-45° U slot SP Bronze
8*32*8*75*4T 8 32 8 75 4 44°-45° U slot SP Bronze
8*40*8*100*4T 8 40 8 100 4 44°-45° U slot SP Bronze
10*25*10*75*4T 10 25 10 75 4 44°-45° U slot SP Bronze
10*40*10*100*4T 10 40 10 100 4 44°-45° U slot SP Bronze
10*50*10*100*4T 10 50 10 100 4 44°-45° U slot SP Bronze
12*30*12*75*4T 12 32 12 75 4 44°-45° U slot SP Bronze
12*48*12*100*4T 12 48 12 100 4 44°-45° U slot SP Bronze
12*60*12*100*4T 12 60 12 100 4 44°-45° U slot SP Bronze
14*45*14*100*4T 14 45 14 100 4 44°-45° U slot SP Bronze
14*70*14*150*4T 14 70 14 150 4 44°-45° U slot SP Bronze
16*45*16*100*4T 16 45 16 100 4 44°-45° U slot SP Bronze
16*64*16*150*4T 16 64 16 150 4 44°-45° U slot SP Bronze
16*80*16*150*4T 16 80 16 150 4 44°-45° U slot SP Bronze
18*45*18*100*4T 18 45 18 100 4 44°-45° U slot SP Bronze
18*90*18*150*4T 18 90 18 150 4 44°-45° U slot SP Bronze
20*45*20*100*4T 20 45 20 100 4 44°-45° U slot SP Bronze
20*80*20*150*4T 20 80 20 150 4 44°-45° U slot SP Bronze
20*100*20*200*4T 20 100 20 200 4 44°-45° U slot SP Bronze



Workpiece Material and processing parameters

Workpiece Material ap ae vc
m/min		 fz
mm/z
Carbon steel alloy steel (<35HRC)
 ap≤1.5D ap≤0.15D 180 0.0085D
Alloy Steel (35-48HRC) ap≤1D ae≤0.12D 140 0.0075D
Stainless Steels ap≤1.5D ae≤0.15D 140 0.0075D
Gray Cast iron, Ductile Cast Iron (<32HRC) ap≤1.5D ae≤0.15D 160 0.0075D
