Pp Woven Filter Cloth For Sugar Plants / Waste Water Treatment Plants
Pp Woven Filter Cloth For Sugar Plants / Waste Water Treatment Plants
Pp Woven Filter Cloth For Sugar Plants / Waste Water Treatment Plants
Pp Woven Filter Cloth For Sugar Plants / Waste Water Treatment Plants
Specifications
Brand Name :
DAITTO
Model Number :
Woven Filter Cloth
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000m per week
Delivery Time :
within 20 days
Packaging Details :
standard export package
Material :
PP
Fibers :
polyester, polypropylene, polyamide, PVDF, Saran, PTFE
Diameters :
from 500 to 3000 mm
usage :
Discs & cloths for vacuum & pressure filters
installation :
Easy installation and optimal fit
supply :
Wast Incinerators
Description

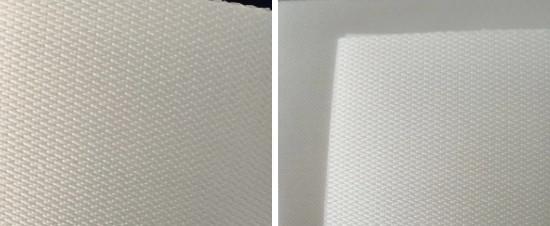

High quality PP woven filter fabric for sugar plants, waste water treatment plants

Description:

PP woven filter cloths
We can make many kinds of filter cloth according to customers’ requirement.
1.matierial:pp,PE or PA(Nylon)
2.structure:plain or twill or satin weave
3.Application:For filter press,leaf filter,disc filter,drum filter or vacuum filter in chemical industry,pharmaceutical industry,metallurgy industry,water treatment,effluent treatment,liquid filtration etc.

Specification:

1) The yarn of PP short fiber is furry. The yarn of PP long fiber is smooth.

2) PP long fiber has higher strength and better air permeability than PP short fiber.

3) The cloth made of PP short is furry and better in powder or pressure filtration.

4) The cloth made of PP long is smooth and good in air permeability. It is suitable for powder filtration.

In our company, there are over 80 kinds of PP long and over 10 kinds of PP short.

According to your requirements, the weave, density and pattern are changeable.

In addition, 858# filter cloth is developed for industry use by ourselves. It is the best filtration material for industries of chemical and pharmaceutical. But it is not suitable for powder filtration.

Model No.

Density/10cm

Breaking Strength(N5X20cm)

Elongation at break (％)

Thickness (MM)

Weight(g/㎡)

Permeability (10-m³/㎡.s)

Warp

Weft

Warp

Weft

Warp

Weft

130

260

126

1500

700

25

23

0.28

140

210

240

226

184

2508

814

19

23

0.42

220

90

260

206

158

2200

1980

38

36

0.46

250

35

621(5*6)

22

14

2900

1950

45

38

0.68

415

16

621(6*6)

20

13

2800

1850

44

37

0.65

360

33

747

22

16

2100

1350

35

20

0.51

250

89

758

20

14

2590

265

37

19

0.61

350

50

740

31

20

3449

1963

26

17

0.71

321

40

208A

26

27

2788

1930

39

29

1.43

410

68

120-7A

23

14

4498

4026

36

28

1.1

620

40

3927A

16

11

3238

2980

31

19

0.91

550

16

4030

Application:

widely used in Detergent,waste incineration,asphalt,spray dryer,coal mill and power plant(desufurization part) industries and so on

FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)


Shanghai Daitto Filtration is one of China Filter Cloth manufacturers, factory and supplies, is making and supplying China polyester filter cloth, nomex aramid filter cloth, pps dust collector filter cloth, p84 dust collector filter cloth, ptfe filter cloth, fiberglass filter cloth, acrylic filter cloth, ptfe laminated filter cloth, high temperature dust collector filter bags with good quality and good prices.
