Specifications
Brand Name :
DAITTO
Model Number :
Liquid Filter Bag
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
30000pcs per day
Delivery Time :
within 15days
Packaging Details :
standard export package
Type :
Standard Felt PP(PO)
Material :
Polypropylene
Size :
1#,2#
Micron :
1-100um
Ring Material :
Plastic Top, Metal Ring
Bag Body Structure :
Welded/Sewn
Usage :
Oil Holding Filter Bags
Package :
standard export package
Description

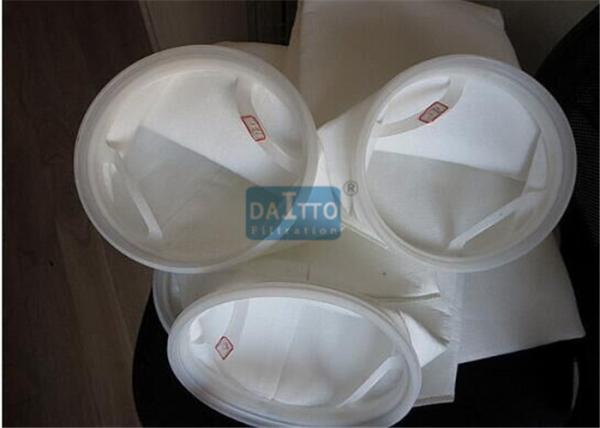

Micron Liquid Filter Bags, Polypropylene Oil Absorbing Filter Bag 7" x 32"/7"x16"

Oil Absorbing Filter Bag(Oil holding filter bag) is made from 100% polypropylene melt-blown microfiber provides greatoil absorbancy.

It is featured with high chemical resistance can absorb unwanted oil.

Description:

Micron Rating (um): 1, 5 10 25 50 75 100
Recommended Operating Pressure Dropz: ≦ 1.5 kg/cm2
Max. Operating Pressure Drop:≦ 2 kg/cm2
Max. Operating Temperature: 80℃ /110℃

Specification:

Liquid filter bag Sheet1:

Filter bag size Max Flow(m3/h) Filter Area(m2) Volume(L) Diameter(inch) Length(inch)
Size 01# 20 0.25 8.00 7 17/16
Size 02# 40 0.5 17.00 7 32/33

Liquid filter bag Sheet 2:

Type Size Bag Body Structure Bag top Structure Micron Rating(um)
Oil Holding Filter Bags 01#,02# Welded/Sewn Plastic Top/Metal Ring 1-100

LCR-123(100 range)
1) With three filter layers
2) The efficiency is no less than 93%, some larger dust
efficiency up to 99%
3) with unique fiber and deep structure, so it can block the
impurities well and high oil absorbency performance
4) have a very low pressure, longer life, more economic.
5) Oil absorbency can be it’s 15-20 times of the bag weight

LCR-525(500 range)
1) With 8-12 filter layers
2) The efficiency is no less than 95%, some larger dust
efficiency up to 99%
3) with unique fiber and multi-layer, so the filter area is bigger, then it can block the impurities well and high oil absorbency performance

4) have a very low pressure, longer life, more economic.
5) Oil absorbency can be its 15-20 times of the bag weight

AGF filter bag
1) With 8-14 filter layers
2) The efficiency is no less than 98%, some larger dust efficiency up to 99.9%
3) With unique fiber and multi-layer, so the filter area is bigger, then it can block the impurities well and high oil absorbency performance
4) Have a very low pressure, longer life, more economic.
5) Oil absorbency can be its 15-20 times of the bag weight

Polypropylene Liquid Filter Bags 7

FAQ:

Q: Are you trading company or manufacturer ?

A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)

Shanghai Daitto Filtration is one of China Liquid filter bag manufacturers, factory and supplies.The strong Liquid needled felt filter bags are suitable for the removal of hard particles from a process stream. Daitto Filter provides Liquid needled felt bags in PO, PE, NOMEX and PTFE in the full range of bag sizes.
