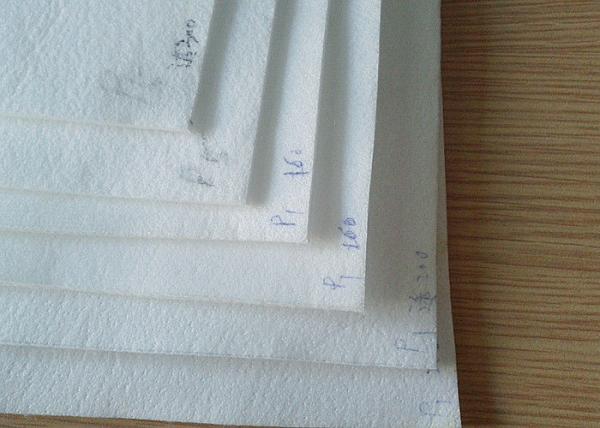

PPS Glass Acrylic Needle Felt Filter Cloth Light Weight For Dust Collector Bag
PPS Glass Acrylic Needle Felt Filter Cloth Light Weight For Dust Collector Bag
Specifications
Brand Name :
DAITTO
Model Number :
Needled Felt Filter Cloth
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000m per week
Delivery Time :
within 15 days
Packaging Details :
standard export package
property :
Nonwoven Needle Felt Filter Cloth for Dust Collector Bag, filtration media
Fiber Name :
ptfe fiber
Working temperature :
a) Continuous: 240 b) Instant: 300
Thickness :
0.81mm-1.12mm
Material :
PTFE fiber/PTFE long thread scrim
Sample :
free
Description

Nonwoven PPS Glass Acrylic Filter Cloth for Dust Collector Bag , filtration media

Quick Detail:

Normal temperature flue gas filtration felt

100% polyester

1.5mm to 3mm thickness

Weight from 350 to 800s

Width 2.1 meter maximum

High porosity ,good air permeability

Good price quality

Laminated compound,grads counterchange

Description:

High efficiency of removing dust particle

Easy clear and long useful life

Smooth surface after Singeing,Heat setting,Calendering.

Specifications

1) in any material for PFFE treatment
2) good quality
3) 22 years reputation

PTFE Felt Features:


Material: PTFE fiber/PTFE long thread scrim


Weight: 630gsm-950gsm


Thickness: 0.81mm-1.12mm


Tensile strength (n/5 x 20cm):
a) Warp: 750 b) Weft: 980


Tensile elongation:
a) Warp: <25% b) Weft: <20%


Permeability (10-3m3/m2.S): 100 - 200


Working temperature:
a) Continuous: 240
b) Instant: 300


Surface treatment: singeing, heat setting,PTFEcoating,membrane.


PTFE material also called material,with a good performance in the temperature of 240 centigrade,the instant temperature can up to 260 centigrade. PTFE is a special material with a good alkali and acid resistance,non-hygroscopic,stable physical dimension, mainly used in coal burning boiler,waste incineration,carbon black producing,Tio2 producing for fume treatment or dust collection.

Product Parameters

Fiber Name
ptfe fiber
Weight(g/m2)
750-800
Thickness(mm)
1.8-2.0

Air permeability (m3/m2/min)
5-8
Working temperature (Degree C)
240-260
Width(m)
<2.2m
Surface treatment
Heat-set and singed one side
Break strength(N/5cm)
Warp≥900 Weft≥1200
Break elongation(%)
Warp≥35 Weft≥50
Resistance to acid
Excellent
Resistance to alkali
Excellent
Resistance to hydrolysis
Excellent
Resistance to oxidation
Excellent

Notices:

Filter material for high temperature

1. materials available: pps (Ryton / polyphenylene sulfide), Nomes, Glass fiber etc.

2. working temperature: no lower than 160 degree celsius.

3. specialties: strong acid resistance, good stability, high filtering efficiency

4. techniques used: needle punching & other stability, high filtering efficiency

Main product: Dust filtration,liquid filter filtration and related machines

1. Dust filtration-----filter bag and filter felt


Polyester filter bag,polyester antistatic filter bag,polyester filter bag blending,polyester filter bag with membrane,polyester filter bag water and oil repellent,polyester filter bagspecial type,pp filter bag,aramid filter bag pps filter bag acrylic filter bag, p84 filter bag, ptfe filter bag,ptfe mix p84filter bag,HST filter bag,fiberglass filter bag,PTFE mix pps filter bag,Basalt filter bag and polyester needle punched felt,acylic felt,aramid felt,P84 felt so on.

2. Liquid filtration filter bag

Polyester filter bag, PE filter bag, Micro filter bag,5 micro filter bag,10 micro filter bags,PP filter bag,nylon filter bag,ptfe filter bag,stainsteel filter bag and micro filter felt from 0.2micro to 600micro and so on.

3. Machines for making dust filter bags

Automatic filter bag tube line,Semi-Automatic filter bag tube line,Tripe-needle filter bag sewing

machine,double need sewing machine, long arm sewing machine,overlock sewing machine,slitting machine,filter bag bottom punching machine,package machines,needle punch line and so on.

Usagae/Occasion
Filter bag can be used for industrial filtration,product filtration,solid/liquid separation, like:
- Asphalt mixing plants
- Biomass power stations
- Chemical and pharmaceutical industry
- High temperature dedusting
- Coal-fired power stations
- Food industry
- Non-ferrous metal and steel production
- Cement, gypsum and lime industry
- Thermal waste treatment
