Long Thread Woven Filter Cloth Double Twill Weaving PP / Nylon Liquid Filter Media
Long Thread Woven Filter Cloth Double Twill Weaving PP / Nylon Liquid Filter Media
Long Thread Woven Filter Cloth Double Twill Weaving PP / Nylon Liquid Filter Media
Long Thread Woven Filter Cloth Double Twill Weaving PP / Nylon Liquid Filter Media
Specifications
Brand Name :
DAITTO
Model Number :
Woven Filter Cloth
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000meters per week
Delivery Time :
within 15 days
Packaging Details :
standard export package
material :
Polypropylene / PE / PA Monofilament / Long Thread Filter cloth , Anti Acid / Alkali Woven Filter Cloth
Type :
Woven Filter
Usage :
Dedusting /liquid Filter
Alkali-resistance :
Fair
Acid-resistance :
Strong
Model :
Nylon Liquid Filter
Description

Long Thread / Monofilament Woven Filter Cloth PP Polyester Nylon Liquid Filter Media ISO

Quick Detail:

1. reliable mechanical resistance, high elasticity;
2. corrosion resistance
3. low density, light weight
4. wear resistance

5. used in kinds of filter

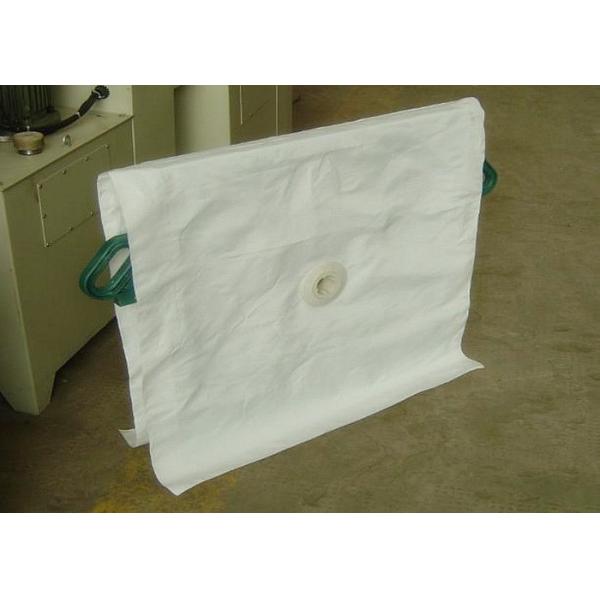

6. PP woven filter cloth for filter press machine
7. High tensile strength
8. Abrasion proof

Description:

We produce all kinds of PP filter cloth,
1. The weave:plain,twill,double twill
2. We have the type:840A,840B,750AB,750A,750B,108C,108B,etc
3. The PP filter cloth is widly used for chemical industry,pharmacy industry,smelting,stains industry and so on.
750B,721,663,1000,1000A......

Specifications:

Model Breaking Strength Density Thickness Weight Air Permeability Weave
(N/5*20cm) (root/10cm) (mm) (g/m2) L/m2.s
52l 2608/2050 214.8/150.8 0.79 302.7 216.5 Twill
522 2104/1633 244/173 0.41 155 73.44 Plain
534 2501/1894 193.6/100.0 0.99 368.1 41.2 Plain
4212 2672/1342 236.4/123.2 1.34 389.4 85.6 Twill
700A 3426.6/2819.4 204/106 0.7 350 117.9 Plain
700B 4648.0/2866.6 188/114 0.59 280 254.2 Twill
700AB 6865.4/416.7 378/235 1.15 580 82 Twill+Plain
750A(840A) 4466/2905 168/131 0.85 330 42 Plain
750B(840B) 5234/3489. 256/141 0.99 420 76 Twill
750AB(840AB) 6718/5421 333.8/204.4 1.36 489.9 24.5 Plain
840-1 5275/3948 252/146 0.9 440 45.5 Twill
840-2 5928/4086 283/142 1 490 40.7 Twill
840-3 6282/4858 311/134 1.1 520 27.2 Twill
858 4418/3618 251/124 0.88 380 240.7 Twill
4218 8568/5427 456/94 1.32 660 38.4 Twill
4422 2643/1514 181/94 1.18 480 17.86 Twill
1000A 5585.7/4089.2 204/102 0.85 435 9.83 Plain
1000B 6636/1481 204/110 0.79 430 21.49 Twill
1500-1 56283701 251118 1.42 725 29.38 Twill
108B 8721/4642 503/133 1.1 600 13.6 Double Twill
108C 8367/4797 504/177 1.03 600 22.96 Satin

Notices:

Meantimes we also supply PE(Polyester ),PA(Nylon) filter cloth to fit different application.

Any other question feel free to let us know.

Material
Item
Breaking Strength
(N/5*20cm)
Density
(Root/10cm)
Thickness
(mm)
Weight
(g/m2)
Air Permeability
(L/m2.s)
Weave
Polyester Filament
60-8(130)
1363/111.6
260.0/221.6
0.27
125.6
130.6
Plain
60-10(240)
2508/958.0
225.6/156.0
0.42
219.47
36.1
Plain
60-9(260)
2202/1776
205.6/160.8
0.47
257
32.4
Plain
60-7(621)
3026/2288
191.2/134.0
0.65
342.4
37.8
Plain
Polyester Staple Fiber
5926(120-7)
4498/4044
260/202
1.42
610
54
Twill
734(120-12)
2072/1633
232/166
0.62
245
480
Twill
745(120-13)
1936/730
232/196
0.48
210
125
Plain
747(120-14)
2026/1485
226/158
0.53
248
120
Plain
758(120-15)
2594/1909
194/134
0.73
330
100
Plain
3927(120-16)
4598/3154
156/106
0.9
524
18
Plain

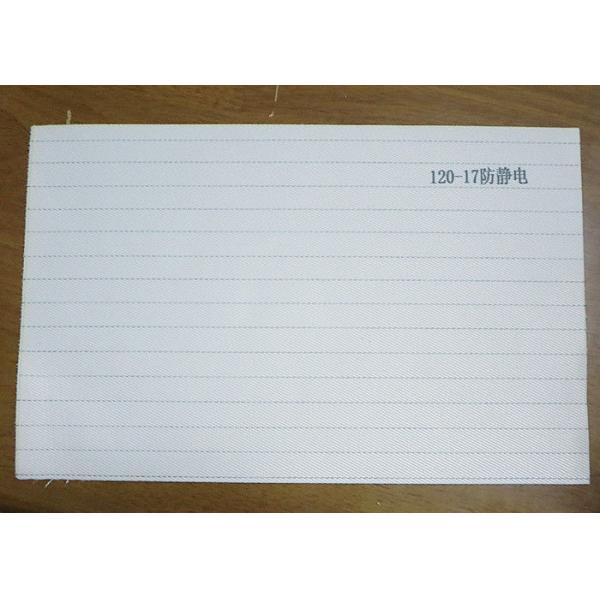

728(120-17)
2753/1869
246/310
0.89
360
180
Twill
729
3180/2157
307/201
0.72
315
120
Plain
208
2788/1930
360/276
1.43
400
280
Twill
822
5760/3480
260/102
1.65
940
22
Twill

Applications:

Separation in solid and liquid to equip with filter press ,conveyor belts filtration Machine ,Filter Leaf ,Horizontal Rotating Pan Filter ,Vacuum filter ,in Chemical industry ,Fertilizer industry ,Sugar making ,food and beverage ,metallurgy ,Building ,Waste water dealing ,and so on .

The Polyester Filter Fabrics possess the properties of strong acid-rsistance, fair alkali-resistance, and operating temperature 130. They can be widely used in pharmaceuticals, non-ferrous metals metallurgical and chemical industrials, in the equipments of frame filter presses, centrifuge filters, vacuum filters, etc. The filtering precision can reach less than 5 micron.

Chemical Industries

Water Treatment

Dyestuff&Pigments

Metallurgy Industries

Pharmacy

Architecture

Cement Plants
