1 Micron PPS FMS Woven Filter Cloth Reliable Mechanical Resistance Staple Fiber
1 Micron PPS FMS Woven Filter Cloth Reliable Mechanical Resistance Staple Fiber
1 Micron PPS FMS Woven Filter Cloth Reliable Mechanical Resistance Staple Fiber
1 Micron PPS FMS Woven Filter Cloth Reliable Mechanical Resistance Staple Fiber
Specifications
Brand Name :
DAITTO
Model Number :
Woven Filter Cloth
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100000 meters per week
Delivery Time :
within 15 days
Packaging Details :
standard export package
usage :
Applied Plant:: Chemical Industry/food Industry/Metallurgy Industry
Material :
Woven Polyester Fiber
Alkali-resistance :
Fair
Model :
Staple Fiber/Long Thread
Description

Monofilament filter cloth 1 micron PP PE PPS FMS Filter Fabric for liquid filter bag

Quick Detail:

1. reliable mechanical resistance, high elasticity;
2. corrosion resistance
3. low density, light weight
4. wear resistance

5. used in kinds of filter

6. PP woven filter cloth for filter press machine
7. High tensile strength
8. Abrasion proof

Description:

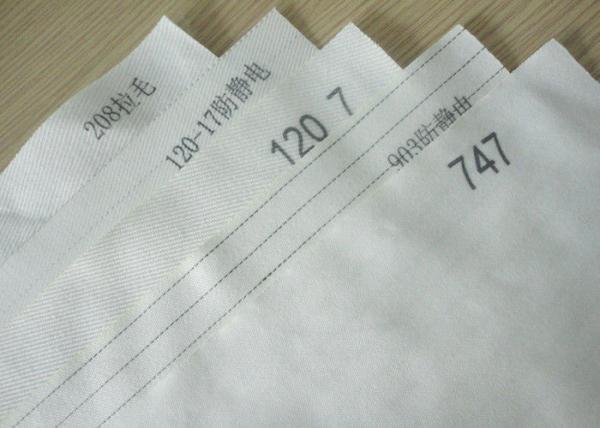

We produce all kinds of PP filter cloth,
1. The weave:plain,twill,double twill
2. We have the type:840A,840B,750AB,750A,750B,108C,108B,etc
3. The PP filter cloth is widly used for chemical industry,pharmacy industry,smelting,stains industry and so on.
750B,721,663,1000,1000A......

Specifications:

Model Breaking Strength Density Thickness Weight Air Permeability Weave
(N/5*20cm) (root/10cm) (mm) (g/m2) L/m2.s
52l 2608/2050 214.8/150.8 0.79 302.7 216.5 Twill
522 2104/1633 244/173 0.41 155 73.44 Plain
534 2501/1894 193.6/100.0 0.99 368.1 41.2 Plain
4212 2672/1342 236.4/123.2 1.34 389.4 85.6 Twill
700A 3426.6/2819.4 204/106 0.7 350 117.9 Plain
700B 4648.0/2866.6 188/114 0.59 280 254.2 Twill
700AB 6865.4/416.7 378/235 1.15 580 82 Twill+Plain
750A(840A) 4466/2905 168/131 0.85 330 42 Plain
750B(840B) 5234/3489. 256/141 0.99 420 76 Twill
750AB(840AB) 6718/5421 333.8/204.4 1.36 489.9 24.5 Plain
840-1 5275/3948 252/146 0.9 440 45.5 Twill
840-2 5928/4086 283/142 1 490 40.7 Twill
840-3 6282/4858 311/134 1.1 520 27.2 Twill
858 4418/3618 251/124 0.88 380 240.7 Twill
4218 8568/5427 456/94 1.32 660 38.4 Twill
4422 2643/1514 181/94 1.18 480 17.86 Twill
1000A 5585.7/4089.2 204/102 0.85 435 9.83 Plain
1000B 6636/1481 204/110 0.79 430 21.49 Twill
1500-1 56283701 251118 1.42 725 29.38 Twill

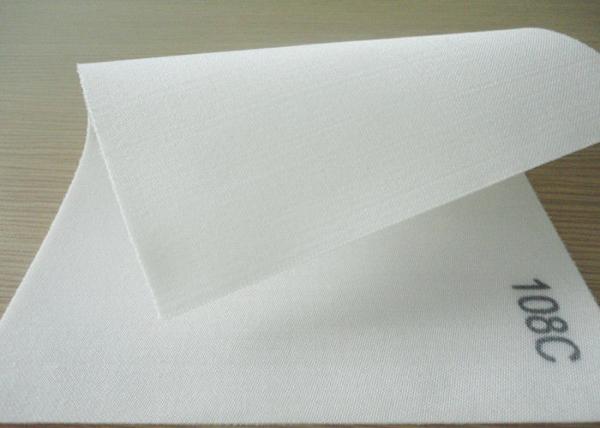

108B 8721/4642 503/133 1.1 600 13.6 Double Twill
108C 8367/4797 504/177 1.03 600 22.96 Satin

Notices:

Meantimes we also supply PE(Polyester ),PA(Nylon) filter cloth to fit different application.

Any other question feel free to let us know.

Material Yarn Polypropylene
Weight(g/m2) 400
Tickness(mm) 0.8
Air permeability(L//m2/s) 65
Density (stick/10cm counts/10cm) Warp 256
Weft

141
Tensile strength Warp ≥3100
Weft ≥1980
working temperature(℃) <100
Construction Twill weave

1 Micron PPS FMS Woven Filter Cloth Reliable Mechanical Resistance Staple Fiber

Applications:

Separation in solid and liquid to equip with filter press ,conveyor belts filtration Machine ,Filter Leaf ,Horizontal Rotating Pan Filter ,Vacuum filter ,in Chemical industry ,Fertilizer industry ,Sugar making ,food and beverage ,metallurgy ,Building ,Waste water dealing ,and so on .
