1 - 100um Industrial Filter Bags Polypropylene Oil Holding Liquid Filter Bag 1# 2# Size
1 - 100um Industrial Filter Bags Polypropylene Oil Holding Liquid Filter Bag 1# 2# Size
Specifications
Brand Name :
DAITTO
Model Number :
Industrial Liquid Filter Bag
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, T/T, MoneyGram
Supply Ability :
30000pcs per day
Delivery Time :
within 15days
Packaging Details :
standard export package
Type :
PP(PO)
Material :
Polypropylene
Micron :
1um-100 um
Size :
1#,2#
Ring Material :
Plastic Top, Metal Ring
Bag Body Structure :
Welded/Sewn
Package :
standard export package
Usage :
Oil Absorption
Description

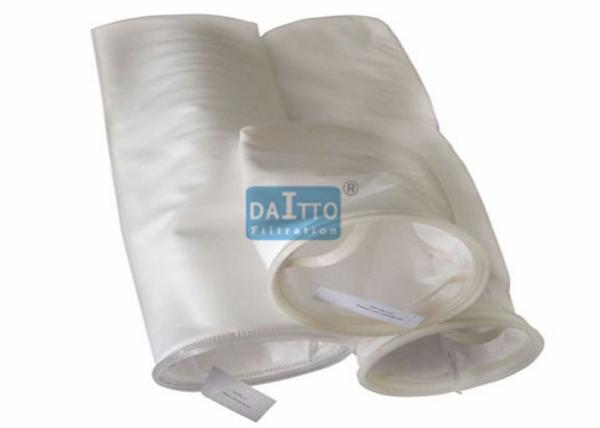

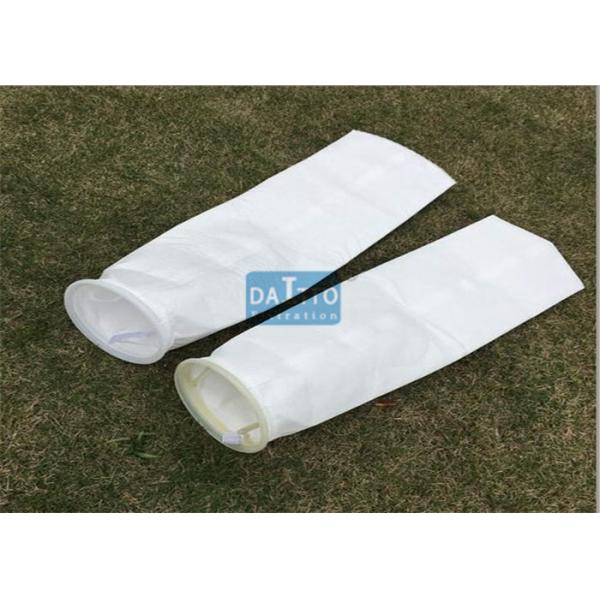

1-100um Industrial Liquid Filter Bags, Polypropylene Oil holding Liquid Filter Bag 1#,2#

Oil holding Filter Bags are made of superfine fiber and filter material which is composed of multi-layer micron level has the high ability of capturing and holding capacity of hydrocarbon. This unique product can filter efficiency can reach 25 upsilon m for some special needs, we can also use the higher filtering accuracy of filtering materials and oil absorption material, in order to achieve higher filtering accuracy.
Daitto oil absorbing material can absorb a maximum of tenfold oil.
In the filter bag to add a special activated carbon filter, oil filter bags can also be better to remove some of the pigment in the liquid, odor.

Description:

Micron Rating (um): 1, 5 10 25 50 75 100
Recommended Operating Pressure Dropz: ≦ 1.5 kg/cm2
Max. Operating Pressure Drop:≦ 2 kg/cm2
Max. Operating Temperature: 80℃ /110℃

Specification:

Industrial Liquid filter bag Sheet1:

Filter bag size Max Flow(m3/h) Filter Area(m2) Volume(L) Diameter(inch) Length(inch)
Size 01# 20 0.25 8.00 7 17/16
Size 02# 40 0.5 17.00 7 32/33
Size 03# 6 0.09 1.30 4 9
Size 04# 12 0.16 2.50 4 15
Size 05# 18 0.20 3.80 6 22

Industrail Liquid filter bag Sheet 2:

Type Size Bag Body Structure Bag top Structure Micron Rating(um)
Oil Holding Filter Bags 01#,02# Welded/Sewn Plastic Top/Metal Ring 1-100

Industrail liquid filter bags remove contaminants and are often used in vessel or open filtration systems, industrial water systems, and chemical processing equipment. Daitto filtration carries industry standard and custom sized liquid Filter Bags. Our industrial filter bag come in a variety of materials and a wide assortment of collar and ring types that ensure compatibility with most bag vessels.

Application:

1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.

1 - 100um Industrial Filter Bags Polypropylene Oil Holding Liquid Filter Bag 1# 2# Size

FAQ:

Q: Are you trading company or manufacturer ?

A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)

Shanghai Daitto Filtration is one of China Industrial Liquid filter bag manufacturers, factory and supplies.The strong Industrial Liquid needled felt filter bags are suitable for the removal of hard particles from a process stream. Daitto Filter provides Industrial Liquid needled felt bags in PO, PE, NOMEX and PTFE in the full range of bag sizes.
