Specifications
Brand Name :
DAITTO
Model Number :
Industrial Filter Bag
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000pcs per day
Delivery Time :
within 15 days
Packaging Details :
export package
Type :
Industrial Dust Filter Bag
Material :
PTFE
Diameter :
Custom
Length :
Custom
Process Method :
sewing or welded
Feature :
Dust Collector
Certificate :
ISO9001,CE
Finish :
High temperature resistance
Description

PTFE Non woven Indutrail Dust Filter Bag , anti static dust filter bags

Be produced from 100% PTFE fiber which has been punched in three-dimentional structure. They have excellent features such as excellent flexibility, molding capability, high tensile strength, creep resistance, high and low temperature resistance, corrosion resistance and anti-aging. 100% PTFE filter material can meet requirements in hostile environments of temperature fluctuating and acid & alkali in all PH range. The lifespan of PTFE filter material will be guaranteed for over 4 years as long as the temperature is controlled under the maximum operating temperature.

Description:

• Be composed of 100% pure PTFE;

• Can operate at 240 °C continuously;

• Acid and alkali Resistance, corrosion resistance,

• Have strong chemical stability (0-14 PH);

• Can be used under high humidity environment;

• Low shrinkage rate even if under high temperature,

• Aging resistance;

• No enviroment pollution

Specification:

Size: diameter 100mm, 125mm, 130mm, 150mm, 180mm, 250mm ect.

Any length is available. Special size is customizable.

Process Method: sewing or welded

Dust collector filter bag tops include:Beaded snap band top, corded or ring top, raw top, flat sewn top, top with grommet, top with loop, gasket top and other.

Heading Product cord HD-PTFE
Compositions 100%PTFE
Weight(g/ m2) 800
Thickness (mm) 1.0~1.5
Air permeability (L/m2/s) 1.8-3.6
Tensile strength(N/5 20cm) wrap ≥600
weft ≥800
Tensile Elongation(%) wrap <20
weft <50
Broken strength(Mpa/min) 1.95
Continuous working temperature(℃) ≤250
Short time Working temperature(℃) 300
Anti-acid Excellent
Anti-alkali Excellent
Anti-abrasion Excellent
The stability of water solution Excellent
Finishing treatment Singeing,Het setting,Calendering

Advantage:

1. dust collector filter bags are designed to be mounted and gasketed firmly into place with a snap band, corded cuff, or clamp to ensure dust tight seal.

2. dust collector filter bag are carefully fabricated and sized to ensure ease of installation and
change-out.
3. Various coatings and finishes can be applied to either side of the dust collector bag to enhance cleaning and efficiencies, as well as prolonging service life.
4. Groundwire, anti-collapse rings and other options can be easily incorporated into bag construction.

Application:

• Combustion

• Coal burning boiler

• waste incineration

• carbon black producing

• Tio2 producing for fume treatment or dust collection

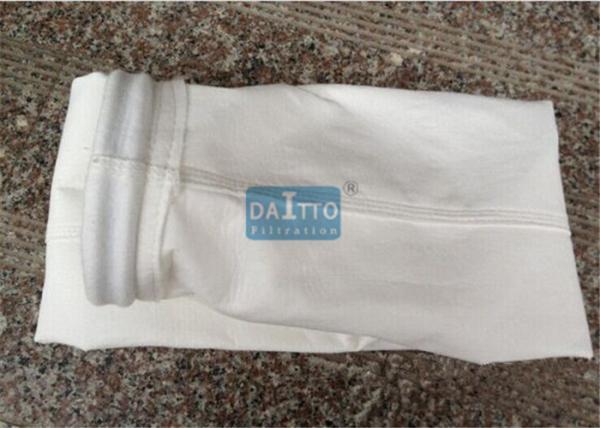

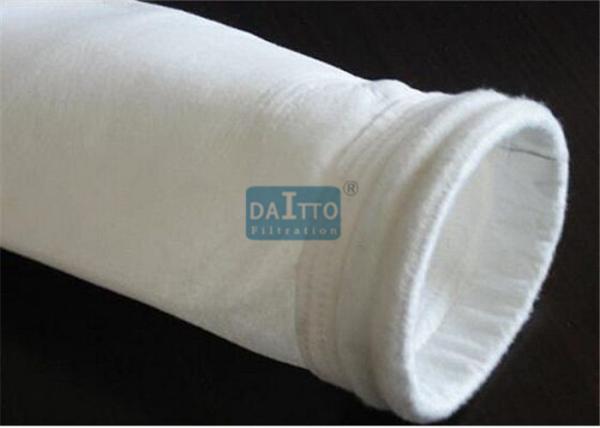

PTFE Non Woven Industrial Filter Bags Customized Diameter Creep Resistance
FAQ:

Q: Are you trading company or manufacturer ?

A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.

Q: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.

Q: What is your terms of payment ?

A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)

Shanghai Daitto Filtration is one of China industrial dust collector filter bag manufacturers, factory and supplies, is making and supplying China polyesterindustrial dust collector filter bags, nomex aramid industrial dust collector filter bags, pps industrial dust collector filter bags, p84 industrial dust collector filter bags, ptfe industrial dust collector filter bags, fiberglass industrial dust collector filter bags, acrylic dust industrial collector filter bags, ptfe laminated dust industrial collector filter bags, high temperature dust collector filter bags with good quality and good prices.
