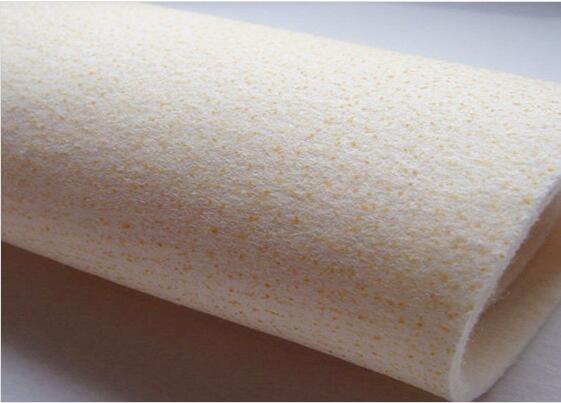

Non Woven Industrial Filter Cloth Needle Punched 500 To 3000mm Diameter
Non Woven Industrial Filter Cloth Needle Punched 500 To 3000mm Diameter
Specifications
Brand Name :
DAITTO
Model Number :
PE Filter Fabric Tops Priority Among Synthetic Fabric Cloths
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1000000m per week
Delivery Time :
within 20 days
Packaging Details :
standard export package
Material :
polyester, polypropylene and polyamide
Fibers :
polyester, polypropylene, polyamide, PVDF, Saran, PTFE
Diameters :
from 500 to 3000 mm
usage :
Discs & cloths for vacuum & pressure filters
installation :
Easy installation and optimal fit
supply :
• NFM Belt Presses • Andritz Belt Press • Eimco Belt Press • Komline Sanderson Belt Press • Enviroclear Belt Press • Phoenix Belt Press • Frontier Belt Press
Description

500gsm aramid felt punched filter / aramid filter for vacuum cleaner


Quick Detail:

1. High Temperature resistant
2. Resists flexing and abrasion
3. Effect of moisture
4. Good chemical resistance

Description:


Cement kiln dust collector equipped aramid filter bag ,high temperature resistant aramid filter bag ,water repellent treatment .Aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature resistant function ,and long wearing life.

Specifications:

Article Name Aramid needled felt
Ingredients Fiber 100% Aramid
Scrim 100% Aramid
Weight g/m2 500
Thickness mm 2±2
Density g/m³ 0.24
Permeability L/dm2.min 150
Tensile breaking
strength(N/5cm)		 Warp ≥800
Weft ≥1000
Elongation @200N/5cm Warp <5
Weft <5
Maximum shrink
of 90 mins		 Temperature(°C) 250
% ≤1
Service Temperature(°C) Continuous 200
Instant 240
Finishing Singeing, calendaring

Compositions
Aramid/Aramid scrim
Weight (g/m2)
 450 500 550
Thickness (mm)
 2.0 2.2 2.4
Air permeability (m3/m2·min)
 21 17 14
Tensile strength (N/5 20cm)
 Warp >800 >800 >800
Weft >1100 >1200 >1300
Tensile Elongation ()
 Warp <35 <35 <35
Weft <55 <55 <55
Broken strength
 2.55 2.40 2.35
Working Temperature()
 ≤204 ≤204 ≤204
)
Short time Working temperature()
 240 240 240
Anti-acid Medial
Anti-alkali Excellent
Anti-abrasion Excellent
The stability of water solution Medial
Finishing treatment
Singeing, calendaring or coated

Filter bag is the most important part in dust collector which influences the collection efficiency and working temperature. Renewal of bags creates major cost in maintaining bag house, so the lifetime of bags are the main factor affecting the cost and working condition of bag-house.
There are three types: woven fabric dust bag, non-woven fabric bag and compound filter material.
Three shapes: round type, flat type and customized type
Filtering method: inner filtering & outer filtering

round style(external filtration)

 diameter length applicable for
120 2000 2400 2800 3200 3600 4000 4400 4800 5200 5600 6000 pulse jet bag house
130
152
200
round style(internal filtration) diameter length applicable for
180 6000 8000 10000 12000 section reverse flow bag house
250
300
flat style diameter length applicable for
800 2000 3000 4000 5000 6000 reverse flow bag house
900
envelope style length width thickness applicable for
1500*750*25

side insert bag house

Applications:


Aramid filter bag for higher temperature dust filtration ,widely applied in Asphalt mixing plant ,cement Kiln smoke dust filtration in cement plant ,steel melting furnace smoke filtration and so on .
Aramid filter bag offer one of the best total economies in a filtration system because of higher air to cloth ratios, higher temperature capability, and a long working life.
