Specifications
Brand Name :
DAITTO
Model Number :
Pleated Filter Cartridge
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
5000 pcs per month
Delivery Time :
within 15 days
Packaging Details :
standard export package
Type :
Pleated Filter Cartridge
Filter Media :
Asymmetric PES Membrane
Micron Rating :
0.1, 0.22, 0.45, 0.65 um
Support Layers :
Polypropylene
Length :
10, 20, 30, 40 Inch
Application :
Water, Wines, Beer, other liquid solutions, etc
Description

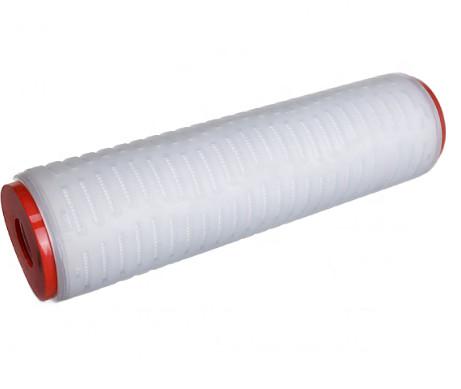

0.45 Micron PES Membrane Filter 30" With SOE 226 O-rings

Imported high precision PES filter membrane is adopted in the product as filter media. The product is produced by overall structure sweat welding. It has excellent filtration performance and ability of completely intercepting bacteria.

Features:
● The filter membrane is hydrophilic with absolute filtration accuracy;
● Low protein adsorption performance;
● Wide chemical compatibility;
● Extremely low precipitates;

Typical applications:
● Sterile filtration of vaccine;
● Sterile filtration of blood products;
● Sterile filtration of raw material medicine, injections, infusion and other drugs;
● Filtration of cell culture medium;
● Filtration of de-ionized water;
● Terminal filtration of semiconductor wet equipment;

Quality assurance:
● ISO9001: 2008 guaranteed quality management system;
● Traceability management system of each filter;
● Filter elements are flushed and pass integrity test before filter elements are left from the factory;
● The batch passes through bacterial challenge test for confirming 100% bacteria interception ability;

Biological safety:
Biological Safety: The product materials comply with USP in-vivo VI-121 ℃ plastic biological response test.
Endotoxin:<0.25EU/ml;
Cleanliness: The product is in line with 2010 GMP requirements on injection of particles;
Readily oxidizable substance: the substance should be in line with 2010 GMP test requirements of particle contents in injections after water rinsing for 2000ml;
TOC/conductivity: after the product is flushed with 20L injection water at 25 ℃ (10〃) . It is in line with requirements of 2010 GMP on total organic carbon contents and conductivity in injection water.

Filter element material composition:

Filter membrane PES filter membrane
Diversion material Polypropylene
Outer shell Polypropylene
Seal ring Please see Filter Element Model Selection Table
Center rod Polypropylene or 316L stainless steel

Integrity test:

Aperture(um) 0.1 0.2 0.3 0.45
The lowest bubbling point in pure water(MPa) ≥0.48 ≥0.34 ≥0.25 ≥0.16

Main application technical indicators:

Maximum operating temperature 85℃/0.1MPa
Maximum operating pressure difference 0.42MPa/25℃
Recommended operating pressure difference 0.1-0.2MPa/25℃
Maximum back-pressure difference 0.2MPa/25℃
Effective filtration area (10 inches) ≥0.6㎡
Forward online steam sterilization (135 ℃) 30min/time
Disinfection by Disinfection cabinet (121 ℃) 30min/time

0.45 Micron PES Membrane Pleated Filter Cartridge 30

FAQ:

Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)

Shanghai Daitto Filtration now has quite a few products in stock in its factory. Also dealing with customized service, we warmly welcome you to buy or wholesale discount and cheap products at low price with us.
