Specifications
Brand Name :
DAITTO
Model Number :
PTFE Dust Filter Bag
Certification :
ISO
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
3000pcs per day
Delivery Time :
within 15 days
Packaging Details :
export package
Type :
Dust Filter
Material :
PTFE
Diameter :
Custom
Length :
Any Size
Process Method :
sewing or welded
Features :
High temperature grade Anti-acid ,anti-alkali, chemical resistance
Package :
Standard export package
Certificate :
ISO9001
Description

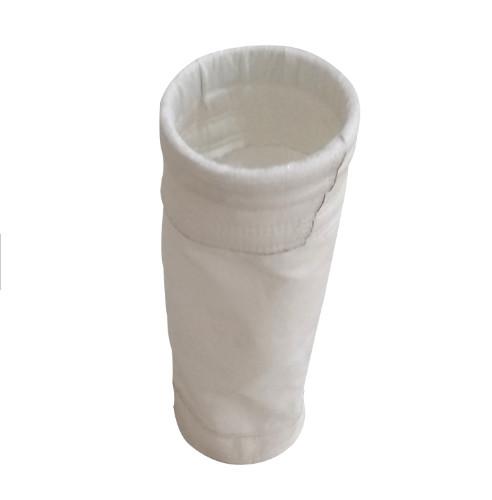

Alkali resistance PTFE air filter bag for industrial use

Description:

PTFE dust filter bag (Fluorocarbon fiber/Polytetraflouroethylene aka PTFE).
Normal maximum continuous operating temperature is 240degrees.
Generally used for severe chemical environments at high temperatures.
Common applications include coal-fired power plants, cement production, and steel foundries.
Chemical resistance is excellent and abrasion resistance is generally superior to protein fibers,
but not as good as most synthetics. has an extreme high cost and is typically used after
everything else has failed. is available in both a woven and a felt finished product.
This media has poor flex abrasion qualities and requires a 20 vertical wire minimum support cage when used in tubular bag form.

Specification:

Material PTFE fiber /PTFE scrim
Weight(g/m2) 800
Thickness(mm) 1.4
Air permeability(m3/m2.min) 110
Tensile strength(N/5×20cm) Warp >800
weft >700
Break elongation(%) Warp ≤50%
weft ≤30%
Thermal shrinkage(%) Warp ≤3.0%
weft ≤3.0%
Hydrolysis Resistance Excellent
Alkalic Resistance Excellent
Working Temperature 240℃
Peak Tmeperature 260℃
Finish Treatment Singeing, PTFE membrane
Note

The parameters above come from ideal lab condition,

the performance will change a little bit in line with actual application

Model No. Material Weight Thickness Breaking strength Using temperature
g/m2 mm vertically horizontally
PTFE coated needle felt polyester fibre or metamax needle felt 400-650 1.4-2.3 ≤260
PTFE coating

Application:

• Combustion

• Coal burning boiler

• waste incineration

• carbon black producing

• Tio2 producing for fume treatment or dust collection
