Specifications
Brand Name :
Crowns
Certification :
ISO 9001; CE
Place of Origin :
China
MOQ :
1set
Price :
$800-$5000/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000SETS/PER YEAR
Delivery Time :
20 working days
Packaging Details :
Wooden box
Filtration Area :
0.22-1.88m2
Cleaning Way :
Brush
Filter Bag Length :
0.25m-3m 0r As Requirment
Filter Flow Rate :
2-200m3/h
Keep Rating :
0.15-5mm
Original :
China
Description

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

Introduction

The Filtering Process: Raw water enters the filter inlet through the coarse screen which protects the cleaning mechanism from large particles. Then water passes through the fine screen, trapping dirt particles which accumulate inside the filter. Clean water flows through the outlet. The gradual dirt buildup on the inner screen surface causes a filtration cake, with a corresponding increase in the pressure differential across the fine screen. A pressure differential switch senses the pressure differential and when it reaches the pre-set value, the cleaning process begins.

The Self Cleaning Process: Cleaning of the filter is carried out by the brush which spirals across the screen; The Drain Valve opens and the Motor rotates the stainless steel brushes which sweep the inner surface of the cylindrical screen. The particles trapped on the screen are dislodged by the brushes and flushed out the drain valve. During the self cleaning process, which takes between 30 seconds,filtered water continues to flow downstream.

Product Parameterss

Model
Dimension
Inlet&outlet
Max. flow
Pressure
Micron
Motor
FS-250-50
φ273*1000
DN25~DN50
50 t/h
10bar
≥50μm
0.18kw/RV040
FS-300-100
φ325*1200
DN80~DN125
100 t/h
10bar
≥100μm
0.37kw/RV063
FS-400-150
φ426*1300
DN150
200 t/h
10bar
≥200μm
FS-480-200
φ480*1550
DN200
300 t/h
10bar
≥300μm
FS-530-250
φ530*1650
DN250
450 t/h
10bar
≥300μm
0.75kw/RV075
FS-600-300
φ600*1750
DN300
550t/h
10bar
≥300μm
FS-700-350
φ700*2000
DN350
700t/h
10bar
≥500μm
FS-800-400
φ800*2150
DN400
1000t/h
10bar
≥800μm
FS-900-450
φ900*2300
DN450
1200t/h
10bar
≥1000μm
FS-1000-500
φ1000*2500
DN500
1500t/h
10bar
≥1500μm
FS-1100-600
φ1100*2600
DN600
1800 t/h
10bar
≥3000μm
1.5kw/RV090
FS-1200-700
φ1200*2800
DN700
2300 t/h
10bar
Note: Material :galvanized steel /Stainless steel ;
Customization Accepted ;

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

How choose the model

In order to achieve the filtering effect, and at the same time to maximize the user to meet the

requirements of water, power and labor saving, when you choose the self-cleaning filter,

please consider the following technical parameters.

A.Flow rate

B.Inlet & Outlet size
C.Maximum working pressure and temperature
D.Filter strainer type and filtration rating
E.Shell material and strainer material
F.Filter suspended substance concentration in impurities
G.Related physical and chemical properties of filter media
H.Based on the local installation position to confirm the structure.

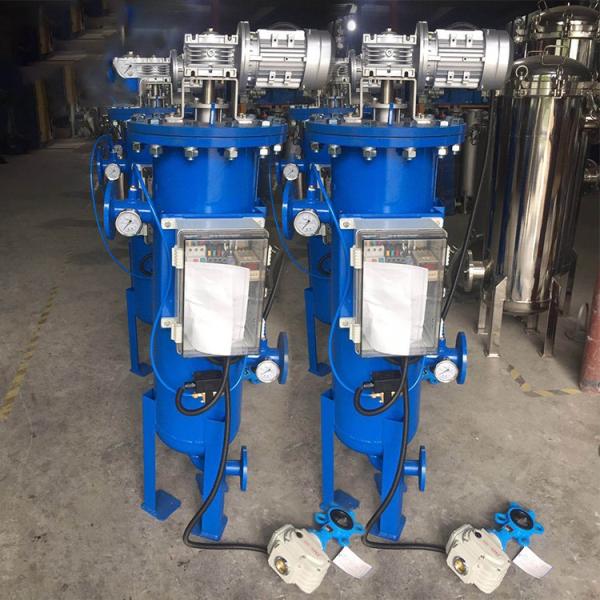

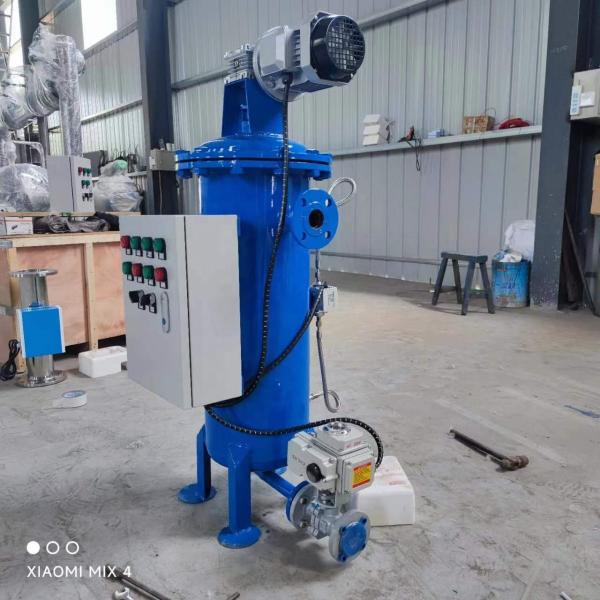

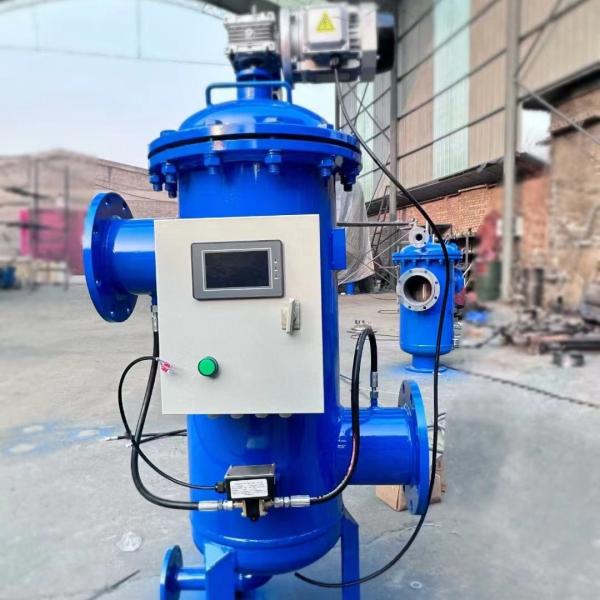

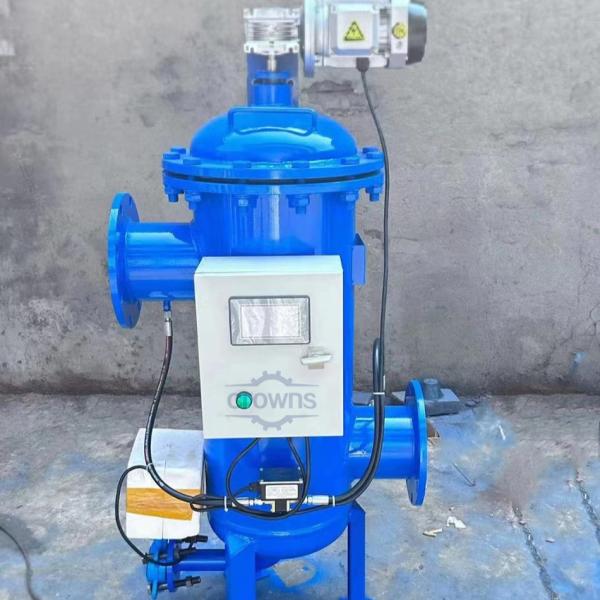

Detailed Images

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

Automatic 120 Mesh hydraulic self cleaning filter for Irrigation Industrial Water Filter

FAQ

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
