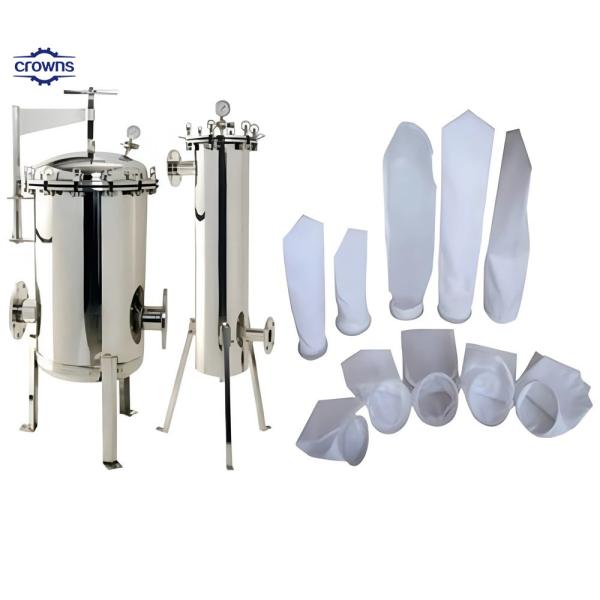

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment
Specifications
Brand Name :
Crowns
Certification :
ISO 9001; CE
Place of Origin :
China
MOQ :
1set
Price :
$325-$2500/set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000SETS/PER YEAR
Delivery Time :
20 working days
Packaging Details :
Wooden box
Thickness :
1.2-4mm
Filter Degree :
1-500microns
Surface Treatment :
Inner polished and outside sandblast
Filter Bag Thickness :
7 - 10 Mm
Operating Pressure :
6bar-10bar
Max Working Pressure :
100psi
Description

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

Wholesale Factory 316L Stainless Steel Bag Filter Housing for Rap/Sunflower Seed Oil Liquids Pre-filtration equipment

Features

  • Bag filter has large capacity, small volume and large sewage capacity;
  • It is convenient and fast to replace the filter bag, and the filter is free of cleaning, saving time and labor;
  • Filter bag can be used repeatedly after cleaning to save costs;
  • The filtering accuracy of the filter bag has been continuously improved, and has reached 0.5 μm ;
  • The side leakage rate of the filter bag is small, effectively ensuring the filtering quality;
  • Bag filter can bear greater working pressure, with small pressure loss, low operating cost and obvious energy-saving effect;
  • Bag filter has a wide range of applications, flexible use, and various installation methods. It can be pulled along with small carts.

Product Parameters

s

Models
No. of filter bags
Flow rate
I/O Connections
Max pressure
Housing Diameter
Housing Height
(m鲁/h)
(Mpa)
(mm)
(mm)
DL-2P2S
2
70
DN50
0.1-1.2
456
1144
DL-3P2S
3
105
DN80
508
1190
DL-4P2S
4
140
DN100
558
1244
DL-5P2S
5
175
DN150
608
1254
DL-6P2S
6
210
DN150
658
1300
DL-7P2S
7
215
DN150
710
1340
DL-8P2S
8
280
DN150
760
1404
DL-10P2S
10
350
DN200
910
1430
DL-12P2S
12
420
DN200
962
1460
DL-14P2S
14
490
DN200
1012
1490
DL-16P2S
16
560
DN250
1112
1512
DL-18P2S
18
630
DN250
1162
1595
DL-20P2S
20
700
DN250
1212
1640
DL-22P2S
22
770
DN250
1366
1694
DL-24P2S
24
840
DN300
1416
1748
Customized is available

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

How choose the model:

please consider the following technical parameters:

A.Flow rate

B.Inlet & Outlet size
C.Maximum working pressure and temperature
D.Filter strainer type and filtration rating
E.Shell material and strainer material
F.Filter suspended substance concentration in impurities
G.Related physical and chemical properties of filter media
H.Based on the local installation position to confirm the structure.

Detailed Images

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

316L Stainless Steel Bag Filter Housing For Rap/Sunflower Seed Oil Liquids Pre Filtration Equipment

FAQ

Q1 : Where is your factory located?
A1 : Qingdao crowns machinery co.,ltd is located at Huangdao district ,Qingdao city, China

Q2 : Are you an integrated supplier for industrial filter machine ?
A2 : Yes, we can provide the complete solution line to customer according to customer’s requirement.

Q3 : How about the quality control in your factory?
A3 : Qingdao crowns has the SOP (Standard Operation Procedure) and all the production step must follow

up this SOP. Every machine needs at least automatic running over 72 hours and must be inspected carefully

before shipment.

Q4 : Will you offer the pre-sales service?
A4 : Yes, we have an experienced pre-sales team to support customers not only including machine, technology

also water electrical,machine layout in factory, etc.

Q5 : What about the after-service? Will you send your engineer to my country to help commission and install the

machine?
A5 : Surely, we have many experience technical engineers for oversea service, they would help you install machine

and support training to workers also.

Q6 : What is the delivery time of the machine?
A6 : Actually, the delivery time of the machines is depended on the machine options. Normally, the delivery

time of standard machine could be within 10-30 days

Q7 : What is the warranty of the machine ?
A7 : The whole machine’s warranty period is 12 months and key parts will be depended.

Q8 : Do you provide any spare parts with machine?
A8 : Yes, CROWNS will provide one set standard spare parts to customer according to different machines
