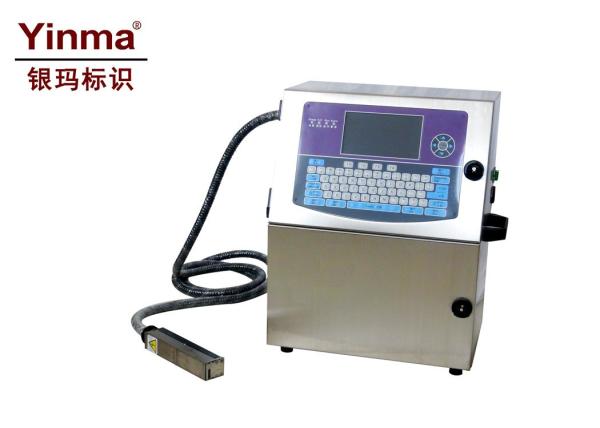

plastic products CIJ printer small character inkjet printer with 0-3m/s printing speed
Product Features:
1. Automatic power-off protection system
When the outside world suddenly loses power, in order to protect the nozzle component and printed items, and avoid the dirty, the dedicated UPS power supply system can guarantee the equipment running for a period of time,so the nozzle won’t flow.
2. Save consumables and reduce the printing cost
Adopt optimizational ink system design: use small ink tank,small diameter pipeline,and other special ink pipelines, greatly reducing the fluid flow in the pipes and effectively controlling the volatilization of the solvent. The material consumption is only 10-20% of traditional air pump machines,and 60-70% of gear pump machines. This series of printers has became one of the most saving consumables ink printers in the world.
3. A perfect interface
Using pinyin input method and location input method, with a full set of Chinese and English characters, large screen LCD display, dot matrix directly editing function, WYSIWYG. Operation is more convenient.
It can store more information. Combined with spray printing three lines, patterns anti-fake function, and flexible choice of lines and rows, the font is more beautiful and the function is more powerful.
Product Parameters:
Projects | YM-S6901 |
Dot matrix font | 5×5,7×6,7×8,8×12,12×12,16×16,24×24 |
Printing lines | 1-3 lines |
Character height | 1-8 MM |
Printing speed(7x5) | 3 m/s |
Printing length | 1024 characters |
Printing ink | Black,blue,red etc. dye based ink |
Input mode | Keyboard operation Operation interface in both English and Chinese pinyin input method location input method |
Printing direction | Normal words,opposite words,reversed words, opposite reversed words, can set print direction for a single character |
Font wider | 1 ~ 9 times, can widen the font for a single character |
Font Spacing | 1-8 times,can edit point by point at will |
Stored Info | Unlimited |
Printing content | Dates,times,automatic date,automatic validity period,lot number ,numbers,four groups counts,variable bar code,anti-counterfeiting code,two-dimension code,multi language,multi fonts(Support for individual signature ) |
Communication function | SD cards USB drives RS232 serial inputs |
Other communication function | Encoder input photoelectric switch input alarm Signal Output reservation multiple output control |
Physical property | |
Power | 50W |
Power Supply | 110/220 VAC, 50/60 Hz |
Ambient temperature | -10°C ~45°C |
Ambient humidity | 10~95% non condensing |
Contour size | 400x290x515mm |
Nozzle tube | 3 meters |
Shell and weight | 304 stainless steel,IP55,27kg |
Our services
1. Pre-sale services:
Select equipment model;
Design and manufacture products according to clients’ special requirement;
Train technical personnel for clients
2.Services during the sale:
Pre-check and accept products ahead of delivery;
Help clients to draft solving plans;
3.After-sale services:
Provide considerate services to minimize clients’ worries;
Assist clients to prepare for the first construction scheme;
Install and debug the equipment;
Examine the equipment;
Take initiative to eliminate the troubles rapidly;
Provide technical exchanging.
Application and Sample Pictures
