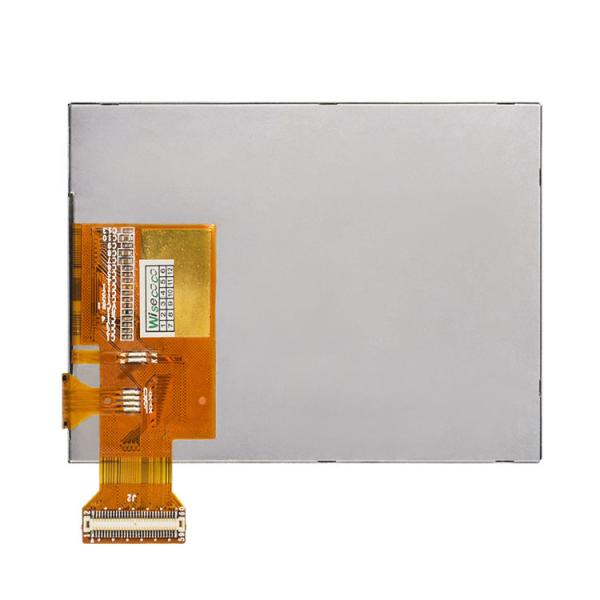

3.5 Inch LCD TFT Resistive Touch Screen 240×320 262K Color ODM
3.5 Inch LCD TFT Resistive Touch Screen 240×320 262K Color ODM
3.5 Inch LCD TFT Resistive Touch Screen 240×320 262K Color ODM
3.5 Inch LCD TFT Resistive Touch Screen 240×320 262K Color ODM
Specifications
Brand Name :
HongYu
Model Number :
HC305240320
Certification :
CE.FCC.ROHS,CCC
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Size :
3.5inch
Resolution :
240(horizontal)*320(Vertical)
LCM (W x H x D) (mm) :
64(H)×85(V) ×4.41(D) mm
Active Area(mm) :
53.64(H)×71.52(V) mm
Viewing Angle :
40/45/55/40 (Typ.)(CR≥10)
Interface Type :
60 pins Parallel RGB (1 ch, 6-bit) + SPI , Connector
Description

3.5 Inch LCD TFT Resistive Touch Screen 240×320 262K Color ODM

3.5 inch LCD Display Screen with Touch Screen

Product Description

General Features
Diagonal Size 3.5 inch Type a-Si TFT-LCD , LCM
Active Area 53.64(H)×71.52(V) mm Outline Dim. 64(H)×85(V) ×4.41(D) mm
Pixel Format 240(RGB)×320 Treatment Hard coating
Luminance 115 cd/m² (Typ.) Contrast Ratio 150:1 (Typ.) (TM)
6.5:1 (Typ.) (RF)
View Direction 6 o'clock Response Time 35 (Typ.)(Tr+Td)
Viewing Angle 40/45/55/40 (Typ.)(CR≥10) Operating Mode ECB, Normally White, Transflective
Support Color 262K Light Source WLED [6S1P] , 10K hours , W/O Driver
Configuration RGB Vertical Stripe Designed For Handheld & PDA
Frame Rate - Touch Panel 4-wire Resistive Touch
Interface Type 60 pins Parallel RGB (1 ch, 6-bit) + SPI , Connector
Power Supply 2.8/2.8V (Typ.)(IOVCC/VCC)
Environment Operating Temperature: -20 ~ 60 °C ; Storage Temperature: -30 ~ 70 °C

This product is our standard product, used in Android tablet computers, video players, catering equipment, CNC control and other display panels. All products can provide touch panels, PCBA solutions and complete machine solutions. Products can be made according to customer requirements Customization; if you have any questions about the product, please contact us as soon as possible, we will serve you wholeheartedly, thank you!
