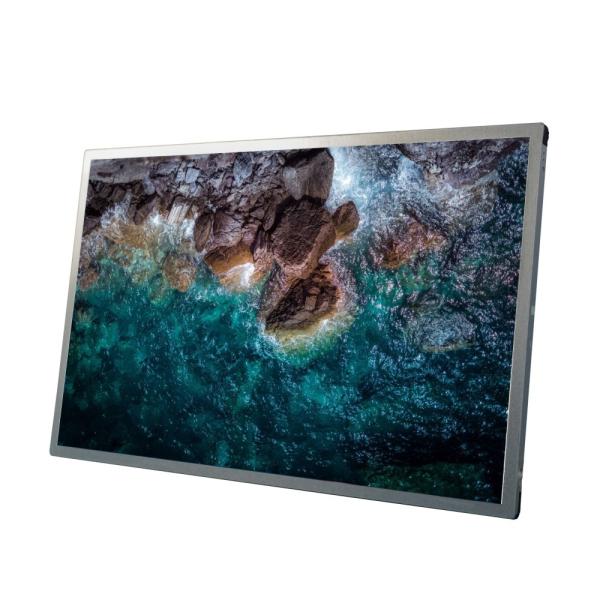

UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen
Specifications
Brand Name :
HongYu
Model Number :
HY23838602140
Certification :
CE.FCC.ROHS,CCC
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Size :
23.8inch
Resolution :
3840(RGB)*2160 , UHD
Backlit Lifetime :
50000hrs
Display Color :
545(W)*323.4(H)*12.5(D) mm
Active Area(mm) :
527.04(W)*296.46(H) mm
Brightness :
300 cd/m² (Typ.)
Contrast Ratio :
1000:1 (Typ.) (TM)
Description

UHD 4k 23.8Inch Industrial LCD Display Panel 3840x2160 For Advertising Screen

4k UHD 23.8 inch lcd display panel 3840x2160 display 30 pin edp connector ips lcd panel for desktop advertising screen

Product Description

General Features
Screen Size 23.8 inch Screen Type a-Si TFT-LCD , LCM
Pixel Number 3840(RGB)×2160 , UHD Arrangement RGB Vertical Stripe
Active Area 527.04(W)×296.46(H) mm Outline Dim. 545(W)×323.4(H)×12.5(D) mm
Bezel Area 530.2(W)×299.6(H) mm Contrast Ratio 1000:1 (Typ.) (TM)
Luminance 300 cd/m² (Typ.) Response Time 14 (Typ.)(G to G)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Work Mode ADS, Normally Black, Transmissive
Good View at Symmetry Treatment Antiglare (Haze 25%), Hard coating (3H)
Color Depth 1.07B 99% sRGB Backlight 14S4P WLED , 30K hours , Without Driver
Weight 2.30Kgs (Typ.) Used for Desktop Monitior, TV Screen, Outdoor Adversiting Screen
Frame Rate 60Hz Touch Screen Optional
Interface Type eDP (4 Lanes) , 30 pins , Connector
Power Supply 10.0V (Typ.)
Environment Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C


4k UHD 23.8 inch lcd display panel 3840x2160 display 30 pin edp connector ips lcd panel for desktop advertising screen

This product is our standard product, used in Android tablet computers, video players, catering equipment, CNC control and other display panels. All products can provide touch panels, PCBA solutions and complete machine solutions. Products can be made according to customer requirements Customization; if you have any questions about the product, please contact us as soon as possible, we will serve you wholeheartedly, thank you!

After-sales services:

1. We provide customer service through Skype, phone or email, supply you video or drawing to solve problems.

2. We provide remote control service through internet to achieve real time service, which will short time of solving problems.

3. We have professional engineer customer to keep fastly reply.

Why choose us?

1. We have a professional team with more than 15 years of TFT-LCD work experience.

2. A strong team of designers and sales team.

3. Own the professional skill and updated machine.

4. All-round after sales services can be provided to our clients.
