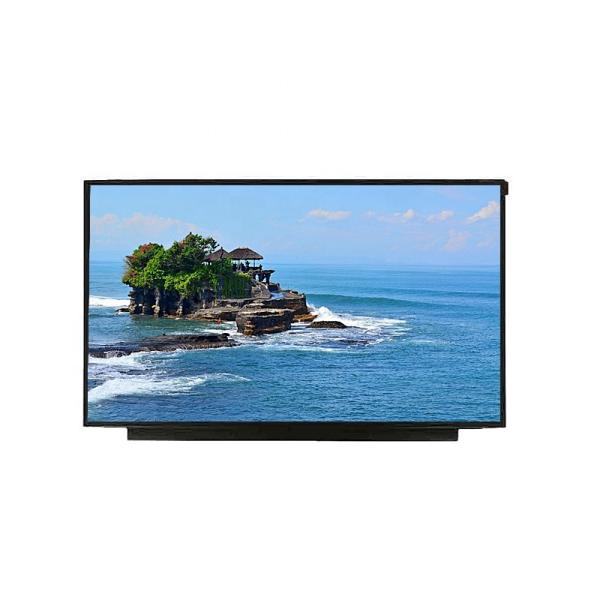

18.5 Inch Flat Lcd Panel Display Anti Explosion 1366*768 Pixel
18.5 Inch Flat Lcd Panel Display Anti Explosion 1366*768 Pixel
18.5 Inch Flat Lcd Panel Display Anti Explosion 1366*768 Pixel
18.5 Inch Flat Lcd Panel Display Anti Explosion 1366*768 Pixel
Specifications
Brand Name :
HongYu
Model Number :
HY185-E10-Z
Certification :
CE.FCC.ROHS,CCC
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Size :
18.5inch
Resolution :
1366*768 pixel
Backlit Lifetime :
50000hrs
Display Color :
16.7M colors (RGB 6-bits +Hi-FRC data)
Active Area(mm) :
409.8*230.4mm
Brightness :
1000cd/m2
Description

18.5 Inch Flat Lcd Panel Display Manufacturers

Product Description

Lens features

Shape : Irregular and hole

Color: Silk printing, Logo

Glass Materials: Glass, PMMA

Treatments: AG, AR, AF, Anti-explosion

Thickness: 0. 55mm.0.7mm

1.0mm, 1.1mm, 1.8mm, 2.omm,

3.0mm, 4. 0mm, 5. 0mm, 6.0mm

tem: 18.5.'' high brightness LCD panel
Model : HY185-E10-Z
Screen Size: 18.5 inches
Display Area: 409.8*230.4mm
Panel Type : High brightness LCD with WLED
Configuration: RGB Vertical Stripe
Resolution: 1366*768 pixel
Brightness: 1000nits
Constrast Ratio: 1000:1 (Typ.) (TM)
Pixel Pitch 0.264(per one triad) × 0.264
Driver Elements: TFT-LCD
Surface Treatment: Anti-glare type, Hardness 3H
Display Color: 16.7M colors (RGB 6-bits +Hi-FRC data)
Display Mode: Normally White
Interface Type: LVDS
Input Voltage: DC12V
Power : 23W
Weight: 1.8kg
Backlit Lifetime: 50000hrs
Operating Temp.: 0°- 60°C
Storage Temp.: -20°- 60°C

18.5 inch flat lcd panel display manufacturers

This product is our standard product, used in Android tablet computers, video players, catering equipment, CNC control and other display panels. All products can provide touch panels, PCBA solutions and complete machine solutions. Products can be made according to customer requirements Customization; if you have any questions about the product, please contact us as soon as possible, we will serve you wholeheartedly, thank you!

1, We provide a full range of products and services,Comprises display screen and touch screen,

Technical support and customization.

2, Our production capacity is 30000 pieces per day,1million pieces per month.

3, The R&D team has more than 10 years of development and design experience.

4, The production quality team has more than 10 years of experience in production quality

management,strictly in accordance with the ISO9001 management sytem,products meet Rosh

certification.

5, Professional after-sales team at any time to provide services to customers.
