3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive
Specifications
Brand Name :
HongYu
Model Number :
3.5-inch display module
Certification :
CE.FCC.ROHS,CCC
Place of Origin :
China
MOQ :
5 pcs
Price :
negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
10Kpcs/month
Delivery Time :
7-15 working days
Packaging Details :
Standard export package
Size :
3.5-inch
Brightness :
300~1000nit adjustable
Resolution :
320*480
Pixel Configuration :
R.G.B. Vertical Stripe
Display Mode :
Transmissive / Normally white
Description

3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive

3.5inch TN 12 O'Clock 320x480 RGB Touch Lcd Display Module With RTP Resistive Touch Panel

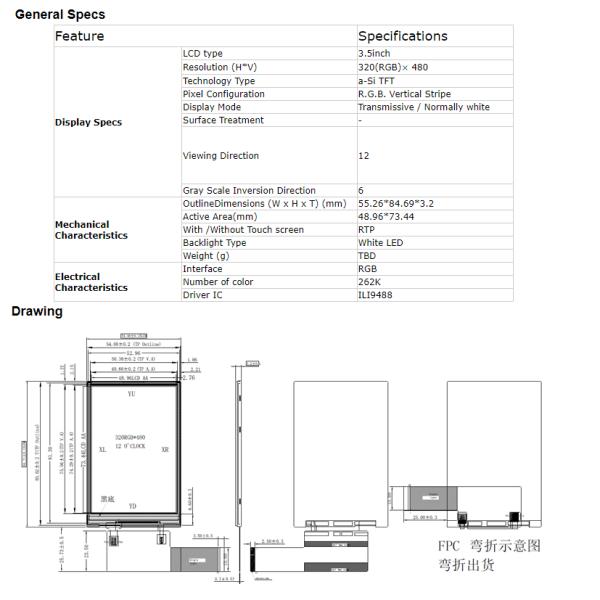

Product specifications

he body is thin and saves space. Compared with the more bulky CRT monitor, the LCD monitor only needs one third of the space of the former;

1 Physical Parameter
2 Model HY03050002
3 Size (Inch) 3.5"
4 Resolution 320×RGB×480
5 Color 65536 colors (16 bit)
6 Viewing Area 48.96*73.44
7 Pixel Configuration R.G.B. Vertical Stripe
8 Outline Dimension 55.26*84.69*3.20
9 Net Weight 85 g(N)/ 100 g(T)
10 TFT Panel A+ Class Industry Panel
11 Touch Screen Industry Level 4 wire resistance Or without touch screen is optional.
12 Backlight Parameter
13 Backlight Type LED
14 Brightness 300cd/m2
15 Contrast 500:1
16 Backlight life 30,000 hours
17 Viewing Angle 70°/ 70°/ 50°/ 70° (L/R/U/D)
18 Working Temperature -20°C ~ +70°C
19 Working Humidity 55°C, 85%
20 Storage Temperature -30°C ~ +85°C
21 Screen Mode Digital
22 Test Report
23 MTBF 50,000H
24 Working Temperature -20°C ~ +70°C
25 Air Humidity 60°C, 90%
26 Continuous Vibration Testing 10-55Hz, 1.5mm, 10G
27 Impact Acceleration Testing 6ms, 100G
28 ESD Testing 10KV
29 Radiation Reliability Testing 44W

Q: How to ensure long-term stable delivery?

A: First,we will recommend products that can be delivered for a long time to customers,and second,we will have a large number of stocks in advance for a long time.

Q: What is your mode of payment for mass production?

A: Generally,after receiving 50%-100% deposit from customers,they begin to prepare materials. Delivery is about 5 working days after receipt of the final payment.

Q: Will you inspect the goods before delivery?

A: Yes, we’ll ship the goods after 100% inspection.

Q: How long is your warranty period?

A: We guarantee the quality for one year.


3.5inch 320x480 RGB Industrial Touch Screen Panel RTP Resistive

3.5inch TN 12 o'clock 320x480 RGB touch lcd display module with RTP resistive touch panel

3.5-inch display module. The product range is wide, suitable for calculators, small instruments, medical equipment, small equipment control panels, etc. Products can be customized according to customer requirements; if you have any questions about the products, please contact us as soon as possible, we will serve you wholeheartedly, thank you
