WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel
Specifications
Brand Name :
NEC
Model Number :
NL8060BC31-47D
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
NL8060BC31-47D
SIZE :
12.1INCH
Resolution :
1024*768
Brightness :
450cd/m²
Backlight :
WLED
View angle :
80/80/80/60
Description

12.1inch 450cd/m² WLED 60Hz frame 1024*768 Industrial LCD PANEL (NL8060BC31-47D)Operating Temp.: -30 ~ 70 °C

NL8060BC31-47D is NEC 12.1inch INDUSTRIAL LCD panel , the resolution is1024*768 ;Brightness is 450cd/m² High ; wide view angle is 80/80/80/60 ; Frame is 60Hz ; Backlight is WLED ;70Khours working time. the Storage Temp.: -30 ~ 80 °C and Operating Temp.: -30 ~ 70 °C.

It is Used for Industrial monitor,Medical imaging products ;industrial display products.

  • Specification Details :

Manufacturer NEC Model Namel NL8060BC31-47D
Screen Size 12.1INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1024(RGB)×768 (XGA) Response Time 3/15 (Typ.)(Tr/Td) ms
Active Area(mm) 246(W)×184.5(H) mm Arrangement RGB Vertical Stripe
Bezel Area(mm) 249.0 × 187.5 (H×V) Outline(mm) 280(W)×210(H) ×9.6(D) mm
Luminance 450 cd/m² (Typ.) Treatment Clear , Hard coating (3H)
Viewing Angle 80/80/80/60 (CR≥10 Contrast Ratio 600:1 (Typ.) (TM)
Good View at 6 o'clock Work Mode TN, Normally White, Transmissive
Color Depth 262K/16.7M 40% (CIE1931) Signal Type LVDS (1 ch, 6/8-bit) , Connector , 20 pins
Frame Rate 60Hz Voltage Supply 3.3V (Typ.)
Max. Ratings Storage Temp.: -30 ~ 80 °C Operating Temp.: -30 ~ 70 °C Backlight 3 strings WLED , 70K hours , Without Driver
Used for Industrial application Touch screen without

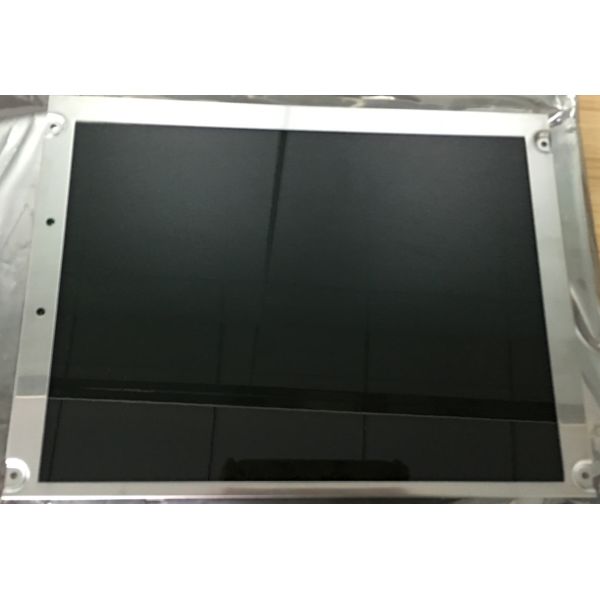

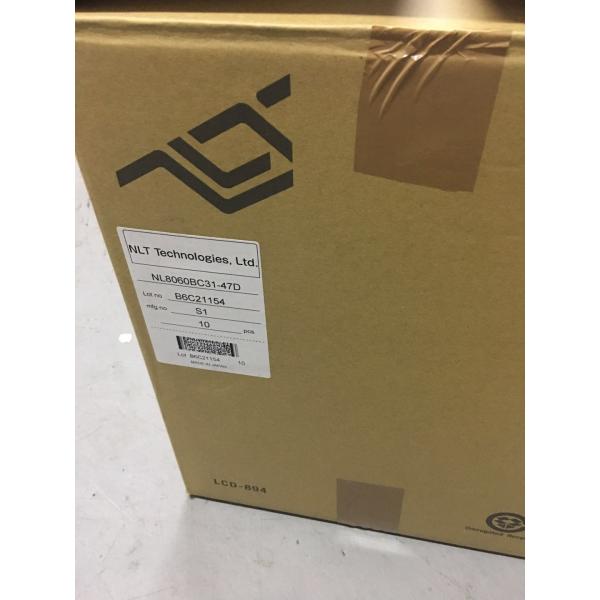

  • Pics of the Original 12.1inch Industrial LCD panel NL8060BC31-47D

WLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor PanelWLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor PanelWLED 12.1'' Industrial Display Screens , NL8060BC31 - 47D LCD Monitor Panel

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
