Specifications
Brand Name :
LG
Model Number :
LM240WU8-SLA2
Place of Origin :
CHINA
MOQ :
10PCS
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
LM240WU8-SLA2
SIZE :
24INCH
Resolution :
1920*1080
Brightness :
300cd/m²
Backlight :
WLED
View angle :
89/89/89/89
Price :
Negotiable
Description

UH-IPS LCD PANEL 24inch Medical LCD PANEL LM240WU8-SLA2 Resolution1920*1080

60Hz frame LG IPS 24inch AH- IPS Mdeical LCD panel LM240WU8-SLA2, the resolution is1920*1080

Brightness is 300cd/m²; Whole view angle is89/89/89/89 ;

It is Used for Medical Inustrial Machine ,advertising machine,inudstiral monitor,etc

  • Specification Details :

Manufacturer LG Model Namel LM240WU8-SLA2
Screen Size 24INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1920*1080(RGB) , WXGA Response Time 14 (Typ.)(G to G);
Active Area(mm) 518.4 × 324 (H×V) Arrangement RGB Vertical Stripe
Bezel Area(mm)
522.4 × 328.0 (H×V)		 Outline(mm)
546.4 × 352 × 15(H×V×D)
Luminance 300 cd/m² (Typ.) Treatment Antiglare (Haze 25%), Hard coating (3H)
Viewing Angle 89/89/89/89Min.)(CR≥10 Contrast Ratio 1000:1 (Typ.) (TM)
Good View at Symmetry Work Mode UH-IPS, Normally Black, Transmissive
Color Depth 16.7M Signal Type LVDS (2 ch, 8/10-bit) , 30 pins , Connector
Frame Rate 60Hz Voltage Supply 12.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C Backlight WLED , 30K hours , No Driver
Used for Medical machine ;industrial monitor Touch screen without

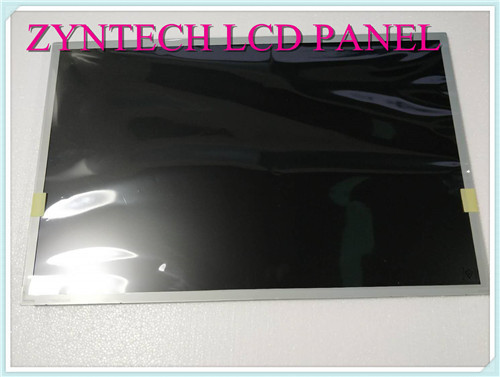

  • Pics of the Original 24inch IPS Medical LCD panel LM240WU8-SLA2

LVDS UH - IPS LCD Monitor Panel , 14ms Response LM240WU8-SLA2 24 LCD PanelLVDS UH - IPS LCD Monitor Panel , 14ms Response LM240WU8-SLA2 24 LCD Panel

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
