NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle
NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle
NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle
NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle
Specifications
Brand Name :
AUO
Model Number :
G150XG01 V1
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
10PCS/DAY
Delivery Time :
1-3workingdays
Packaging Details :
15 pcs / box ;
SIZE :
15INCH
Resolution :
1024*768
Brightness :
350cd/m²
Backlight :
2PCS CCFL
View angle :
80/80/70/60
Model name :
G150XG01 V1
Description
  • Introduction of the Original 15.0 inch industrial LCD Panel G150XG01 V1

It is New A grade panel, Wide view angle (80/80/70/60) ,brightness 350cd/m², 15inch ,resoultion is 1024*768 ,a-si TFT LCD. It is used fro industrial monitor, medical machine ,ATM , POS machine etc industial application .

  • Specification details

Manufacturer INNOLUX Model Namel G150XG01 V1
Screen Size 15.0INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1024(RGB)×768 , XGA Response Time 5.7/2.3 (Typ.)(Tr/Td)
Active Area(mm) 304.128(W)×228.096(H) mm Arrangement RGB Vertical Stripe
Bezel Area(mm)
326.5(W)×253.5(H) ×9.6(D) mm		 Outline(mm) 307.4(W)×231.3(H) mm
Luminance 350 cd/m² (Typ.) Treatment Antiglare, Hard coating (3H)
Viewing Angle 80/80/70/60 (CR≥10 Contrast Ratio 700:1 (Typ.) (TM)
Good View at 12 o'clock Work Mode NPVA, Normally Black, Transmissive
Color Depth 262K/16.7M 72% (CIE1931) Signal Type LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Frame Rate 60Hz Voltage Supply 3.3V (Typ.)
Max. Ratings Operating Temperature: -30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C Backlight CCFL [2 pcs] , 50K hours , W/O Driver
Used for Industrial application Touch screen without

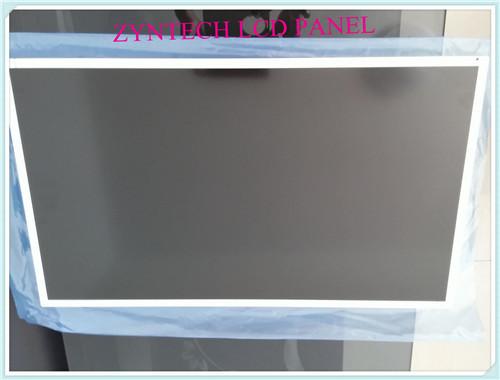

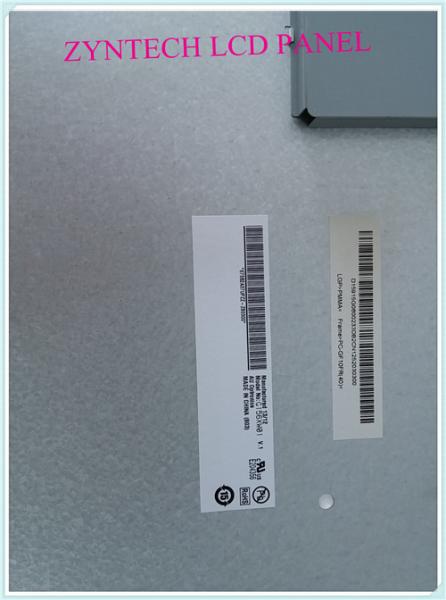

Pics of the Original 15.0 inch Inustrial lcd panel G150XG01 V1

NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle

  • SHIPPING PACKAGE STANDARDS:

NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle

  • Qaulity Control (Test Before shipment ):

NEW A GRADE 15.0 Inch G150XG01 V1 INDUSTRIAL LCD Panel 1024*768 wide view angle

  • COMPANEY SERVICE :

1.Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2.Ship parts from shenzhen or HK .

3.Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4.Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5.FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1.The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2.The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3.The product malfunction caused by the fall and transportation failures after purchase.

4.The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
