Symmetry RGB Vertical Stripe Quad HD Screen LM270WQ3-SLA1 Operating Temp 0 ~ 50°C
Symmetry RGB Vertical Stripe Quad HD Screen LM270WQ3-SLA1 Operating Temp 0 ~ 50°C
Symmetry RGB Vertical Stripe Quad HD Screen LM270WQ3-SLA1 Operating Temp 0 ~ 50°C
Symmetry RGB Vertical Stripe Quad HD Screen LM270WQ3-SLA1 Operating Temp 0 ~ 50°C
Specifications
Brand Name :
LG
Model Number :
LM270WQ3-SLA1
Place of Origin :
CHINA
MOQ :
5pcs
Payment Terms :
T/T
Delivery Time :
3-5 Workingdays
Screen Type :
LCM , a-Si TFT-LCD
Luminance :
350 cd/m² (Typ.)
Good View at :
Symmetry
Color Depth :
1.07B (Adobe)
Product Name :
Quad HD Screen
Frame Rate :
60Hz
Price :
Negotiable
Description

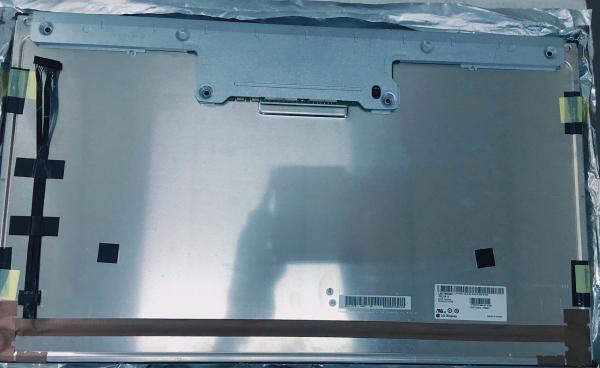

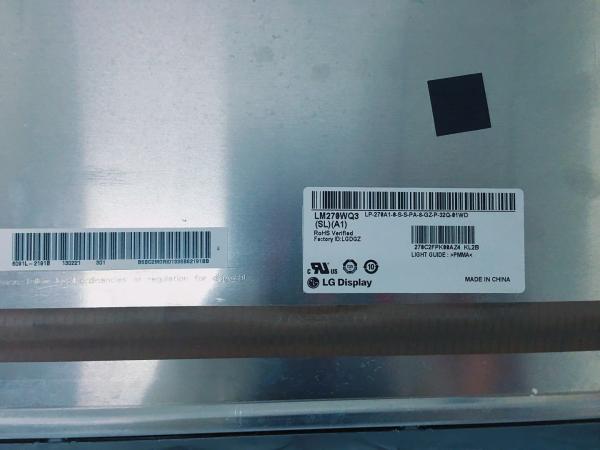

27inch QHD LCD PANEL (LM270WQ3-SLA1)

Manufacturer LG Model Name LM270WQ3-SLA1
Screen Size 27.0inch Screen Type LCM , a-Si TFT-LCD
Pixel Format 2560(RGB)×1440 [Quad-HD] Response Time 6 (Typ.)(G to G)
Active Area(mm) 596.736(H)×335.664(V) mm Arrangement RGB Vertical Stripe
Bezel Area(mm) 602.0(H)×340.4(V) mm Outline(mm) 630(H)×368.2(V) ×18.5(D) mm
Luminance 350 cd/m² (Typ.) Treatment Antiglare, Hard coating (3H)
Viewing Angle 89/89/89/89 (Typ.)(CR≥10) Contrast Ratio 1000:1 (Typ.) (TM)
Good View at Symmetry Work Mode AH-IPS, Normally Black, Transmissive
Color Depth 1.07B (Adobe) Signal Type

92 pins LVDS (4 ch, 10-bit) , Connector
Frame Rate 60Hz Voltage Supply 12.0V (Typ.)
Max. Ratings Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C Backlight GB-r LED , 30K hours , W/O Driver
Used for Desktop monitor Touchscreen Without
