Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins
Specifications
Brand Name :
AUO
Model Number :
G185XW01 V1
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
G185XW01 V.1
SIZE :
18.5INCH
Resolution :
1366*768
Brightness :
300cd/m²
Backlight :
WLED
View angle :
85/85/80/80
Description

18.5inch 60Hz frame 1366*768 INDUSTRIAL LCD PANEL G185XW01 V.1

G185XW01 V.1 is 60Hz frame 18.5inch AUO INDUSTRIAL LCD PANEL ;the resolution is 1366*768

Brightness is 300cd/m²; wide view angle 85/85/80/80 ;

Used for Medical industrial applications ; inustiral monitors ; desktop ,etc

  • Specification Details :

Manufacturer AUO Model Namel G185XW01 V1
Screen Size 18.5INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1366×768(RGB) , WXGA Response Time 3.5/1.5 (Typ.)(Tr/Td)
Active Area(mm) 409.8 × 230.4 (H×V) Arrangement RGB Vertical Stripe
Bezel Area(mm)
413.4 × 234.0 (H×V)		 Outline(mm) 430.4 × 254.6 (H×V×D)
Luminance 300 cd/m² (Typ.) Treatment Antiglare (Haze 13%), Hard coating (3H)
Viewing Angle 85/85/80/80(Min.)(CR≥10 Contrast Ratio 1000:1 (Typ.) (TM)
Good View at - Work Mode TN, Normally White, Transmissive
Color Depth 16.7M

68% (CIE1931)

 Signal Type LVDS (1 ch, 8-bit),Connector , 30 pins
Frame Rate 60Hz Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C Backlight
WLED , 50K hours , With LED Driver
Used for Industrial application ,medical machine etc Touch screen without

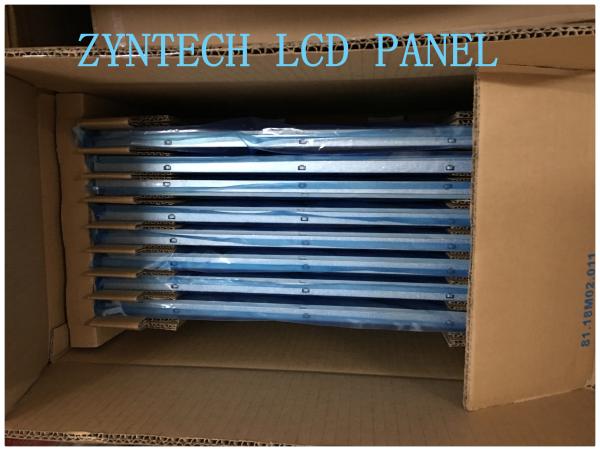

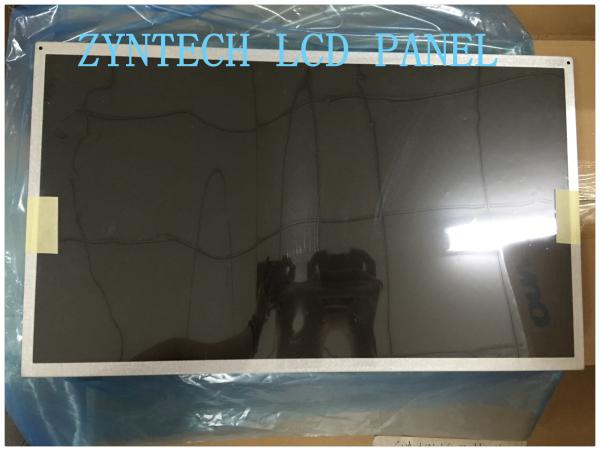

  • Pics of the Original 18.5inch AUO Inustrial lcd panel G185XW01 V.1

Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 PinsAntiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins

Antiglare AUO Lcd Monitor Panel 1366*768 G185XW01 V.1 Connector 30 Pins

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
