2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768
Specifications
Brand Name :
AUO
Model Number :
G150XG03 V3
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
10PCS/DAY
Delivery Time :
1-3workingdays
Packaging Details :
15 pcs / box ;
SIZE :
15INCH
Resolution :
1024*768
Brightness :
250cd/m²
Backlight :
WLED
View angle :
85/85/80/80
Model name :
G150XG03 V3
Description

15.6inch 300cd/m² 60Hz INDUSTRIAL LCD Panel Resolution 1366*768(G156BGE-L01)

  • Introduction of the Original 15.0 inch industrial LCD Panel G150XG03 V3

It is 15inch AUO industrial Lcd panel ;Wide view angle is 85/85/80/80 ,brightness is 250cd/m², the resoultion is 1024*768 ,a-si TFT LCD. It is used fro industrial monitor, medical machine ,ATM , POS machine etc industial application .

  • Specification details

Manufacturer AUO Model Namel G150XG03 V3
Screen Size 15.0INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1024(RGB)×768 , XGA Response Time 5.7/2.3 (Typ.)(Tr/Td)
Active Area(mm) 304.128(W)×228.096(H) mm Arrangement RGB Vertical Stripe
Bezel Area(mm) 313.55(W)×237.25(H) mm Outline(mm) 326.5(W)×253.5(H) ×12(D) mm
Luminance 250 cd/m² (Typ.) Treatment Antiglare, Hard coating (3H)
Viewing Angle 85/85/80/80 (CR≥10 Contrast Ratio 700:1 (Typ.) (TM)
Good View at - Work Mode TN, Normally WHITE, Transmissive
Color Depth 262K/16.2M 60% (CIE1931) Signal Type LVDS (1 ch, 6/8-bit) , 20 pins , Connector
Frame Rate 60Hz Voltage Supply 3.3V (Typ.)
Max. Ratings Operating Temperature: -0~ 65°C ; Storage Temperature: -20 ~ 85°C Backlight 2PCS CCFL , 30K hours , Without Driver
Used for Industrial application Touch screen without

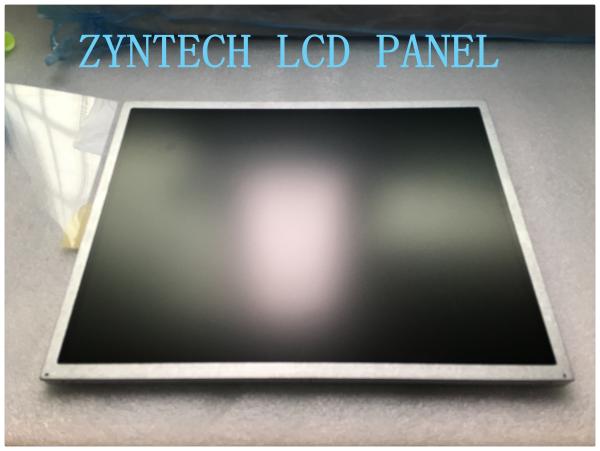

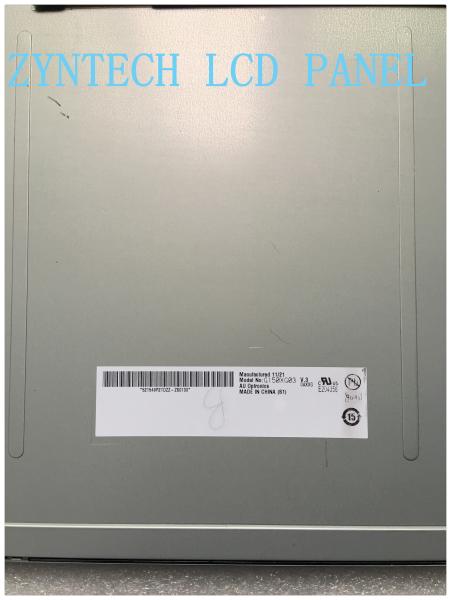

Pics of the Original 15inch AUO Inustrial lcd panel G150XG03 V3

2PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*7682PCS CCFL 15'' Industrial LCD Panel Brightness 250 cd/m² G150XG03 V.3 1024*768

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
