RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal
Specifications
Brand Name :
INNOLUX
Model Number :
G156BGE-L01
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
10PCS/DAY
Delivery Time :
1-3workingdays
Packaging Details :
15 pcs / box ;
Model name :
G156BGE-L01
SIZE :
15.6INCH
Resolution :
1366*768
Brightness :
300cd/m²
View angle :
80/80/80/80
Backlight :
WLED
Description

15.6inch 300cd/m² 60Hz INDUSTRIAL LCD Panel Resolution 1366*768(G156BGE-L01)

  • Introduction of the Original 15.6inch industrial LCD Panel G156BGE-L01

It is 15.6inch innolux industrial LCD PANEL ;view angle is 80/80/80/80 ,brightness is 300cd/m²,resoultion is 1366*768 ,a-si TFT LCD. backlight Work time last 50khours; the Operating and Temp.: 0 ~ 60 °C ; storage Temp is -20 ~ 60 °C; It is used fro industrial monitor, medical machine ,ATM , POS machine etc industial application .

  • Specification details

Manufacturer INNOLUX Model Namel G156BGE-L01
Screen Size 15.6INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1366(RGB)×768 , XGA Response Time 3/7Typ.)(Tr/Td)
Active Area(mm) 344.232(H)×193.536(V) mm Arrangement RGB Vertical Stripe
Bezel Area(mm) 347.53(H)×196.84(V) mm Outline(mm) 363.8(H)×215.92(V) ×17.35(D) mm
Luminance 300 cd/m² (Typ.) Treatment Antiglare, Hard coating (3H)
Viewing Angle 80/80/80/80 (Typ.)(CR≥10) Contrast Ratio 500:1 (Typ.) (TM)
Good View at - Work Mode TN, Normally White, Transmissive
Color Depth 262K/16.2M 65% (CIE1931) Signal Type LVDS (1 ch, 8-bit) , 30 pins , Connector
Frame Rate 60Hz Voltage Supply 5.0V (Typ.)
Max. Ratings Operating Temperature: 0~ 60 °C ; Storage Temperature: -20 ~ 60 °C Backlight WLED, 50K hours , With LED Driver
Used for Industrial application Touch screen without

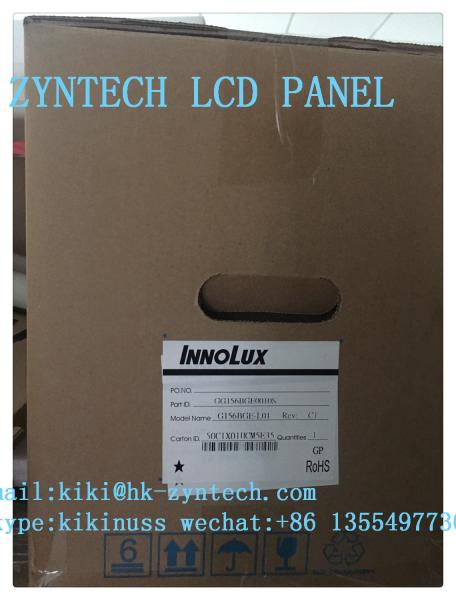

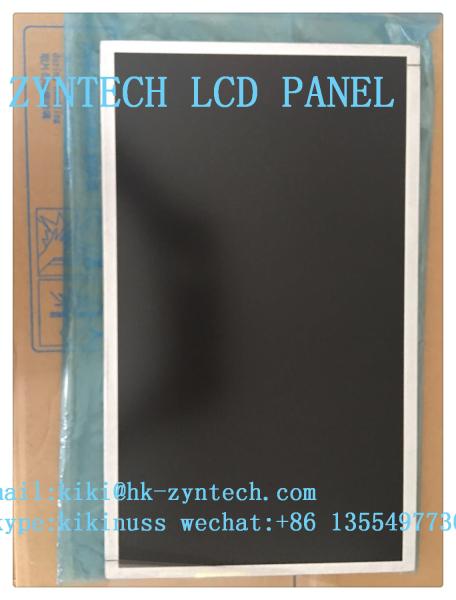

  • Pics of the Original 15.6inch Innolux Inustrial lcd panel G156BGE-L01

RGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS SignalRGB Vertical Stripe Industrial LCD Panel Hard Coating Treatment LVDS Signal

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
