60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel
Specifications
Brand Name :
AUO
Model Number :
G156XW01 V0
Place of Origin :
CHINA
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Supply Ability :
10PCS/DAY
Delivery Time :
1-3workingdays
Packaging Details :
15 pcs / box ;
SIZE :
15.6INCH
Resolution :
1366*768
Brightness :
300cd/m²
Backlight :
2PCS CCFL
View angle :
85/85/80/80
Model name :
G156XW01 V0
Description
  • Introduction of the Original 15.6inch industrial LCD Panel G156XW01 V0

It is New A grade panel, Wide view angle (85/85/80/80) ,Hight brightness 300cd/m², 15.6inch ,2PCS CCFL ,resoultion is 1366*768 ,a-si TFT LCD. It is used fro industrial monitor, medical machine ,ATM , POS machine etc industial application .

  • Specification details

Manufacturer AUO Model Namel G156XW01 V0
Screen Size 15.6INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1366(RGB)×768 , XGA Response Time 6/2 (Typ.)(Tr/Td)
Active Area(mm) 344.232(H)×193.536(V) mm Arrangement RGB Vertical Stripe
Bezel Area(mm)
347.54(H)×196.83(V) mm		 Outline(mm) 363.8(H)×215.9(V) ×17.35(D) mm
Luminance 300 cd/m² (Typ.) Treatment Antiglare, Hard coating (3H)
Viewing Angle 85/85/80/80 (CR≥10 Contrast Ratio 500:1 (Typ.) (TM)
Good View at Symmetry Work Mode TN, Normally White, Transmissive
Color Depth 16.7M 65% (CIE1931) Signal Type LVDS (1 ch, 8-bit) , 30 pins , Connector
Frame Rate 60Hz Voltage Supply 5.0V (Typ.)
Max. Ratings Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C Backlight 2PCS CCRL, 50K hours , Without Driver
Used for Industrial application Touch screen without

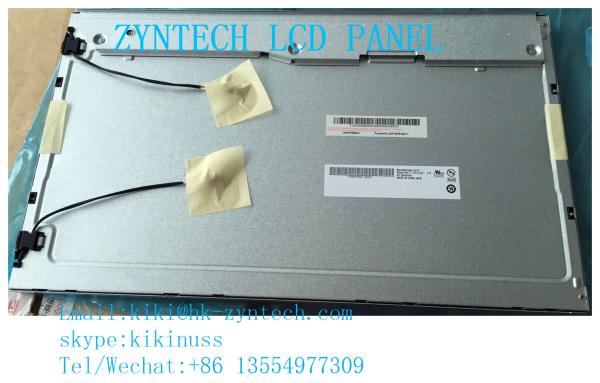

Pics of the Original 15.6 inch Inustrial lcd panel G156XW01 V0

60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel

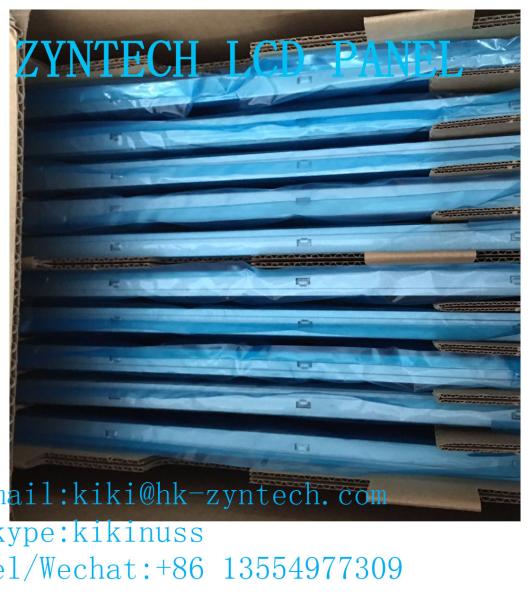

  • SHIPPING PACKAGE STANDARDS:

60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel

  • Qaulity Control (Test Before shipment ):

60HZ 15.6 Inch G156XW01 V0 1366×768 2CCFL INDUSTRIAL LCD Panel

  • COMPANEY SERVICE :

1.Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2.Ship parts from shenzhen or HK .

3.Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4.Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5.FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1.The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2.The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3.The product malfunction caused by the fall and transportation failures after purchase.

4.The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
