Specifications
Brand Name :
CHIMEI INNOLUX
Model Number :
M270HGE-L30
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
M270HGE-L30
SIZE :
27INCH
Resolution :
1920*1080
Brightness :
300cd/m²
Backlight :
WLED
View angle :
85/85/80/80
Description

27inch 300cd/m²1920*1080 Monitor LCD PANEL (M270HGE-L30)

M270HGE-L30 is 60Hz frame CHIMEI INNOLUX 27inch Monitor LCD panel , the resolution is1920*1080

Brightness is 300cd/m²; wide view angle is 85/85/80/80 ;

It is Used for Desktop ,advertising machine,monitors etc

  • Specification Details :

Manufacturer CHIMEI INNOLUX Model Namel M270HGE-L30
Screen Size 27INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1920*1080(RGB) , WXGA Response Time 1.5/3.5 (Typ.)(Tr/Td)
Active Area(mm)
597.888(W)×336.312(H) mm
Arrangement RGB Vertical Stripe
Bezel Area(mm) 603.9(H)×342.3(V) mm Outline(mm) 630(H)×368.2(V) ×14.6(D) mm
Luminance 300 cd/m² (Typ.) Treatment Antiglare (Haze 25%), Hard coating (3H)
Viewing Angle 85/85/80/80 Contrast Ratio 1200:1 (Typ.) (TM)
Good View at 6 o'clock Work Mode TN, Normally White, Transmissive
Color Depth 16.7M Signal Type LVDS (2 ch, 8-bit) , 30 pins , Connector
Frame Rate 60Hz Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C Backlight WLED 40K hours , W/O Driver
Used for Desktop,Monitors Touch screen without

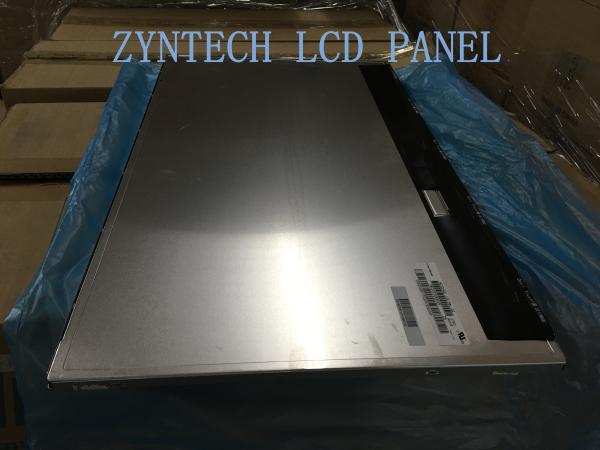

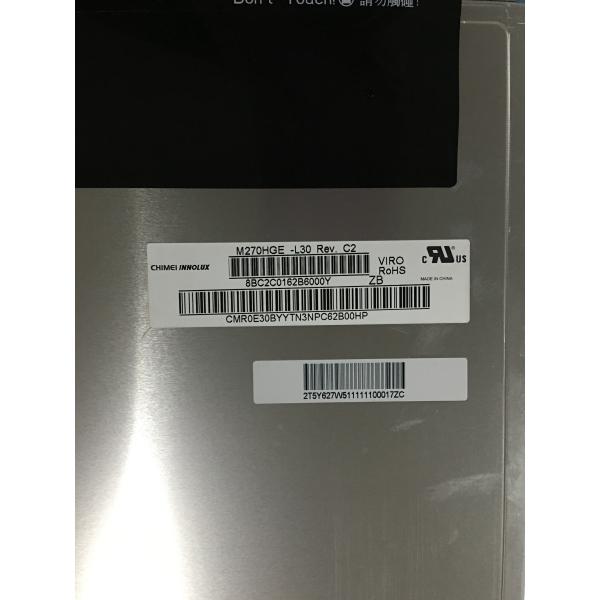

  • Pics of the Original 27inch CHIMEI INNOLUX Monitor LCD panel M270HGE-L30

WXGA Monitor LCD Panel 27'' Hard Coating 300cd/m² M270HGE-L30 LVDS ConnectorWXGA Monitor LCD Panel 27'' Hard Coating 300cd/m² M270HGE-L30 LVDS Connector

WXGA Monitor LCD Panel 27'' Hard Coating 300cd/m² M270HGE-L30 LVDS Connector

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
