Specifications
Brand Name :
AUO
Model Number :
M190PW01 V8
Place of Origin :
CHINA
MOQ :
10PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
M190PW01 V8
SIZE :
19INCH
Resolution :
1440*900
Brightness :
250cd/m²
Backlight :
WLED
View angle :
85/85/80/80
Description

19inch 1440*900 Brightness 250cd/m² Monitor LCD PANEL M190PW01 V8

M190PW01 V8 is 60Hz frame 19.0inch Monitor LCD panel, the resolution is1440*900

Brightness is 250cd/m²; Whole view angle is 85/85/80/80 ;

It is Used for Desktop ,monitor, etc

  • Specification Details :

Manufacturer AUO Model Namel M190PW01 V8
Screen Size 19.0INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1440*900(RGB) , WXGA Response Time 3.6/1.4 (Typ.)(Tr/Td) ms
Active Area(mm)
408.24(W)×255.15(H) mm
Arrangement RGB Vertical Stripe
Bezel Area(mm) 412.2(W)×259.2(H) mm Outline(mm) 428(W)×278(H) ×10.8(D) mm
Luminance 250 cd/m² (Typ.) Treatment Antiglare (Haze 25%), Hard coating (3H)
Viewing Angle 85/85/75/85 Contrast Ratio 1000:1 (Typ.) (TM)
Good View at - Work Mode TN, Normally White, Transmissive
Color Depth 16.7M Signal Type LVDS (2 ch, 8bit) , 30 pins , Connector
Frame Rate 60Hz Voltage Supply 5.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C Backlight WLED
Used for Desktop, Monitor Touch screen without

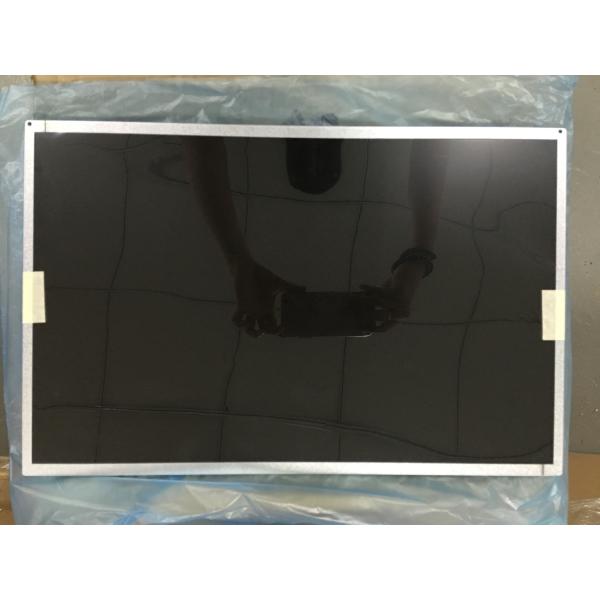

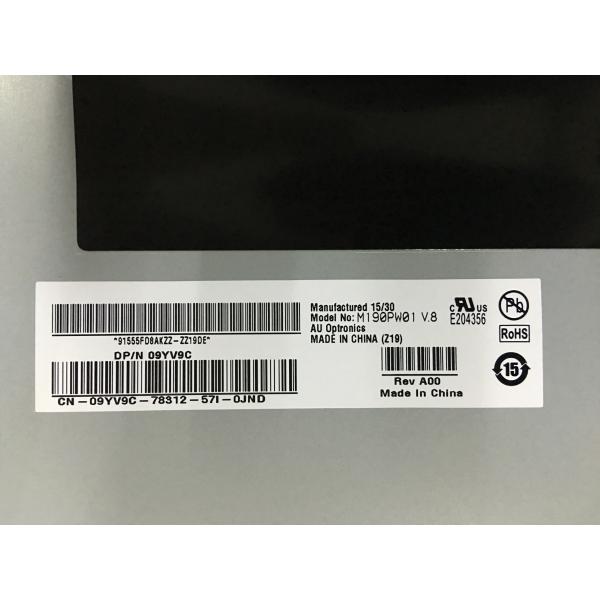

  • Pics of the Original 19inch AUO Monitor LCD panel M190PW01 V8

19inch Monitor LCD Panel 1440*900 Brightness 250cd/m² M190PW01 V8 Antiglare19inch Monitor LCD Panel 1440*900 Brightness 250cd/m² M190PW01 V8 Antiglare

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
