Specifications
Brand Name :
LG
Model Number :
LD420EUB-SDA1
Place of Origin :
CHINA
MOQ :
5PCS
Price :
Negotiable
Payment Terms :
T/T, T/T
Delivery Time :
1-3workingdays
Packaging Details :
Orignal package
Partno. :
LD420EUB-SDA1
SIZE :
42INCH
Resolution :
1920*1080
Brightness :
450cd/m²
Backlight :
WLED
View angle :
89/89/89/89
Description

High Brightness 450cd/m² 42inch TV LCD PANEL LD420EUB-SDA1 Resolution1920*1080

LD420EUB-SDA1 ,it is 60Hz frame LG 42inch INDUSTRIAL LCD panel , the resolution is1920*1080 ;

Brightness is 450cd/m²; Whole view angle is 89/89/89/89 ; Landscape and potrait double display

It is Used for Video Wall ; TV Sets ,advertising outside, Digital signage etc

  • Specification Details :

Manufacturer LG Model Namel LD420EUB-SDA1
Screen Size 42INCH Screen Type LCM , a-Si TFT-LCD
Pixel Format 1920*1080(RGB) , WXGA Response Time 12 (Typ.)(G to G);
Active Area(mm) 930.24 × 523.26 (H×V) Arrangement RGB Vertical Stripe
Bezel Area(mm) 938.6 × 531.5 (H×V) Outline(mm) 958.2 × 551.1 × 28.65 (H×V×D)
Luminance 450 cd/m² (Typ.) Treatment Antiglare (Haze 11%), Hard coating (3H)
Viewing Angle 89/89/89/89Min.)(CR≥10 Contrast Ratio 1300:1 (Typ.) (TM)
Good View at Symmetry Work Mode IPS, Normally Black, Transmissive
Color Depth 16.7M 72% (CIE1931) Signal Type LVDS (2 ch, 8/10-bit) , 51 pins , Connector
Frame Rate 60Hz Voltage Supply 12.0V (Typ.)
Max. Ratings Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~ 50 °C Backlight WLED , 50K hours , With Led Driver
Used for

Video Wall;TV SETS ,advertising outside

Digital signage

Touch screen without

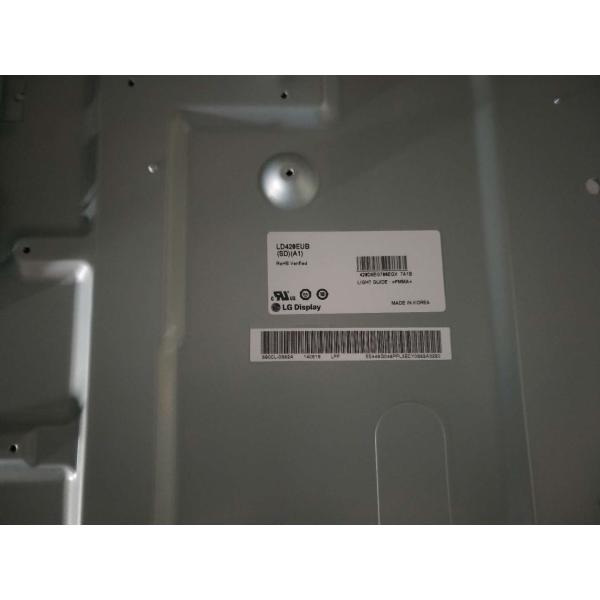

  • Pics of the Original 42inchTV lcd panel LD420EUB-SDA1

FHD WLED FOR TV LCD TV Panel LD420EUB-SDA1 Resolution 1920*1080 450cd/m² Brightness

  • COMPANEY SERVICE :

1. Have our own stock ,kinds of panels . Fast reply RFQ immediately .

2. Ship parts from shenzhen or HK .

3. Safe transportation: Fast and safe transportation that ensures safety of your merchandise.

4. Technology advancement: Professional field applicatoin engineers (FAE) act as your exclusive technical consultant.

5. FQA :

PAYMENT : T/T ,Western union

Shipment : DHL ,FEDEX , TNT,UPS ,Sea , Air shipment etc.

Delivery time : 1-3 working days upon payment.

  • Quality Assurance of Display Panel

Products can replace free within 10 days after customers Delivered-Signed if it cannot use due to the quality problems, in the precondition of non-artificial damage. We pay for the freight only for the replacement delivery.

The warranty time is 3-12 months. Within Warranty period, products under serviceable,we will offer the repair service for free,customers afford the cost of the parts. Customers afford the freight.

Even if within the warranty period, if the following occurs, the repair service is not available.

1. The malfunction and damaged caused by incorrect use, the unauthorized repairs and alteration.

2. The damage caused by fire, flood, abnormal voltage, other natural disasters and secondary product damage.

3. The product malfunction caused by the fall and transportation failures after purchase.

4. The malfunction and damaged caused by the other barriers (man-made factors or external device).

Any problems in the after-sales service, please contact our agents or us directly.
