LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
Specifications
Model Number :
LM270WF7-SSA1
Place of Origin :
China
MOQ :
10
Price :
USD125-135PCS
Supply Ability :
2000
Packaging Details :

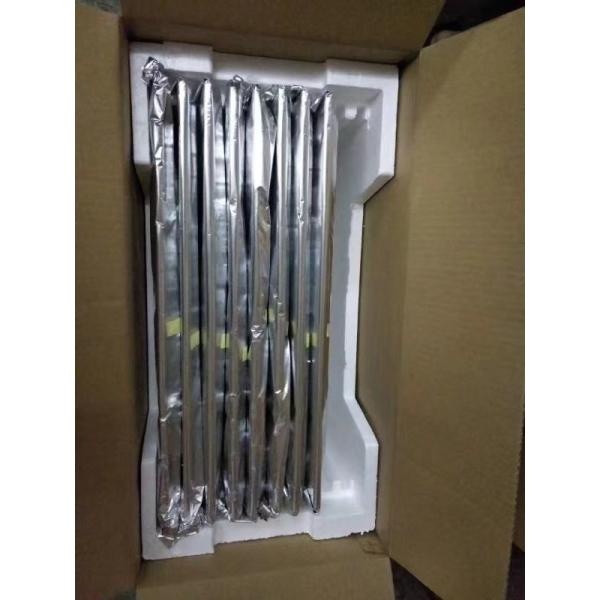

BOX SIZE:355×700×430 mm
Pixel Number :
1920*1080
Luminance :
250
Viewing Angle :
89/89/89/89 (Typ.)(CR≥10)
Signal Interface :
60hz
Work Mode :
IPS, Normally Black, Transmissive
Contrast Ratio :
1000:1 (Typ.) (TM)
Max. Ratings :
Operating Temp.: 0 ~ 50 °C ; Storage Temp.: -20 ~ 60 °C
Color Depth :
16.7M 72% (CIE1931)
Description

Panelook now have 1 datasheets of LM270WF7-SSA1 (Alias: LM270WF7 (SS)(A1)) released by LG Display Co., Ltd. (hereafter called LG Display). According to datasheet with version of Rev1.0 which was released out on 1 6 2014, LM270WF7-SSA1 supports display 1920(RGB)×1080 (FHD) with aspect ratio of 16:9 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 597.888(W)×336.312(H) mm, outline size of 607.1(W)×354.1(H)×13.7(D) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 3.20/3.36Kgs (Typ./Max.). As a IPS, Normally Black, Transmissive LCM product, LM270WF7-SSA1 can provides 250 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 14 (Typ.)(G to G) ms. Gray scale or the brightness of the sub-pixel is determined with a 8-bit gray scale signal for each dot, thus presenting a palette of 16.7M colors, also with performance of color gamut 72% (CIE1931). This product adopted 15S4P WLED as it's backlight systerm which was placed as Edge light type (Bottom side) and have a working life time of 30K hours, external backlight driver is additionally needed. LM270WF7-SSA1 utilizes LVDS (2 ch, 8-bit) as it's signal inputting systerm, which connected by 30 pins Connector with power supply voltage of 5.0V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

LM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal InterfaceLM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal InterfaceLM270WF7-SSA1 Medical Grade Display 27 Inch 1920 RGB×1080 WXGA 60hz Signal Interface
