Suspended Thin Industrial LED High Bay Lighting With 5 Years Warranty
Suspended Thin Industrial LED High Bay Lighting With 5 Years Warranty
Specifications
Brand Name :
KD LIGHTING,KODEEVIA
Model Number :
KD-LB180-CE2
Certification :
CE,RoHS,ETL,DLC,LM80,SAA
Place of Origin :
Shenzhen,China
MOQ :
5PCS
Price :
USD146.49/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
5-7 business days for samples,10 to 15 business days for bulk orders
Packaging Details :
Netural Package,color box package for option
Efficiency :
100LPW(Standard Version)/120LPW(Proline Version)/170LPW(Primeline Version)
CRI :
>83Ra
Life-span :
50,000 Hours
Junction Temperature :
<80℃
Working Environment :
-40℃ ~ +50℃
IP Rating :
IP54
Beam Angle :
120°
Description

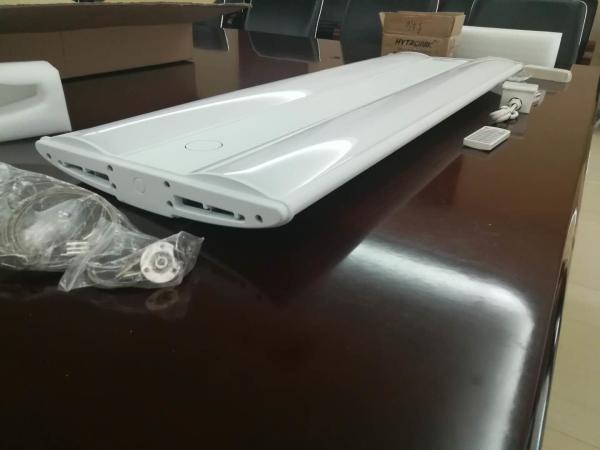

3ft/180W Linear LED High Bay Light IP54 170Lm/W suspended warehouse lighting fixture CE listed 5 years warranty

(I) Product Features:

* 180W professional smart industrial lighting fixture with 170lm/W extreme high output and 5 years guarantee;
* Adopt Meanwell driver, which is isolated away from the heat source of the LED, keeps the well stability and good performance of the driver for long life. Constructed in a heavy-duty aluminum and plastic, equipped with evenly distributed fins for quality heatsink throughout, frosted lens are fitted on the luminaire for glare prevention and maximized brightness;
* Luminaire coated in an environmentally friendly polyester powder formulated for a durable and long-lasting color in a white finish. No toxic heavy metals, VOC, or mercury were used in the design of this product;
* Adopting SMD LEDs light source, high output lighting efficiency 170LPW, high Color Rendering Index (CRI>80), excellent heat dissipation, low light decay;
* Die casting Aluminum shell, good mechanical strength and heat dissipation;
* High quality Meanwell power supply, AC90V~305V, 50/60Hz input voltage, constant current output, quick responds, no flicker, lighting protection, PFC function available;
* 1-10V, DALI dimming is available, daylight sensor for option;
* 3 installation optional;
Suspended Thin Industrial LED High Bay Lighting With 5 Years Warranty
(II) Applications:
∴ Shipyards;
∴ Mines;
∴ Workshops;
∴ Warehouse;
∴ Highway toll stations;
∴ Gas stations;
∴ Supermarkets;
∴ Exhibition center;

(III) Quick View:
* 180W/3ft, 18,000-25,200lm, IP54;
* Inputing rating: AC85-305V 50/60HZ;
* Beam Angle: 120º;
* Size: 924(L)*426(H)*113.6(D)mm;
* CE, RoHS listed,ETL,DLC pending;
* 5 years’ guarantee;

(IV) Technology Parameters:
Item No.
KD-LB180-CN2
Housing color
Silver, Black, Grey etc
Input Voltage
AC85-305V 50/60HZ
CRI
>80
Power
180W
IP Ranking
IP54
Working Temp
-20 to +45℃
Power Factor (PF)
＞0.9
Luminous Flux
18,000-25,200lm
Material
Die-cast Aluminum
LED QTY
180PCS
Light Source
SMD5050
Beam Angle
120º
LED Efficiency
170LPW
CCT
2700-6500K
Certificate
CE, RoHS,ETL,DLC
Dimension
924(L)*426(H)*113.6(D)mm
Warranty
5 years
Weight
11.6Kg
Driving Brand
Sosen/Meanwell
(V) Delivery and Payment Details:
Delivery
Delivery Time
5-7 working days for sample orders, 10-15working days for mass orders
Payment
T/T,L/C,Western Union
Payment Terms
30% T/T in advance, balance before shipment
MOQ
5PCS
(VI) Optical & Photometric Data:
Suspended Thin Industrial LED High Bay Lighting With 5 Years Warranty
(VII) Installation:
Suspended Thin Industrial LED High Bay Lighting With 5 Years Warranty
(VIII) Package:
About Package
Package Carton
Neutral Package/OEM Package
Components Included
Name
Qty”/PCS
Linear LED high bay light
1
Specification
1
Warrantee Card
1



Contact Us:
Tel: +86(0)755-2762 9722
Fax: +86(0)755-2762 9722
Email:info@kd-opto.com
Web: www.kd-opto.com
Add: 10F,Sogood Science Park, Hangkong Rd, Xixiang, Bao’an District, Shenzhen,518102, P.R. China
PC: 518 102
