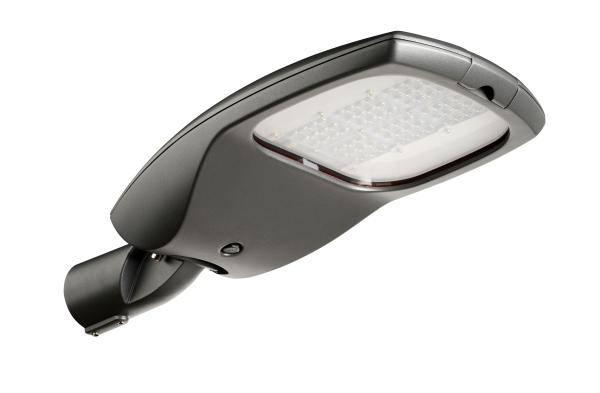

140Lm/W High Efficiency 80 Watt LED Street Light With CE ETL DLC Certificaton
140Lm/W High Efficiency 80 Watt LED Street Light With CE ETL DLC Certificaton
Specifications
Brand Name :
KD LIGHTING,KODEEVIA
Model Number :
KD-ST080-CG1
Certification :
CE,RoHS,LM80,SAA,ETL,DLC pending
Place of Origin :
Shenzhen,China
MOQ :
5PCS
Price :
USD85.96/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
5-7 business days for samples,10 to 20 business days for bulk orders
Packaging Details :
Netural Package,color box package for option
CRI :
>70Ra/<80Ra for option
Life-span :
50,000 Hours
Power Efficiency :
>92%
Junction Temperature :
<80℃
CCT :
3000K/4000K/5000K/6500K
IP Rating :
IP66
Beam Angle :
65*120°/75°*135° for option
LEDs light source :
/NICHIA SMD3030
Driver :
Meanwell/Sosen for option
Surge Protection :
10KV/5KA
Description

80W Intelligent LED Street Light IP66 140Lm/W super high efficiency efficiency IP66 CE ETL DLC listed 5 years warranty

(I) Product Features:

* 80W 140lm/W super high output intelligent lighting fixture for high end street lighting, at least 80% energy saving;
* Professional design shell body with a high mechanical strength, meanwell, Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling;
* Air-flow through heat sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;
* Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms accommodates safety and stability. Capable of being adjusted the degree of ±45°;
* Processional optics design,Type III Medium(90°x140°),Type III Short 90°x120°,Type V 120°,Type II 80°x135° for option;
* Top brand conponents, LUMILEDS LEDs light source,Meanwell/SOSEN driver,durable;
* Adopting SMD3030/5050 LEDs light source, high output lighting efficiency 100-130lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;.
* Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly;
* Tool-less access to the down-opening driver door makes easy maintenance and operation;
* Intelligent dimming control available,photocell controller is available;
* Maintenance Free,IP66 protection,IK10 vibration grade;
* LM-79/80 reports available;
* CE,RoHS listed,UL/CUL pending,5 years’ warranty.
140Lm/W High Efficiency 80 Watt LED Street Light With CE ETL DLC Certificaton

140Lm/W High Efficiency 80 Watt LED Street Light With CE ETL DLC Certificaton
(II) Applications:
∴ Roadways;
∴ Avenues;
∴ Walkways;
∴ Loading Area;
∴ Parking lot.
∴ Playground;
∴ Sport and Stadium;

(III) Quick View:
* 80W, 11,200lm±5%, IP65;
* Inputing rating: AC90-305V 50/60HZ;
* Beam Angle: 65*120°/75°*135° for option;
* Size: 535(L)*260(H)*128(D)mm;
* CE, RoHS,LM80,ETL,DLC,SAA pending;
* 5 years guarantee;


(IV) Technology Parameters:

Item No.
KD-ST080-CG1
Housing color
Silver, Black, Grey etc
Input Voltage
AC90-305V 50/60HZ
CRI
>70/80Ra for option
Power
80W
IP Ranking
IP66
Working Temp
-20 to +45℃
Power Factor (PF)
＞0.9
Luminous Flux
11,200lm±5%
Material
Die-cast Aluminum
LED QTY
48PCS
Light Source
SMD3030
Beam Angle
65*120°/75°*135° for option
LED Efficiency
100LPW(Standard Version)/130LPW(Proline Version)
CCT
2700-6500K
Certificate
CE, RoHS,LM80,ETL,DLC,SAA for option
Dimension
535(L)*260(H)*128(D)mmmm
Warranty
5 years
Weight
8.7Kg
Driving Brand
Sosen/Meanwell
(V) Delivery and Payment Details:
Delivery
Delivery Time
5-7 working days for sample orders,10-15working days for mass orders
Payment
T/T,L/C,Western Union
Payment Terms
30% T/T in advance,balance before shipment
MOQ
5PCS
(VI) Optical & Photometric Data:
140Lm/W High Efficiency 80 Watt LED Street Light With CE ETL DLC Certificaton
(VII) Package:
About Package
Package Carton Neutral Package/OEM Package
Components Included Name Qty”/PCS
LED Street Light 1
Specification 1
Warrantee Card 1



Contact Us:
Tel: +86(0)755-2762 9722
Fax: +86(0)755-2762 9722
Email:info@kd-opto.com
Web: www.kd-opto.com
Add: 10F,Sogood Science Park, Hangkong Rd, Xixiang, Bao’an District, Shenzhen,518102, P.R. China
PC: 518 102
