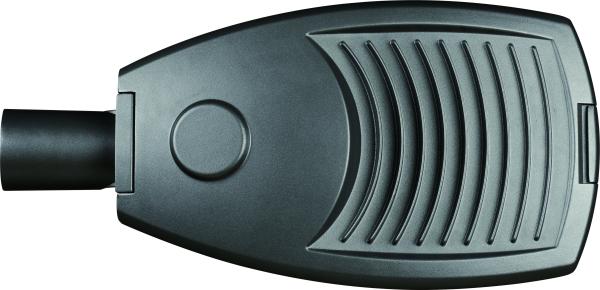

ETL DLC Listed 150W LED Street Light Intelligent Shoe Box LED Light IP66
ETL DLC Listed 150W LED Street Light Intelligent Shoe Box LED Light IP66
Specifications
Brand Name :
KD LIGHTING,KODEEVIA
Model Number :
KD-ST150-CG1
Certification :
CE,RoHS,LM80,SAA,ETL,DLC pending
Place of Origin :
Shenzhen,China
MOQ :
5PCS
Price :
USD141.28/PCS
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10000PCS/Month
Delivery Time :
5-7 business days for samples,10 to 20 business days for bulk orders
Packaging Details :
Netural Package,color box package for option
Input :
AC90-305V,50/60Hz
CRI :
>70Ra/<80Ra for option
Life-span :
50,000 Hours
Junction Temperature :
<80℃
Working Environment :
-40℃ ~ +50℃
CCT :
3000K/4000K/5000K/6500K
Beam Angle :
65*120°/75°*135° for option
LEDs light source :
/NICHIA SMD3030
Driver :
Meanwell/Sosen for option
Surge Protection :
10KV/5KA
Description

150W Intelligent LED Street Light 140Lm/W super high efficiency IP66 CE RoHS ETL DLC listed 5 years warranty​

(I) Product Details:

* Maintenance Free,IP66 protection,IK10 vibration grade and 10KV lightning proction, super long life span and very low cost for maintenance;
* Professionally designed Air-flow system management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris or dust build-up and minimizes wind loading;
* Dual-hoop mounting system fitted to 40-60mm (O.D.) mast-arms accommodates safety and stability. Capable of being adjusted the degree of ±45°;
* Top brand conponents, LUMILEDS LEDs light source,Meanwell/SOSEN driver,durable;
* Adopting SMD3030/5050 LEDs light source, high output lighting efficiency 100-130lm/W, high Color Rendering Index (CRI>70/80Ra), excellent heat dissipation,low light decay;.
* Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD purchasing for local assembly;
* Tool-less access to the down-opening driver door makes easy maintenance and operation;
* Intelligent dimming control available,photocell controller is available;
* LM-79/80 reports available;
* CE,RoHS listed,UL/CUL pending,5 years’ warranty.
ETL DLC Listed 150W LED Street Light Intelligent Shoe Box LED Light IP66

ETL DLC Listed 150W LED Street Light Intelligent Shoe Box LED Light IP66
(II) Applications:
∴ Roadways;
∴ Avenues;
∴ Walkways;
∴ Loading Area;
∴ Parking lot.
∴ Playground;
∴ Sport and Stadium;

(III) Quick View:
* 150W, 21,000lm±5%, IP65;
* Inputing rating: AC90-305V 50/60HZ;
* Beam Angle: 65*120°/75°*135° for option;
* Size: 765(L)*381(H)*131(D)mm;
* CE, RoHS,LM80,ETL,DLC,SAA pending;
* 5 years guarantee;


(IV) Technology Parameters:

Item No.
KD-ST150-CG1
Housing color
Silver, Black, Grey etc
Input Voltage
AC90-305V 50/60HZ
CRI
>70/80Ra for option
Power
150W
IP Ranking
IP66
Working Temp
-20 to +45℃
Power Factor (PF)
＞0.9
Luminous Flux
21,000lm±5%
Material
Die-cast Aluminum
LED QTY
72PCS
Light Source
SMD3030
Beam Angle
65*120°/75°*135° for option
LED Efficiency
100LPW(Standard Version)/130LPW(Proline Version)
CCT
2700-6500K
Certificate
CE, RoHS,LM80,ETL,DLC,SAA for option
Dimension
765(L)*381(H)*131(D)mmmm
Warranty
5 years
Weight
10.8Kg
Driving Brand
Sosen/Meanwell
(V) Delivery and Payment Details:
Delivery
Delivery Time
5-7 working days for sample orders,10-15working days for mass orders
Payment
T/T,L/C,Western Union
Payment Terms
30% T/T in advance,balance before shipment
MOQ
5PCS
(VI) Optical & Photometric Data:
ETL DLC Listed 150W LED Street Light Intelligent Shoe Box LED Light IP66
(VII) Package:
About Package
Package Carton Neutral Package/OEM Package
Components Included Name Qty”/PCS
LED Street Light 1
Specification 1
Warrantee Card 1
