Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
Specifications
Brand Name :
KD LIGHTING,KODEEVIA
Model Number :
KD-AL320-BG1
Certification :
CE,RoHS,ETL,DLC,LM80
Place of Origin :
Shenzhen,China
MOQ :
10PCS
Price :
US185.65/PCS
Payment Terms :
L/C, Western Union, T/T
Supply Ability :
30000PCS/Month
Delivery Time :
5-15 business days
Packaging Details :
Netural Package,color box package for option
Efficiency :
130LPW
CRI :
>70Ra
Life-span :
50,000 Hours
Power Efficiency :
>92%
Junction Temperature :
<80℃
Working Environment :
-40℃ ~ +50℃
Beam Angle :
90°x140°/90°x120°/V 120°/80°x135° for option
LEDs light source :
SMD3030
Description

5 years warranty 320W LED Area Light 130Lm/W super high efficiency IP65 outdoor security Lighting ETL DLC CE listed

(I) Product Features:
* Long life span; Intelligent dimming control available, photocell controller is available; ETL,DLC,CE, RoHS listed, 5 years’ warranty.
* High reliability and stability Maintenance Free, IP66 protection, IK10 vibration grade; LM-79/80 reports available, L70 more than 60,000 hours;
* Rugged die-cast aluminum housing with corrosion resistant hardware, super durable powder coating finish withstand extreme climate changes without cracking or peeling;
* Ingenious sink design provides perfect heat management, lighter but stronger construction. Smooth and glossy processing with natural clean system prevents debris build-up and minimizes wind loading;
* Modular design optimizes construction and assembly, allows for easy maintenance, upgrade and SKD for local assembly.;
* 90*120°professional wide site lighting optic design, Type III Medium(90°x140°), Type III Short 90°x120°, Type V 120°, Type II 80°x135° for option;
* Top brand conponents, LUMILEDs LEDs light source, Inventronics driver, durable;
* Adopting SMD3030 LEDs light source, high output lighting efficiency 130LPW, high Color Rendering Index (CRI>80), excellent heat dissipation, low light decay;.
* Tool-less access to the down-opening driver door makes easy maintenance and operation;
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting

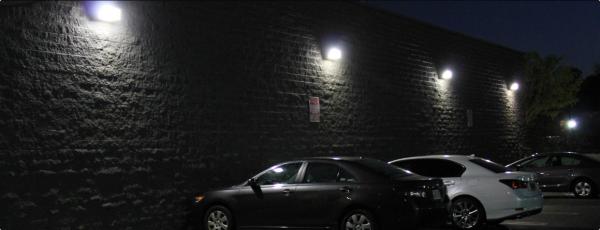

(II) Applications:
∴ Roadways;
∴ Avenues;
∴ Walkways;
∴ Loading Area;
∴ Parking lot.
∴ Playground;
∴ Sport and Stadium;

(III) Quick View:
∴ 320W, 38,400-41,600lm, IP65;
∴ Inputing rating: AC100-277AC /AC250-528V 50/60HZ
∴ Beam Angle: Type Ⅱ,Ⅲ,Ⅳ,Ⅴoptics for option;
∴ Size: 430(L)*430(H)*84(D)mm;
∴ ETL,DLC,CE,RoHS;
∴ 5 years guarantee;

(IV) Technology Parameters:
Item No.
KD-AL320-BG1
Housing color
Silver, Black, Grey etc
Input Voltage
AC100-277AC /AC250-528V 50/60HZ
CRI
>70Ra
Power
320W
IP Ranking
IP65
Working Temp
-20 to +45℃
Power Factor (PF)
＞0.9
Luminous Flux
38400-41600lm
Material
Die-cast Aluminum
LED QTY
80PCS
Light Source
SMD3030
Beam Angle
Type Ⅱ,Ⅲ,Ⅳ,Ⅴ for option
LED Efficiency
130LPW
CCT
2700-6500K
Certificate
CE, RoHS, ETL,DLC
Dimension
430(L)*430(H)*84(D)mm
Warranty
5 years
Weight
11.3Kg
Driving Brand
MEANWELL/SOSEN
(V) Delivery and Payment Details:
Delivery
Delivery Time
5-7 working days for sample orders,10-15working days for mass orders
Payment
T/T,L/C,Western Union
Payment Terms
30% T/T in advance, balance before shipment
MOQ
10PCS
(VI) Optical & Photometric Data:
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
(VII) Installation:
Outdoor Security LED Area Light 320W Corrosion Resistant Outside Area Lighting
(VIII) Package:
About Package
Package Carton
Neutral Package/OEM Package
Components Included
Name
Qty”/PCS
LED area light
1
Specification
1
Warrantee Card
1
