Monitoring Metal Plastic Digital Ultrasonic Thickness Gauge Portable Design
Monitoring Metal Plastic Digital Ultrasonic Thickness Gauge Portable Design
Specifications
Brand Name :
HTTS
Model Number :
UTG310
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20SETS/WEEK
Delivery Time :
5-8 work days
Packaging Details :
export carton
Model :
310
Measuring Range :
0.75mm~300.0mm
Accuracy :
±0.5%
Description

Digital ultrasonic thickness gauge for monitoring metal & plastic thickness online

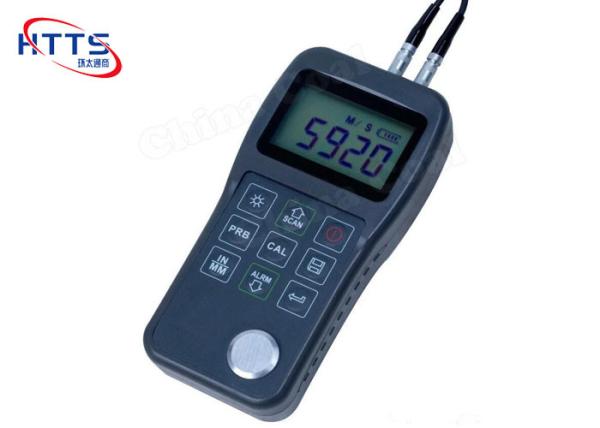

Monitoring Metal Plastic Digital Ultrasonic Thickness Gauge Portable Design

INTRODUCTION

Ultrasonic Thickness Gauge 310 is a new generation of intelligent ultrasonic thickness gauge, using the latest high performance and low power consumption microprocessor technology, based on the principle of ultrasonic measurement, to measure the thickness of metal, glass, ceramics and other materials, and the materials of sound velocity measurement. Is widely used in all kinds of plate, pipe wall thickness, the boiler container wall thickness, all kinds of pipeline and pressure vessel, thickness measurement, monitor them in the process of using the degree of corrosion after thinning.

FEATURES

  • Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
  • Can be equipped with a variety of different frequency, chip size, double crystal probe use.
  • Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
  • Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.With functions of coupling status alerts.
  • LED backlight display, convenient to use in dark environment.
  • Digital ultrasonic thickness gauge for monitoring metal & plastic thickness online

SPECIFICATION

Measuring range: 0.75mm~300.0mm(0.03inch~11.8inch)
Units: Metric/Imperial unit seletable
Sound Velocity Range:

1000m/s~9999m/s(0.039~0.394in/μs
Display resolution:

0.01mm or 0.1mm(lower than 100.0mm)

0.1mm(more than 99.99mm)
Accuracy: ±(0.5%Thickness+0.04)mm,depends on Materials and conditions
Data Memory:

5 files(up to 100 values for each file)of stored values

5 Sound Velocity of stored values
Power Source: 2pcs 1.5V AA size,batteries.100 hours typical operating time(LED backlight off)
Outline Dimensions: 150mm*74mm*32mm

COMPANY INFORMATION

  • We are professional factory of measuring equipment, and our products have a high market occupancy in domestic market.
  • Competitive price - As a profesional and experianced manufacturer, we know the market very well.
  • Good quality - Our products have been largely used in different fields in China, and own a good reputation.
  • Professional service - We will offer specific guidance for you and your market.
  • Strong product-Digital ultrasonic thickness gauge for monitoring metal & plastic thickness online
