LDM - 10B Non Contact Laser Diameter Gauge , Laser Diameter Measuring Device 0.1-10MM
LDM - 10B Non Contact Laser Diameter Gauge , Laser Diameter Measuring Device 0.1-10MM
Specifications
Brand Name :
HTTS
Model Number :
LDM-10B
Certification :
ISO
Place of Origin :
CHINA
MOQ :
1 SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20 sets / week
Delivery Time :
5-8 work days
Packaging Details :
export carton packing
Model :
LDM-10B
Measuring range :
0.1000~10mm
Color :
AS Photo
Type :
Measurement Tool
Material :
metal
Power :
220V(50Hz)
Description

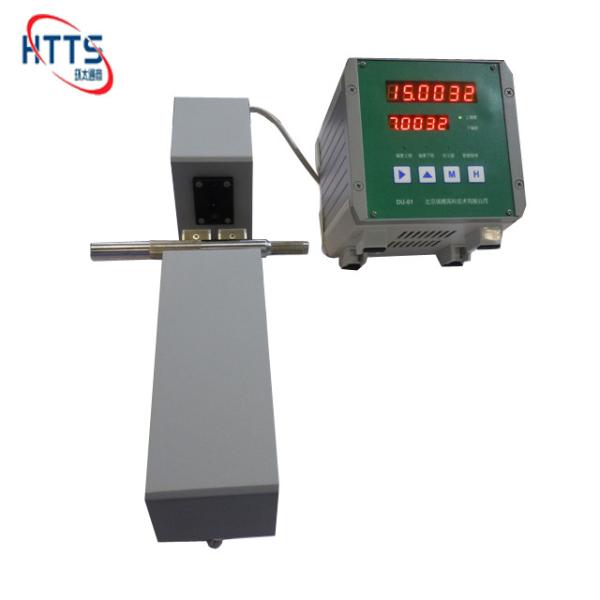

Laser for Gauging LDM-10B Non-Contact Laser for Gauging 0.1-10MM

Introduction

* Suitable for online measurement of various type ofwire, cable, tube and pipe, 3D cable and optical cable, USB calbe and so on;

* Multi-function and free rotation operation panel;

* Built-in PID module, controlling the diameter of the object automatically;

* RS232/485, PROFIBUS DP and MODBUS interface;

* Optional quality management software, real-timerecording the diameter of the object;

* Adapting to severe environment.

Feature

  • Scanning speed:1800scan/second
  • Date processor and storage: Applying high-performance DSP processor for high-speed and high-precision calculations, and large-capacity FLASH memory for data logging.
  • Communication interface: RS232 and RS485, that can keep online detection by connecting computer or transfer the measurement records to computer.
  • LDM-10 digital diameter measuring equipment for online line diameter testing

Specification

Type Measuring range Precision Repeatability error Resolution
LDM-10B 0.100~10mm ±1μm ±1μm 0. 001mm
Our company

HTTS is a high-tech company specializing in the development, design, manufacture and sales of testing instruments. The company has a professional R & D, production, sales team and an efficient management platform. In the development process, with excellent product quality, professional technical support and perfect after-sales service, it has won recognition and praise from new and old customers. Customer satisfaction is our eternal pursuit, and excellent quality and warm and thoughtful service are our eternal promise to users! we are willing to help your business development with more high-quality products and services!

The company's main products include: laser diameter gauge, CCD diameter gauge, pipe wall thickness measurement systems, two-dimensional high-speed dimensional measuring instruments, laser displacement sensors, eddy current displacement sensors, visual defect detection systems and other non-destructive testing instruments.
