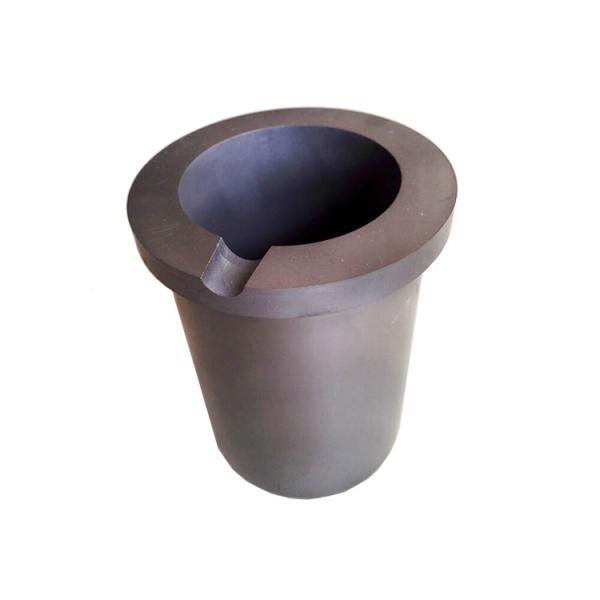

1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal
Specifications
Brand Name :
IRIS
Model Number :
IRIS-003
Certification :
ISO9000
Place of Origin :
China
MOQ :
1 pc
Price :
USD5-USD9/PC
Payment Terms :
T/T ，Credit card
Supply Ability :
1000 Pcs/Week
Delivery Time :
5-8 woking days
Packaging Details :
Paper Cartons
Product name :
Graphite Crucible For Induction Furnace Graphite Crucibles For Melting Metal
Material: :
High Pure Graphite Materials
Size: :
Difference Size Avaliable
Compress Strength: :
65-135MPa
Density: :
1.75-1.85 G/cm3
Sample: :
Support
Outside diameter :
105mm
Height :
155mm
Description

Graphite Crucible For Induction Furnace Graphite Crucibles For Melting Metal

1. Thermal stability: According to the quench acute thermal using conditions of graphite crucible, we will specially design the production procedure, so as to ensure the reliability of product quality.
2. Corrosion resistance: Even and fine basic design will delay the erosion of crucible.

3. Acid resistance: The adding of special materials will greatly improve the quality of crucible, especially its index of acid resistance., and will prolong the service life of graphite crucible.
4. High heat Conduction: High content of fixed carbon ensures the good heat conduction, shorten the time of dissolution, and remarkably reduce the energy consumption.
5. Control of metal pollution: The component of material under strict control will ensure that graphite crucible will not pollute the metals when dissolving.

1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal

Technical Parameter of the Graphite Crucible With Ceramic Sleeve /Quartz Crucibles

Name Model Outside diameter Outer diameter Inter diameter Step height Height
Graphite crucible 1kg 58mm 46mm 34mm 10mm 88mm
Graphite crucible 2kg 73mm 61mm 48mm 88mm 78mm
Graphite crucible 3kg 85mm 76mm 62mm 10mm 103mm
Graphite crucible 4kg 84mm 74.5mm 56mm 11.5mm 136.5mm
Graphite crucible 5kg 100mm 87mm 67mm 12mm 135mm
Graphite crucible 5.5kg 105mm 90mm 74mm 13mm 155mm
Graphite crucible 6kg 115mm 102mm 80mm 12mm 180mm
Graphite crucible 8kg 124mm 108mm 90mm 15mm 183mm
Quartz crucible 1kg 69mm 55mm 50mm 5mm 86mm
Quartz crucible 2kg 85mm 70mm 63mm 7.5mm 86mm
Quartz crucible 3kg 95mm 87mm 78mm 10mm 102mm
Quartz crucible 4kg 99mm 87mm 80mm 8.5mm 133mm
Quartz crucible 5kg 118mm 100mm 91mm 10.5mm 135mm
Quartz crucible 5.5kg 119mm 106mm 93mm 8mm 154mm
Quartz crucible 6kg 131mm 118mm 106mm 10mm 179mm
Quartz crucible 8kg 144mm 132mm 113mm 9mm 184mm

1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal

1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal

Crucibles we manufacture and supply:

  • High pure graphite crucible
  • Isostatic graphite crucible
  • Silicon crabide graphite crucible
  • Silicon carbide crucible
  • Clay graphite crucible
  • quartz crucible

​1.75-1.85G/Cm3 Graphite Induction Furnace Crucible For Melting Metal

Packaging&Delivery

  • All the goods will be test and packed well before shipping to avoid damage during delivery.
  • Plastic inside,Polyfoam filled,Carton Outside.
  • Usually we send the goods by express delivery such as DHL, FedEx, UPS, TNT. For a large quantity of goods, shipping by sea or by air.
