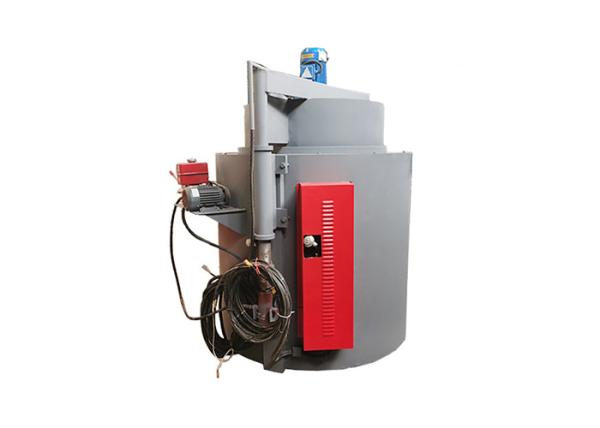

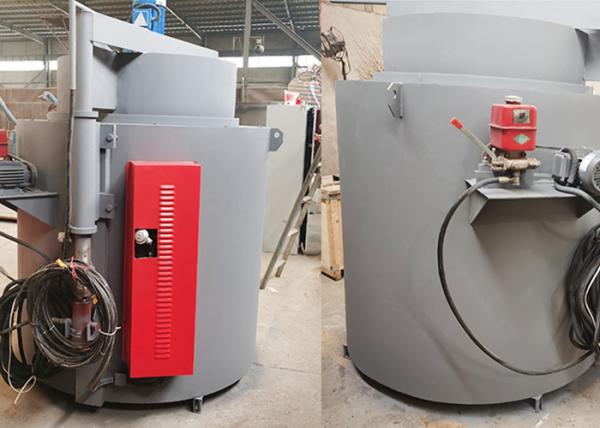

Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Steel Aluminum Heat Treatment Quenching Furnace 1600×1800×2100mm
Specifications
Brand Name :
IRIS
Model Number :
IR-QF
Certification :
CE
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD 15000-25000 per set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
500SETS per month
Delivery Time :
30 days
Packaging Details :
Container
Product name :
heat treatment quenching furnace
Temperature :
750 degree
Size :
1600×1800×2100 mm
Power :
65kw
Furnace weight :
2500 kg
Max capacity :
400kg
Description

Heat Treatment Quenching Furnace Heat Treatment Quenching Furnace Steel

Aluminum Quenching Furnace

Heat treatment quenching furnace is suitable for quenching, aging and other heat treatment

of medium and small aluminum alloy parts. Due to the particularity of the workpiece and the

process, the electric furnace is required to be in temperature control accuracy, temperature

control deviation. Heat treatment quenching furnace has high technical performance in terms

of furnace gas uniformity and so on.

Parameter

Effective size Ф700mm×1000mm
Rated power 65KW
Maximum temperature 750 ℃
Heating zones 1 zone
Temperature control intelligent instrument PID
Power executive components SSR360A/1100V solid state power module
Temperature control deviation ±2°C
Temperature control accuracy 0.3 grade
Soaking method forced convection with fan on the furnace top
Furnace temperature uniformity ≤±3℃
Rated furnace capacity ≤400Kg
Heating time of empty furnace ≤1.2h
Empty furnace loss ≤20KW
Furnace wall temperature rise ≤ ambient +30 ℃
Furnace cover lifting method hydraulic
Furnace weight 2800Kg
Dimensions 1600mm×1800mm×2100mm
