Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace
Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace
Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace
Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace
Specifications
Brand Name :
IRIS
Model Number :
IRIS-W1
Certification :
CE
Place of Origin :
China
MOQ :
1set
Price :
USD699-USD1299/set
Payment Terms :
T/T、Credit card
Supply Ability :
10 Set/Week
Delivery Time :
Within 5days
Packaging Details :
Standard export wooden box package
Product name :
Jewelry Refining Small Platinum Melting Induction Furnace
Voltage :
220V
Power :
8.5 kw
Applicable metal :
Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting time :
2 minutes
Maximum capacity :
3 kg
Size :
520*400*330mm
Weight :
20kg
Description

Jewelry Refining Small Platinum Melting Induction Furnace

Feature:

The platinum smelting furnace can reach a temperature of about 2600℃ (It is about 900℃ higher than the platinum melting point.) in no time. This is suitable for melting metals (which may be in any form such as solid, dust, scrap, ingot or powder) weighing between 1kg and 4kg in a record time of less than 5 minutes.

Platinum melting furnace is your best bet if you run a scrap metal refinery business or an old jewelry refining plant. This furnace is just the machine you need to boost your production and overall efficiency.

Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace

The parameter of the 8.5kw Platinum Melting Furnace Ceramic Crucible For Melting Platinum:

Model IRIS-w1 IRIS-B1
Power supply 220V 3 phase 380V ± 10%, 50 / 60HZ
Power 8.6 kw( adjustable) 15 kw( adjustable)
Applicable metal Platinum, Palladium, Gold, K Gold, Silver, Copper Platinum, Palladium, Gold, K Gold, Silver, Copper
Melting time 3 minutes / furnace 2 minutes / furnace
Maximum capacity 300g (Platinum) 2 kg (Platinum)
Temperature 2600℃ 2500℃
Machine size 520x400x330 mm 1180 * 680x500 mm
Machine weight 20 kg 90 kg
Heating technology IGBT induction heating IGBT induction heating
Water pump Built-in Built-in
Cooling method Water cooling Water cooling

Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace

Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace

Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace

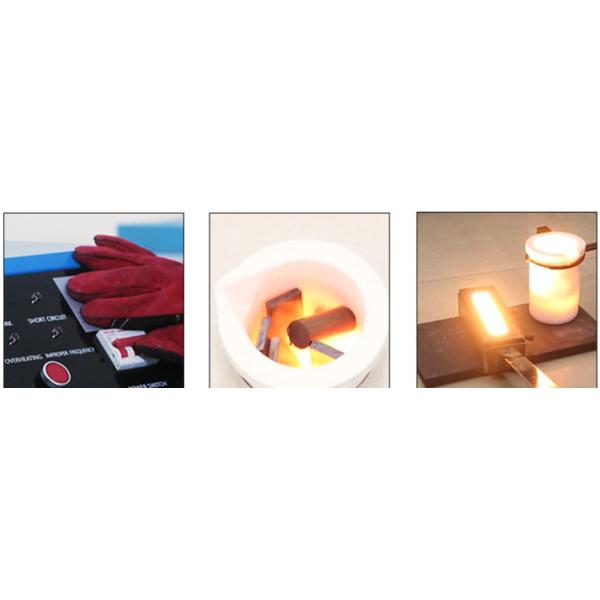

Application

Jewelry Refining Small Industrial Melting Furnace 8.5kw Platinum Melting Furnace

FQA:

1.How long is the delivery time?
The products wil be sent within 7days after the full payment.

2.What is the warranty time?
One year.

3.What are the accessories for the machine?
We will send you two induction coils for free.

4.How to install your machine?
we have installation instruction papers and videos, we will teach till you can do it yourself.

5.I still have the question , and i don't understand ...?
Please send us the inquiry , 24 hours service for you.

Tips:

1.Details of prices,pls on-line or email consulation.

2.Picture for reference only,tiny chromatic,pls take material object as the standard.

3.Welcome to illustrate your workpiece parameters,we will try our best to specifically customized for you.

Thanks for your reading ! Welcome to contact us !
