Specifications
Brand Name :
IRIS
Model Number :
IRIS-A1
Certification :
ISO9000
Place of Origin :
China
MOQ :
1set
Price :
USD4,999-USD6,999/Sset
Payment Terms :
T/T
Supply Ability :
5 Set/month
Delivery Time :
5-8 Wokring days
Packaging Details :
Standard export wooden box package
Product name :
500KG Induction Aluminum Shell Melting Furnace
Type :
Induction Furnace
Capacity :
500kg
Power :
400kw
Input Voltage :
3Φ 380V 50HZ
Electric Power Consumption :
560
Water circulation :
10t/h
Condition :
New
Description

500KG Induction Aluminum Shell Melting Furnace Copper Aluminum Melting Furnace

Induction melting furnace features:

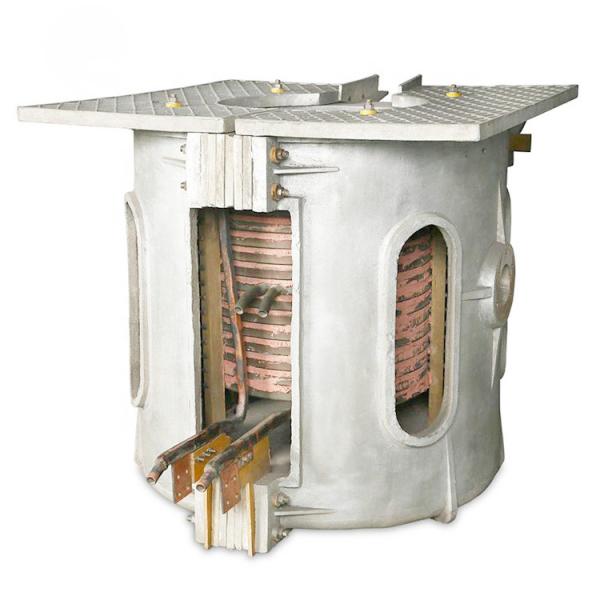

Adopting reduction gears tilting furnace device.The furnace body is made of alloy aluminum foundry casting. Simple operation, easy maintenance, convenient observation.
The aluminum shell furnace is composed of reduction gears, bracket and induction coil,etc.Mainly used for smelting cast iron, stainless steel, alloy steel, non-ferrous metals, including heavy metals (such as copper, lead) and precious metals (such as gold, silver),etc.The equipment is used in metallurgical industry, casting industry, non - metal smelting and other industries.

500KG Aluminum Shell Induction Melting Furnace Electric Furnace For Melting Brass

Power protection measures include:

  • Main circuit short circuit protection and phase protection
  • Main circuit over-current protection
  • High voltage protection of the power grid
  • Low grid voltage protection
  • Cooling water temperature protection and pressure protection,Low cooling water flow protection
  • SCR overvoltage over-current protection
  • Inverter thyristor current rise rate high protection
  • Inverter commutation time insufficient protection
  • Inverter thyristor reverse turn-off voltage insufficient protection

Technical parameter of the Induction Steel Shell Melting Furnace Aluminum Casting Furnace

Model KGPS-300 KGPS-500 KGPS-1200 KGPS-1400 KGPS-2000 KGPS-4500

Rated power

 300KW 500KW 1200KW 1400KW 2000KW 4500KW

Rated capacity

 350kg 750kg 1500kg 2000kg 3000kg 6000kg

Matching transformer’s capacity

 315KVA 630KVA 1250KVA 1800KVA 2500KVA 5500KVA

Input voltage

 380V 50-60HZ 750V 50HZ 750V 50HZ 6x750V 50HZ 6x750V 50HZ

MF frequency

 1000HZ 1000HZ 800HZ 500HZ 500HZ 300HZ

MF voltage

 750V 750V 1400V 1480V 1460V 4800V

DC voltage

 500V 500V 990V 990V 990V 1350V

DC current

 600A 1000A 1000A 1410A 1010A 3300A

Maximum temperature

 1800℃

500KG Aluminum Shell Induction Melting Furnace Electric Furnace For Melting Brass
