Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
Specifications
Brand Name :
IRIS
Model Number :
IS-04
Certification :
CE
Place of Origin :
Henan,China
MOQ :
1set
Price :
USD1500-5500 /SET
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
500SETS per month
Delivery Time :
7 days
Packaging Details :
Wooden case
Voltage :
380V 50Hz 3phase
Power :
45kw
Application :
Melting factory or personal shop
Size :
460*270*450mm
Temperature :
500-2300 degree
cooling way :
water cooled
OEM :
accepted
MOQ :
1SET
Description

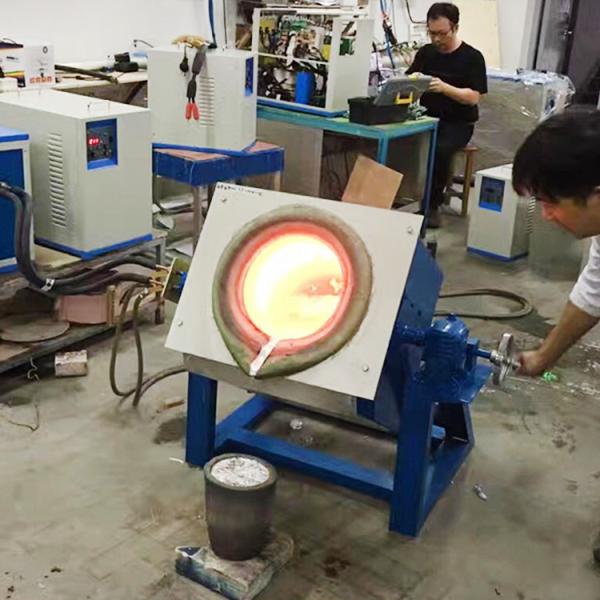

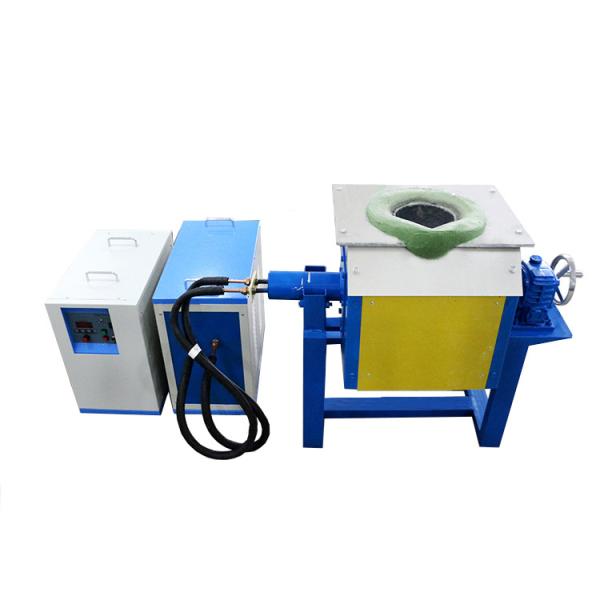

Shock resistant Blue 15kw Medium Frequency Induction iron melting furnace

The Features of medium frequency induction melting furnace:
1) Medium frequency induction melting furnace can be used for the melting of steel, stainless steel, iron, brass, copper, aluminum, gold, silver, platinum , zinc, metal alloys and so on.
2) Because of the stirring effect which caused by the magnetic force, the melting pool can be stirred during the melting course to ease the floating of the flux and oxides to produce high quality casting parts.
3) Wide frequency range from 1KHZ to 20KHZ, working frequency can be designed by changing the coil and compensating capacitor according to the melting material, quantity, stirring effect desire, working noise, melting efficiency and other factors.
4) Compared with SCR medium frequency induction furnace, it can save energy at least 20% and up.
5) Small and light weight, a lot of modes can be selected to melt different amount of metals. Not only it is suitable for the factory, but also suitable for the college and researching companies to use.
6) 24hours non-stop melting ability.
7) It's easy to change melting furnace for different capacity, different material, different way of pouring out, to suitable for all kinds of requirements.

Technical Parameters of IGBT Medium Frequency Induction Melting Furnace:

Melting furnace model Steel and stainless steel Gold, copper,silver aluminum
30kw 2kg 10kg 3kg
40kw 5kg 20kg 6kg
50kw 10kg 30kg 10kg
60kw 18kg 50kg 20kg
80kw 25kg 100kg 30kg
120kw 50kg 150kg 50kg
160kw 100kg 250kg 100kg

We Guarantee:

1. Standard wooden case packaging.

2. Foam and plastic are used for shockproof and waterproof.

Steel belt and rivets are used to fasten the wooden case.
3. The bottom pallet can bear 3 times weight than goods.

4. Delivery time: 7-25 working days

Shock Resistant Blue 15kw Induction Melting Furnace For Stainless Steel
